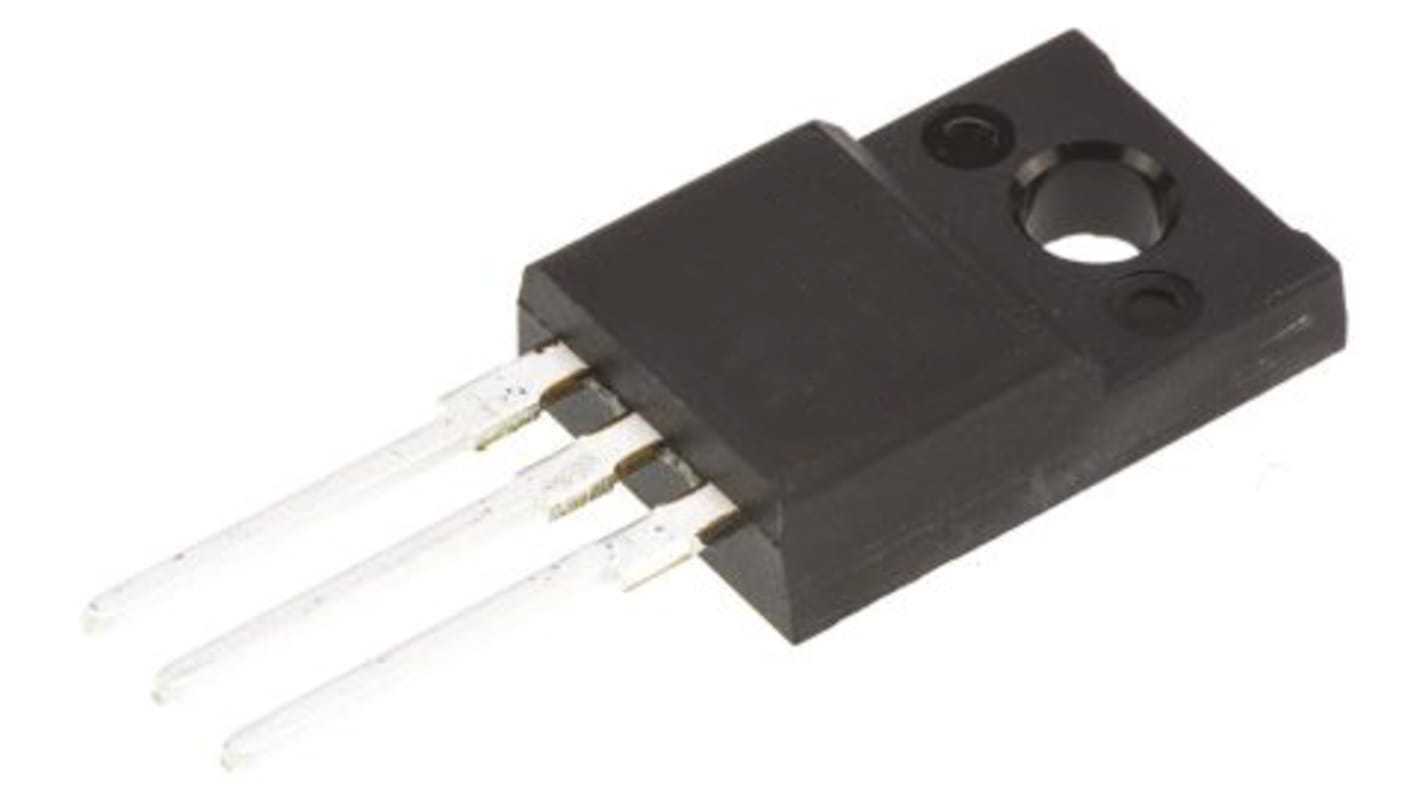

Vishay N-Channel MOSFET, 4.5 A, 100 V TO-220 FULLPAK IRFI510GPBF
- RS Stock No.:
- 256-7287
- Mfr. Part No.:
- IRFI510GPBF
- Brand:
- Vishay
Save 37% when you buy 500 units
Subtotal (1 pack of 5 units)*
£7.80
(exc. VAT)
£9.35
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 10 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 5 | £1.56 | £7.80 |
10 - 20 | £1.414 | £7.07 |
25 - 95 | £1.38 | £6.90 |
100 - 495 | £1.162 | £5.81 |
500 + | £0.974 | £4.87 |
*price indicative
- RS Stock No.:
- 256-7287
- Mfr. Part No.:
- IRFI510GPBF
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Channel Type | N | |
Maximum Continuous Drain Current | 4.5 A | |
Maximum Drain Source Voltage | 100 V | |
Package Type | TO-220 FULLPAK | |
Mounting Type | Through Hole | |
Select all | ||
---|---|---|
Brand Vishay | ||
Channel Type N | ||
Maximum Continuous Drain Current 4.5 A | ||
Maximum Drain Source Voltage 100 V | ||
Package Type TO-220 FULLPAK | ||
Mounting Type Through Hole | ||
The Vishay Semiconductor third generation power mosfets provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness. The TO-220 FULLPAK eliminates the need for additional insulating hardware in commercial-industrial applications. The molding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The FULLPAK is mounted to a heatsink using a single clip or by a single screw fixing.
Isolated package
High voltage isolation is 2.5 kVRMS
Sink to lead creepage distance is 4.8 mm
175 °c operating temperature
Dynamic dV/dt rating
Low thermal resistance
High voltage isolation is 2.5 kVRMS
Sink to lead creepage distance is 4.8 mm
175 °c operating temperature
Dynamic dV/dt rating
Low thermal resistance
