DiodesZetex DMP Type P-Channel MOSFET, 10.7 A, 12 V Enhancement, 9-Pin X2-DSN1515-9 DMP2541UCP9-7

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 10 units)*

£2.58

(exc. VAT)

£3.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,860 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 40£0.258£2.58
50 - 90£0.252£2.52
100 - 240£0.198£1.98
250 - 990£0.194£1.94
1000 +£0.158£1.58

*price indicative

Packaging Options:
RS Stock No.:
254-8622
Mfr. Part No.:
DMP2541UCP9-7
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Product Type

MOSFET

Channel Type

Type P

Maximum Continuous Drain Current Id

10.7A

Maximum Drain Source Voltage Vds

12V

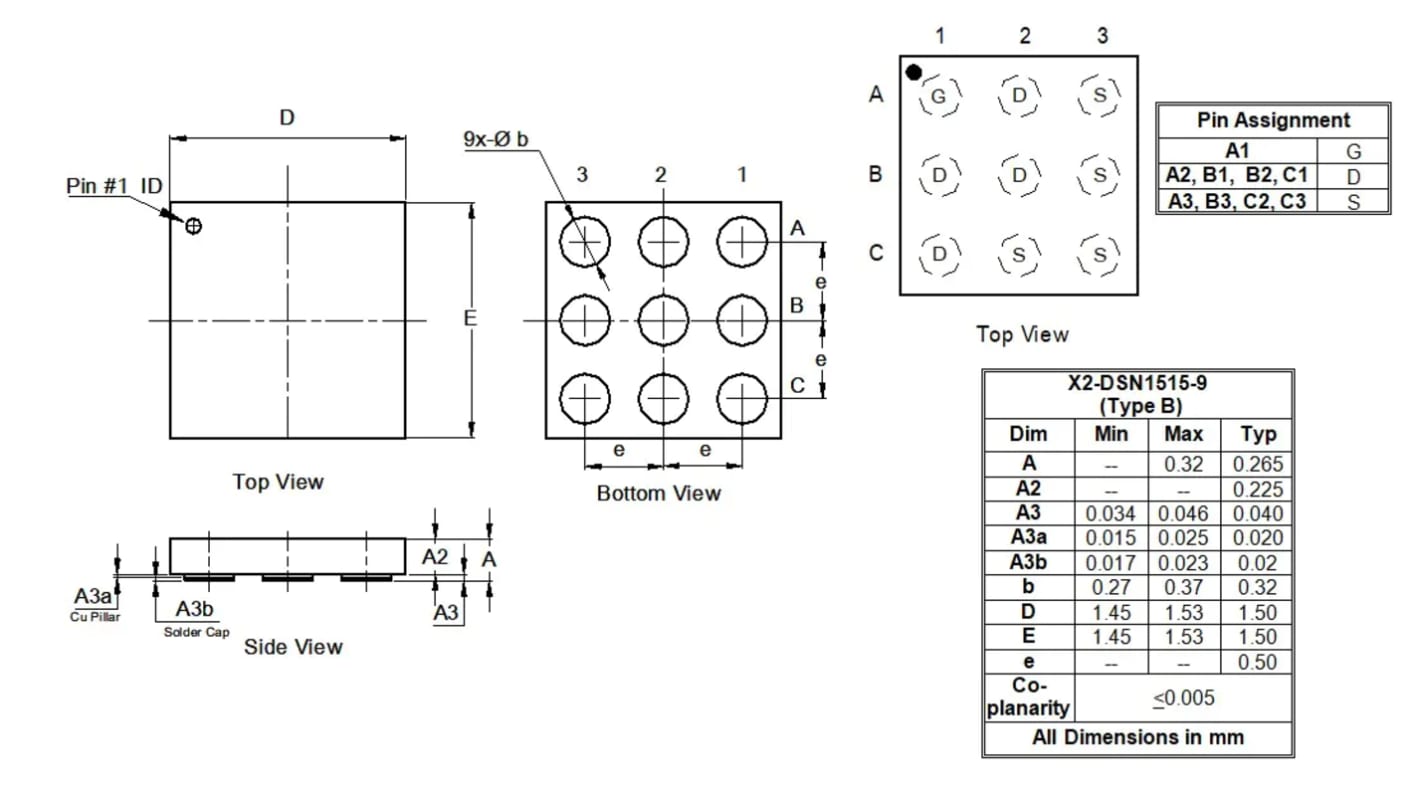

Package Type

X2-DSN1515-9

Series

DMP

Mount Type

Surface

Pin Count

9

Maximum Drain Source Resistance Rds

41mΩ

Channel Mode

Enhancement

Typical Gate Charge Qg @ Vgs

123nC

Minimum Operating Temperature

-55°C

Maximum Gate Source Voltage Vgs

8 V

Maximum Power Dissipation Pd

1.73W

Forward Voltage Vf

1.2V

Maximum Operating Temperature

175°C

Standards/Approvals

No

Length

1.53mm

Height

0.32mm

Width

1.53 mm

Automotive Standard

AEC-Q101

The DiodeZetex P channel enhancement mode MOSFET has been designed to minimize the on-state resistance yet maintain superior switching performance, making it ideal for high efficiency power management applications. It is applicable in general purpose inte

Low on resistance

Fast switching speed

Halogen and antimony Free
