DiodesZetex Type N-Channel MOSFET, -30 V X4-DSN1717-4
- RS Stock No.:
- 254-8596
- Mfr. Part No.:
- DMN2009UCA4-7
- Brand:
- DiodesZetex
Subtotal (1 reel of 3000 units)*
£768.00
(exc. VAT)
£921.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.256 | £768.00 |
*price indicative
- RS Stock No.:
- 254-8596
- Mfr. Part No.:
- DMN2009UCA4-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Drain Source Voltage Vds | -30V | |

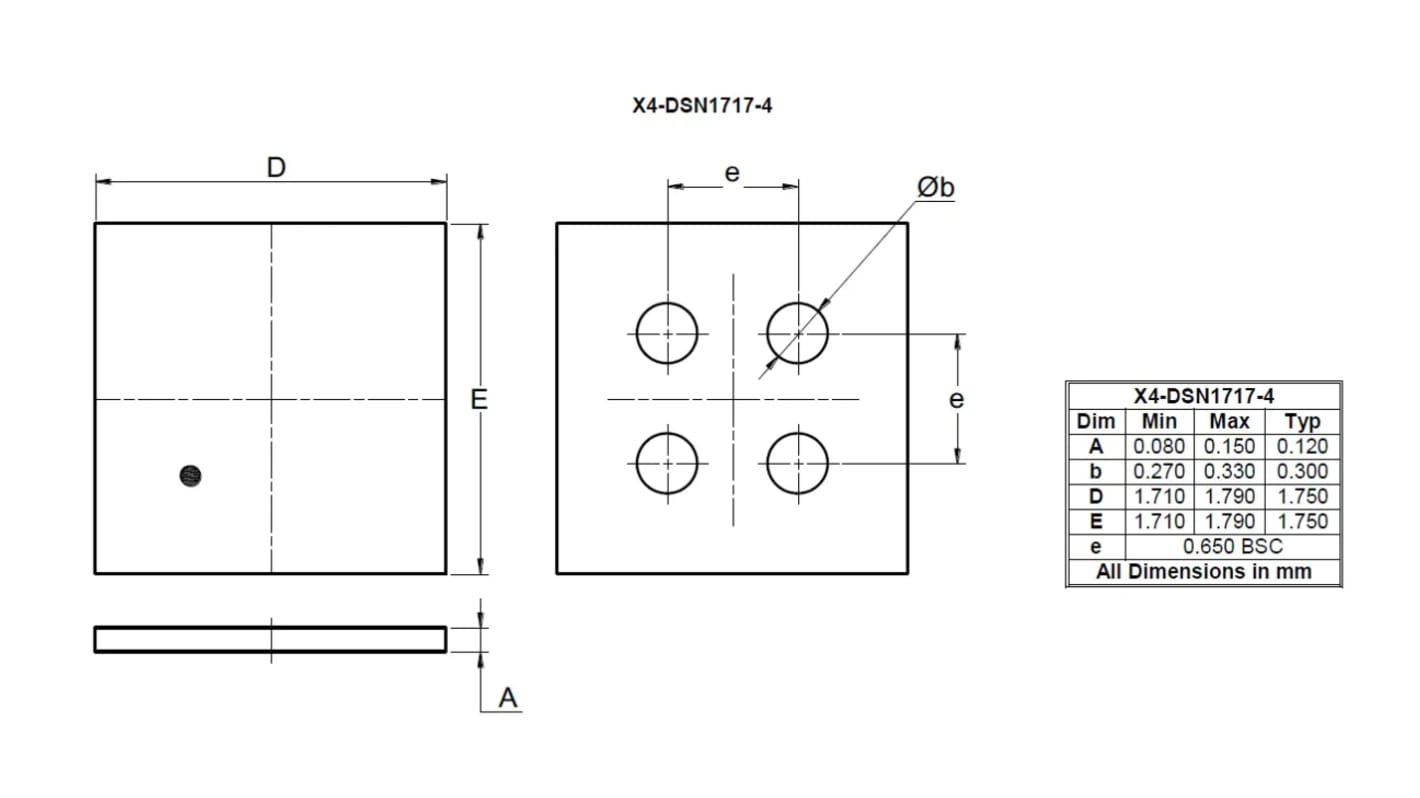

| Package Type | X4-DSN1717-4 | |
| Maximum Power Dissipation Pd | 0.37W | |
| Maximum Gate Source Voltage Vgs | 12 V | |
| Forward Voltage Vf | 1V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Drain Source Voltage Vds -30V | ||
Package Type X4-DSN1717-4 | ||
Maximum Power Dissipation Pd 0.37W | ||
Maximum Gate Source Voltage Vgs 12 V | ||
Forward Voltage Vf 1V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The DiodeZetex enhancement mode MOSFET has been designed to minimize the on-state resistance yet maintain superior switching performance, making it ideal for high efficiency power management applications. It is applicable in battery protection and battery
ESD Protection of Gate
Fast switching speed
Halogen and antimony Free
