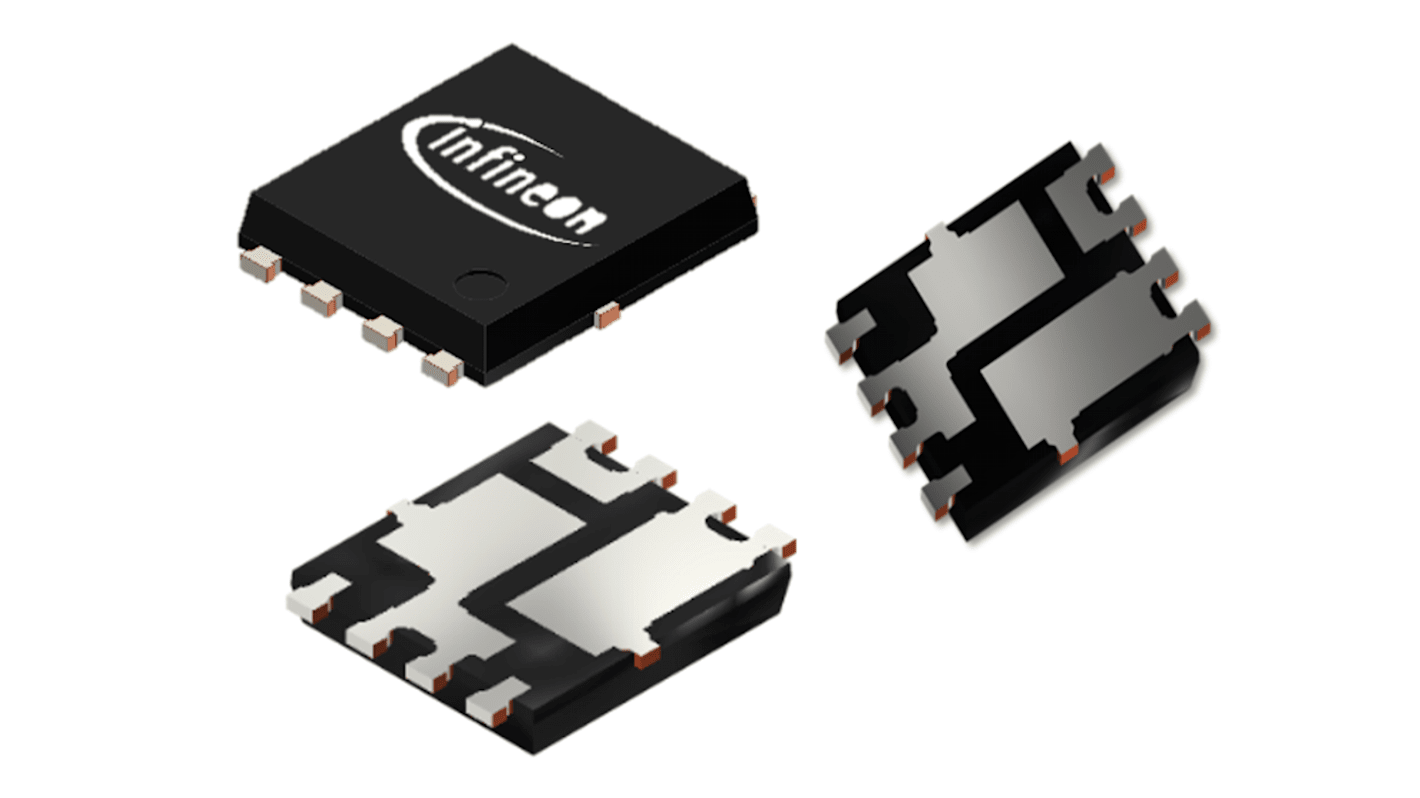

Infineon Half Bridge OptiMOSTM Type N-Channel Power Transistor, 45 A, 40 V Enhancement, 8-Pin SuperSO8 5 x 6
- RS Stock No.:
- 249-6887
- Mfr. Part No.:
- IAUC45N04S6N070HATMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 5 units)*
£6.25
(exc. VAT)
£7.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,505 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.25 | £6.25 |
| 50 - 120 | £1.114 | £5.57 |
| 125 - 245 | £1.038 | £5.19 |
| 250 - 495 | £0.976 | £4.88 |
| 500 + | £0.90 | £4.50 |
*price indicative
- RS Stock No.:
- 249-6887
- Mfr. Part No.:
- IAUC45N04S6N070HATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | Power Transistor | |
| Maximum Continuous Drain Current Id | 45A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Series | OptiMOSTM | |
| Package Type | SuperSO8 5 x 6 | |
| Pin Count | 8 | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 9nC | |
| Maximum Power Dissipation Pd | 41W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.1V | |
| Transistor Configuration | Half Bridge | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type Power Transistor | ||
Maximum Continuous Drain Current Id 45A | ||
Maximum Drain Source Voltage Vds 40V | ||
Series OptiMOSTM | ||
Package Type SuperSO8 5 x 6 | ||
Pin Count 8 | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 9nC | ||
Maximum Power Dissipation Pd 41W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.1V | ||
Transistor Configuration Half Bridge | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
The Infineon OptiMOS is power MOSFET for automotive applications. Operating channel is N. It is AEC Q101 qualified. MSL1 up to 260°C peak reflow. Green Product (RoHS compliant) and it is 100% Avalanche tested.
175°C operating temperature
