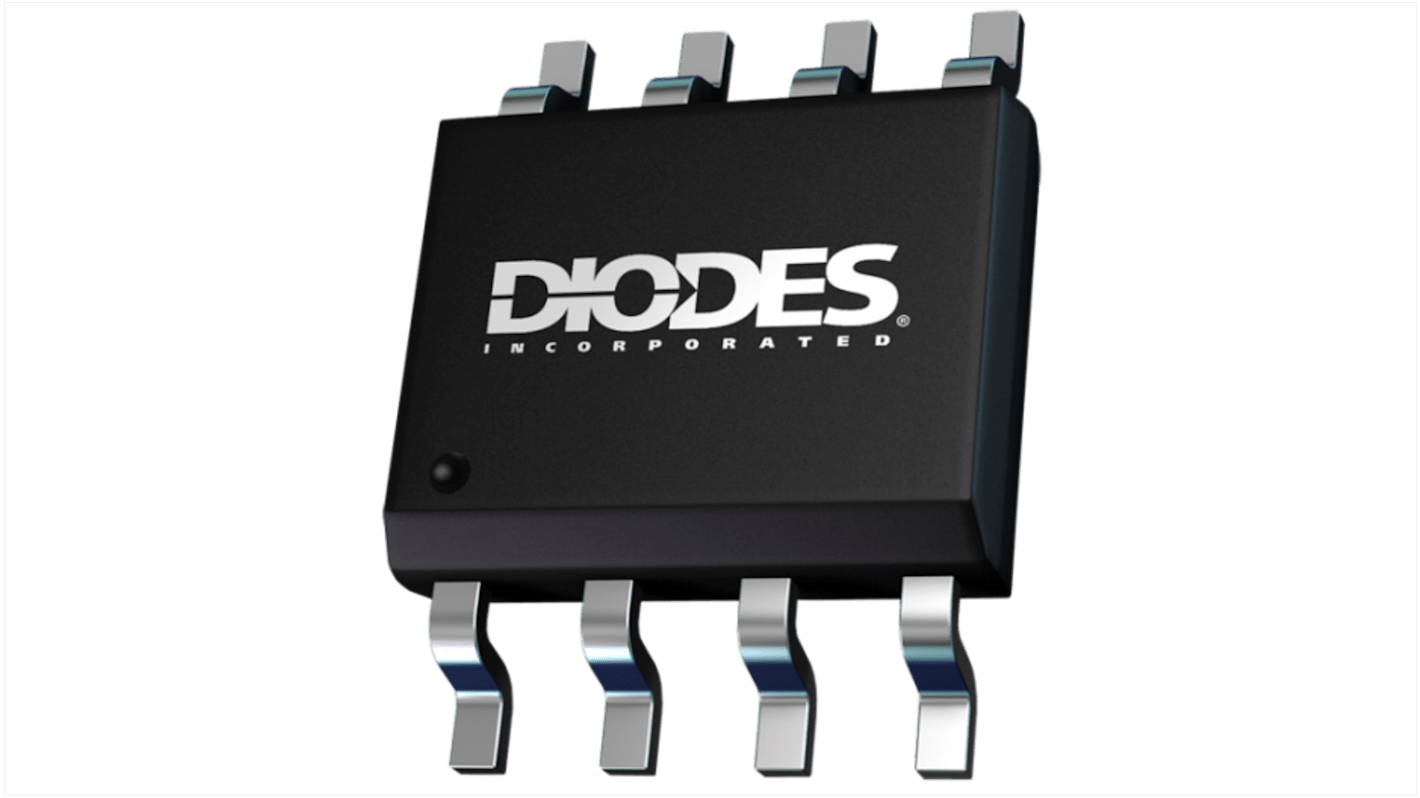

N/P-Channel-Channel MOSFET, 2.9 A, 4.5 A, 40 V, 8-Pin SOIC Diodes Inc DMHC4035LSD-13
- RS Stock No.:
- 246-6776
- Mfr. Part No.:
- DMHC4035LSD-13
- Brand:
- DiodesZetex
2480 In stock - FREE next working day delivery available
Price Each (On a Reel of 2500)
£0.319
(exc. VAT)
£0.383
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.319 | £797.50 |
*price indicative
- RS Stock No.:
- 246-6776
- Mfr. Part No.:
- DMHC4035LSD-13
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
Product Details
The DiodesZetex makes a new generation complementary MOSFET H-Bridge, that features low on-resistance achievable with low gate drive. It is a green device and, totally Lead, halogen and Antimony free. This MOSFET comes in SO-8 packaging. It offers fast switching and low input capacitance. It has working temperature range of -55°C to +150°C.
Maximum drain to source voltage is 40 V and maximum gate to source voltage is ±20 V 2 N-channel and 2 P-channels in a SOIC package It offers low on-resistance
Specifications
Attribute | Value |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 2.9 A, 4.5 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 0.1 O, 0.058 O |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
