Infineon BSC0 Type N-Channel MOSFET, 381 A, 100 V, 8-Pin SuperSO8 5 x 6 DSC
- RS Stock No.:
- 243-9289
- Mfr. Part No.:
- BSC014N06NSSCATMA1
- Brand:
- Infineon
Subtotal (1 reel of 4000 units)*
£5,268.00
(exc. VAT)
£6,320.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4,000 unit(s) shipping from 29 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 4000 + | £1.317 | £5,268.00 |
*price indicative
- RS Stock No.:
- 243-9289
- Mfr. Part No.:
- BSC014N06NSSCATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 381A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Package Type | SuperSO8 5 x 6 DSC | |
| Series | BSC0 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.7mΩ | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 81W | |
| Forward Voltage Vf | 1V | |
| Typical Gate Charge Qg @ Vgs | 80nC | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 381A | ||
Maximum Drain Source Voltage Vds 100V | ||
Package Type SuperSO8 5 x 6 DSC | ||
Series BSC0 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.7mΩ | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 81W | ||
Forward Voltage Vf 1V | ||
Typical Gate Charge Qg @ Vgs 80nC | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||

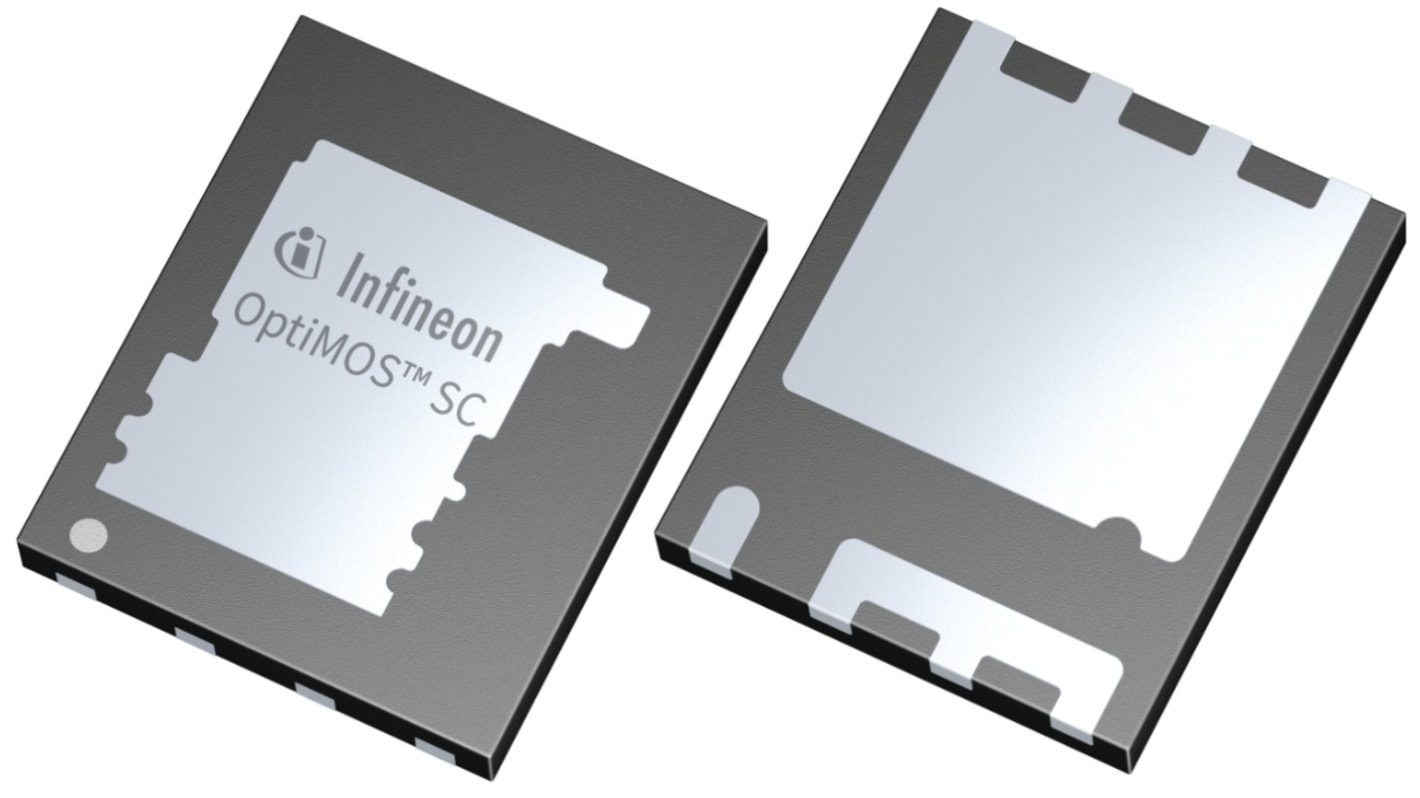

The Infineon BSC014N06NSSCATMA1 OptiMOS™ SC power MOSFET is Infineon’s portfolio of low- and medium-voltage MOSFETs in a dual-cool SuperSO8 package. It offers improved heat dissipation, supporting highly efficient and high-power density designs especially when a heat sink and forced airflow are deployed. It is a perfect fit for a wide range of applications such as power tools, telecom and servers.
Doublesidecooledpackage-withlowestJunction-topthermalresistance
175°Crated
OptimizedforhighperformanceSMPS,e.g.sync.rec.
100%avalanchetested
Superiorthermalresistance
N-channel
Pb-freeleadplating;RoHScompliant
Halogen-freeaccordingtoIEC61249-2-21
Highersolderjointreliabilityduetoenlargedsourceinterconnection
