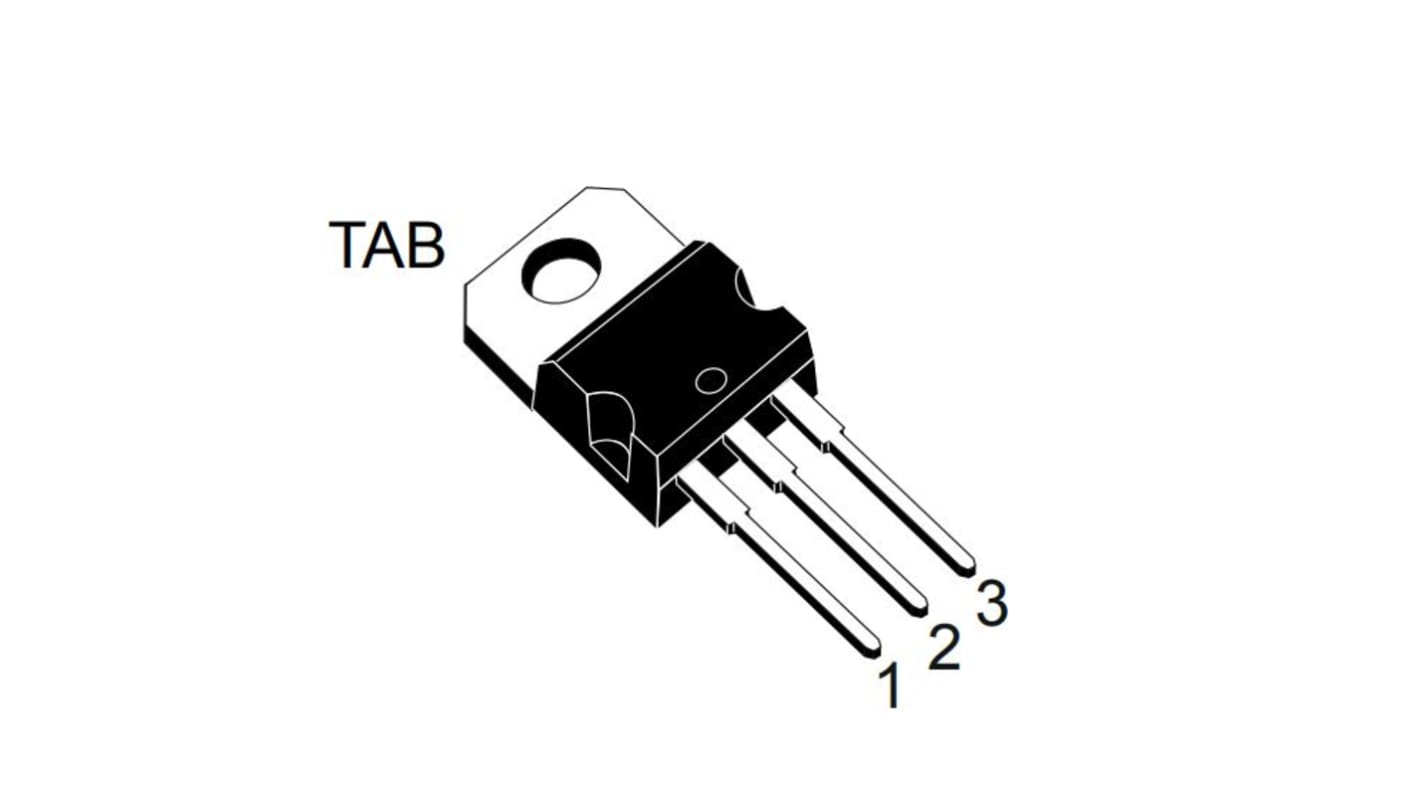

N-Channel MOSFET, 16 A, 800 V, 3-Pin TO-220 STMicroelectronics STP80N240K6
- RS Stock No.:
- 239-5543
- Mfr. Part No.:
- STP80N240K6
- Brand:
- STMicroelectronics
40 In stock - FREE next working day delivery available
Price Each (In a Tube of 50)
£3.52
(exc. VAT)
£4.22
(inc. VAT)
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £3.52 | £176.00 |
| 100 - 200 | £3.344 | £167.20 |
| 250 + | £2.816 | £140.80 |
*price indicative
- RS Stock No.:
- 239-5543
- Mfr. Part No.:
- STP80N240K6
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details
The STMicroelectronics very high voltage N-channel Power MOSFET is designed using the ultimate MDmesh K6 technology based on 20 years STMicroelectronics experience on super junction technology. The result is the best-in-class on-resistance per area and gate charge for applications requiring superior power density and high efficiency. This MOSFET is Recommended for flyback topology, based applications such as LED lighting, chargers and adapters. Provide more power density reducing both BOM cost and size of the board.
Worldwide best RDS(on) x area
Worldwide best FOM (figure of merit)
Ultra low gate charge
100% avalanche tested
Zener-protected
Worldwide best FOM (figure of merit)
Ultra low gate charge
100% avalanche tested
Zener-protected
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 16 A |
| Maximum Drain Source Voltage | 800 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
