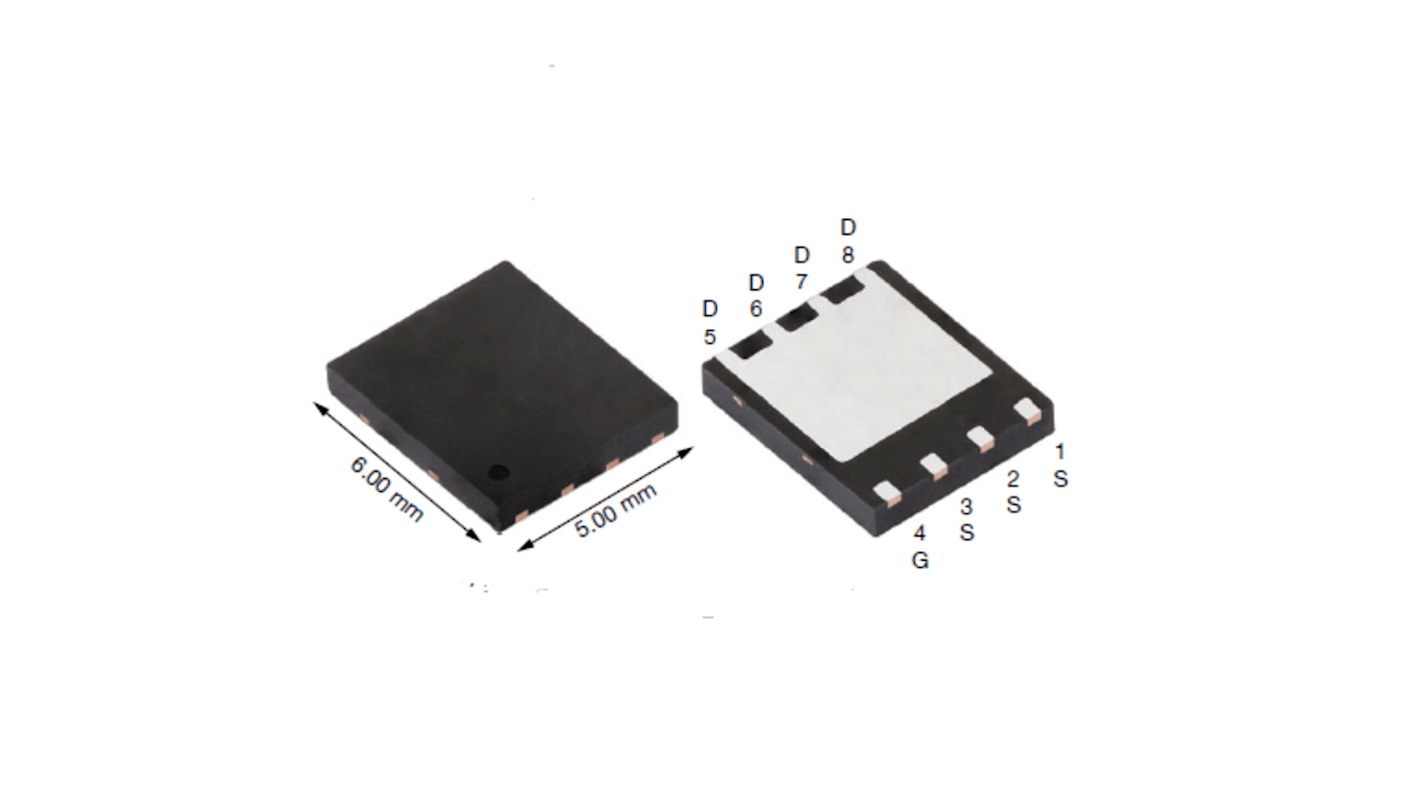

Vishay SiR Type N-Channel MOSFET, 171 A, 171 V, 8-Pin PowerPAK SO-8 SiRS700DP-T1-GE3
- RS Stock No.:
- 239-5396
- Mfr. Part No.:
- SiRS700DP-T1-GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 2 units)*
£5.98
(exc. VAT)
£7.18
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 5,800 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £2.99 | £5.98 |
| 20 - 98 | £2.81 | £5.62 |
| 100 - 198 | £2.545 | £5.09 |
| 200 - 498 | £2.39 | £4.78 |
| 500 + | £2.245 | £4.49 |
*price indicative
- RS Stock No.:
- 239-5396
- Mfr. Part No.:
- SiRS700DP-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 171A | |
| Maximum Drain Source Voltage Vds | 171V | |
| Series | SiR | |
| Package Type | PowerPAK SO-8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.0035Ω | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | ±20 V | |
| Typical Gate Charge Qg @ Vgs | 86nC | |
| Maximum Power Dissipation Pd | 132W | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Width | 5 mm | |
| Length | 6mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 171A | ||
Maximum Drain Source Voltage Vds 171V | ||
Series SiR | ||
Package Type PowerPAK SO-8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.0035Ω | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs ±20 V | ||
Typical Gate Charge Qg @ Vgs 86nC | ||
Maximum Power Dissipation Pd 132W | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Width 5 mm | ||
Length 6mm | ||
Automotive Standard No | ||
The Vishay TrenchFET N channel power MOSFET has drain current of 171 A. It is used in synchronous rectification, primary side switch, DC/DC converter and motor drive switch.
Very low RDS x Qg figure-of-merit (FOM)
Tuned for the lowest RDS x Qoss FOM
100 % Rg and UIS tested
