Infineon OptiMOS™ 5 N-Channel MOSFET, 396 A, 80 V, 16-Pin PG HDSOP-16 (TOLT) IPTC012N08NM5ATMA1
- RS Stock No.:
- 233-4373
- Mfr. Part No.:
- IPTC012N08NM5ATMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£10.30
(exc. VAT)
£12.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,748 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £5.15 | £10.30 |
| 10 - 18 | £4.43 | £8.86 |
| 20 - 48 | £4.17 | £8.34 |
| 50 - 98 | £3.865 | £7.73 |
| 100 + | £3.555 | £7.11 |
*price indicative
- RS Stock No.:
- 233-4373
- Mfr. Part No.:
- IPTC012N08NM5ATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 396 A | |
| Maximum Drain Source Voltage | 80 V | |
| Series | OptiMOS™ 5 | |
| Package Type | PG HDSOP-16 (TOLT) | |
| Mounting Type | Surface Mount | |
| Pin Count | 16 | |
| Maximum Drain Source Resistance | 0.0012 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3.8V | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 396 A | ||
Maximum Drain Source Voltage 80 V | ||
Series OptiMOS™ 5 | ||
Package Type PG HDSOP-16 (TOLT) | ||
Mounting Type Surface Mount | ||
Pin Count 16 | ||
Maximum Drain Source Resistance 0.0012 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.8V | ||
Number of Elements per Chip 1 | ||

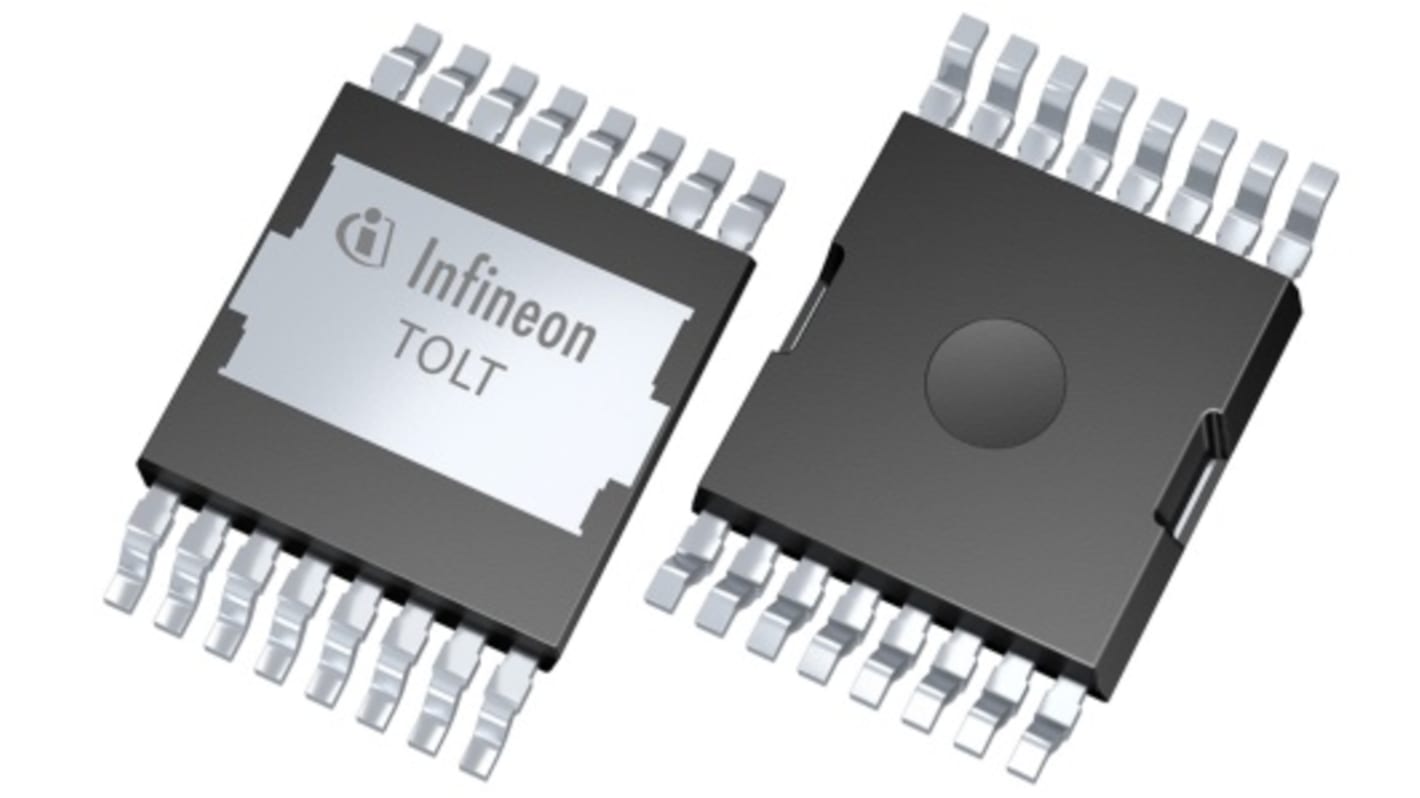

The Infineon IPTC012N08NM5 is part of OptiMOS 5 power MOSFET in TOLT in that TO-Leaded top side-cooling package for superior thermal performance. This innovative package combined with the key features of OptiMOS 5 technology allows best-in-class products in 80 V as well as high current rating 300 A for high power density designs. With top side-cooling setup the drain is exposed at the surface of the package and 95 percent of the heat dissipation can be promoted directly to the heatsink achieving 20 percent better RthJA and 50 percent improved RthJC compared to TOLL package. With bottom side cooling packages like TOLL or D2PAK, the heat is dissipated via the PCB to the heatsink causing high power losses.
Negative stand-off
Saving in cooling system
Increased system efficiency enabling extended battery life time
Saving in cooling system
Increased system efficiency enabling extended battery life time
