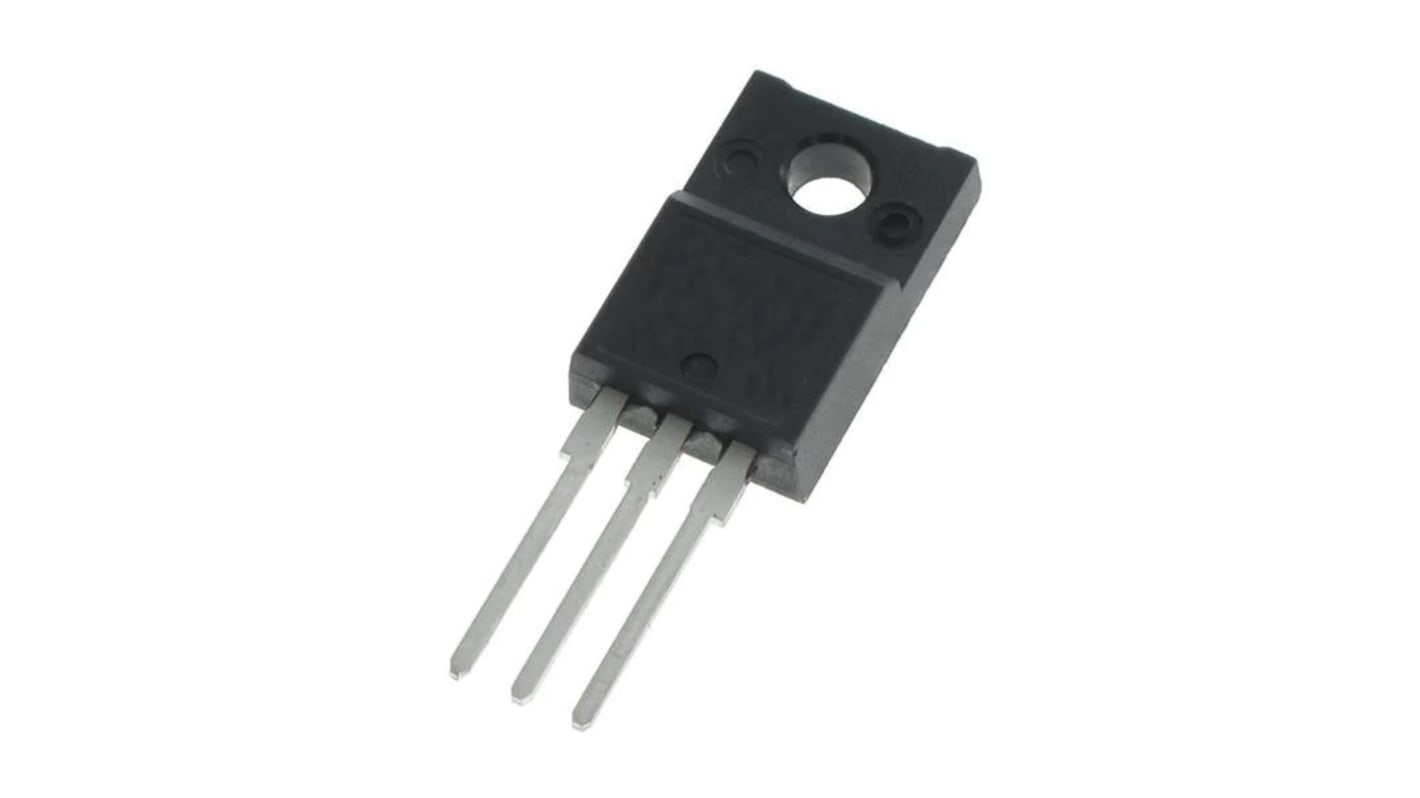

onsemi SUPERFET III Type N-Channel MOSFET, 24 A, 650 V N, 3-Pin TO-220 NTPF125N65S3H
- RS Stock No.:
- 229-6493
- Mfr. Part No.:
- NTPF125N65S3H
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 2 units)*
£6.23
(exc. VAT)
£7.476
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,952 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £3.115 | £6.23 |
| 20 - 198 | £2.685 | £5.37 |
| 200 + | £2.33 | £4.66 |
*price indicative
- RS Stock No.:
- 229-6493
- Mfr. Part No.:
- NTPF125N65S3H
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 24A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Package Type | TO-220 | |
| Series | SUPERFET III | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 125mΩ | |
| Channel Mode | N | |
| Typical Gate Charge Qg @ Vgs | 44nC | |
| Maximum Power Dissipation Pd | 37W | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.2V | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Maximum Operating Temperature | 175°C | |
| Height | 29.95mm | |
| Length | 10.63mm | |
| Width | 4.9 mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 24A | ||
Maximum Drain Source Voltage Vds 650V | ||
Package Type TO-220 | ||
Series SUPERFET III | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 125mΩ | ||
Channel Mode N | ||
Typical Gate Charge Qg @ Vgs 44nC | ||
Maximum Power Dissipation Pd 37W | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.2V | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Maximum Operating Temperature 175°C | ||
Height 29.95mm | ||
Length 10.63mm | ||
Width 4.9 mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The ON Semiconductor SUPER FET series is brand new high voltage super junction MOSFET that is utilizing charge balance technology for outstanding low on−resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss, provides superior switching performance, and withstand extreme dv/dt rate.
Low effective output capacitance
100% avalanche tested
Higher system reliability at low temperature operation
Pb−free
RoHS compliant
