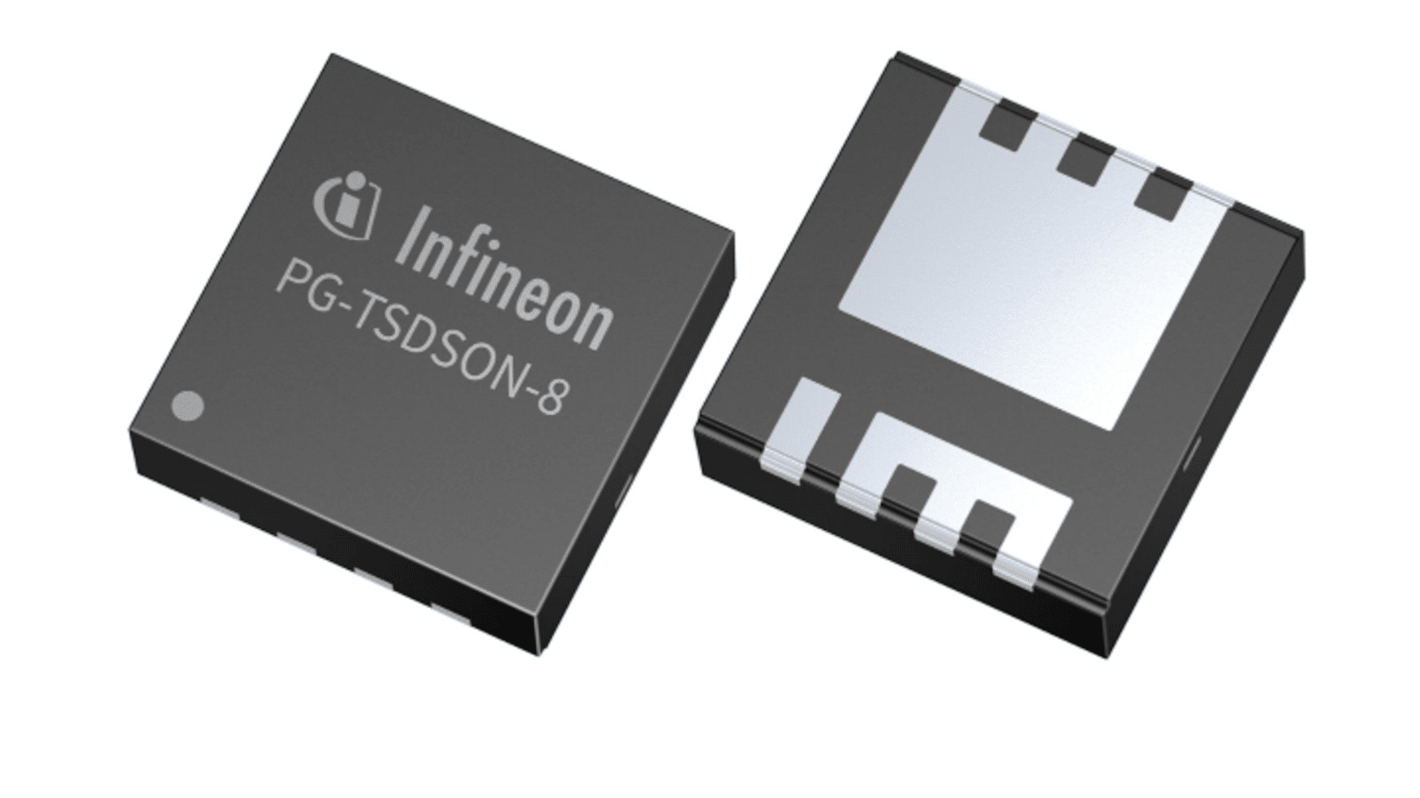

Infineon OptiMOS™ 5 Silicon N-Channel MOSFET, 40 A, 100 V, 8-Pin PQFN 3 x 3 IAUZ40N10S5N130ATMA1
- RS Stock No.:
- 229-1813
- Mfr. Part No.:
- IAUZ40N10S5N130ATMA1
- Brand:
- Infineon
Save 18% when you buy 500 units
Subtotal (1 pack of 10 units)*
£5.02
(exc. VAT)
£6.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24,870 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.502 | £5.02 |
| 50 - 90 | £0.477 | £4.77 |
| 100 - 240 | £0.457 | £4.57 |
| 250 - 490 | £0.437 | £4.37 |
| 500 + | £0.407 | £4.07 |
*price indicative
- RS Stock No.:
- 229-1813
- Mfr. Part No.:
- IAUZ40N10S5N130ATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 40 A | |
| Maximum Drain Source Voltage | 100 V | |
| Series | OptiMOS™ 5 | |
| Package Type | PQFN 3 x 3 | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 0.013 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3.8V | |
| Transistor Material | Silicon | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 40 A | ||
Maximum Drain Source Voltage 100 V | ||
Series OptiMOS™ 5 | ||
Package Type PQFN 3 x 3 | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 0.013 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.8V | ||
Transistor Material Silicon | ||
Number of Elements per Chip 1 | ||
The IAUZ40N10S5N130 is a 10mR 80V MOSFET in 3.3 x 3.3 mm² S3O8 package, using Infineon’s leading OptiMOS™-5 technology.
Summary of Features
•OptiMOS™ 5 - power MOSFET for automotive applications
•N-channel - Enhancement mode - Normal Level
•AEC Q101 qualified
•MSL1 up to 260°C peak reflow
•175°C operating temperature
•Green Product (RoHS compliant)
•100% Avalanche tested
•N-channel - Enhancement mode - Normal Level
•AEC Q101 qualified
•MSL1 up to 260°C peak reflow
•175°C operating temperature
•Green Product (RoHS compliant)
•100% Avalanche tested
