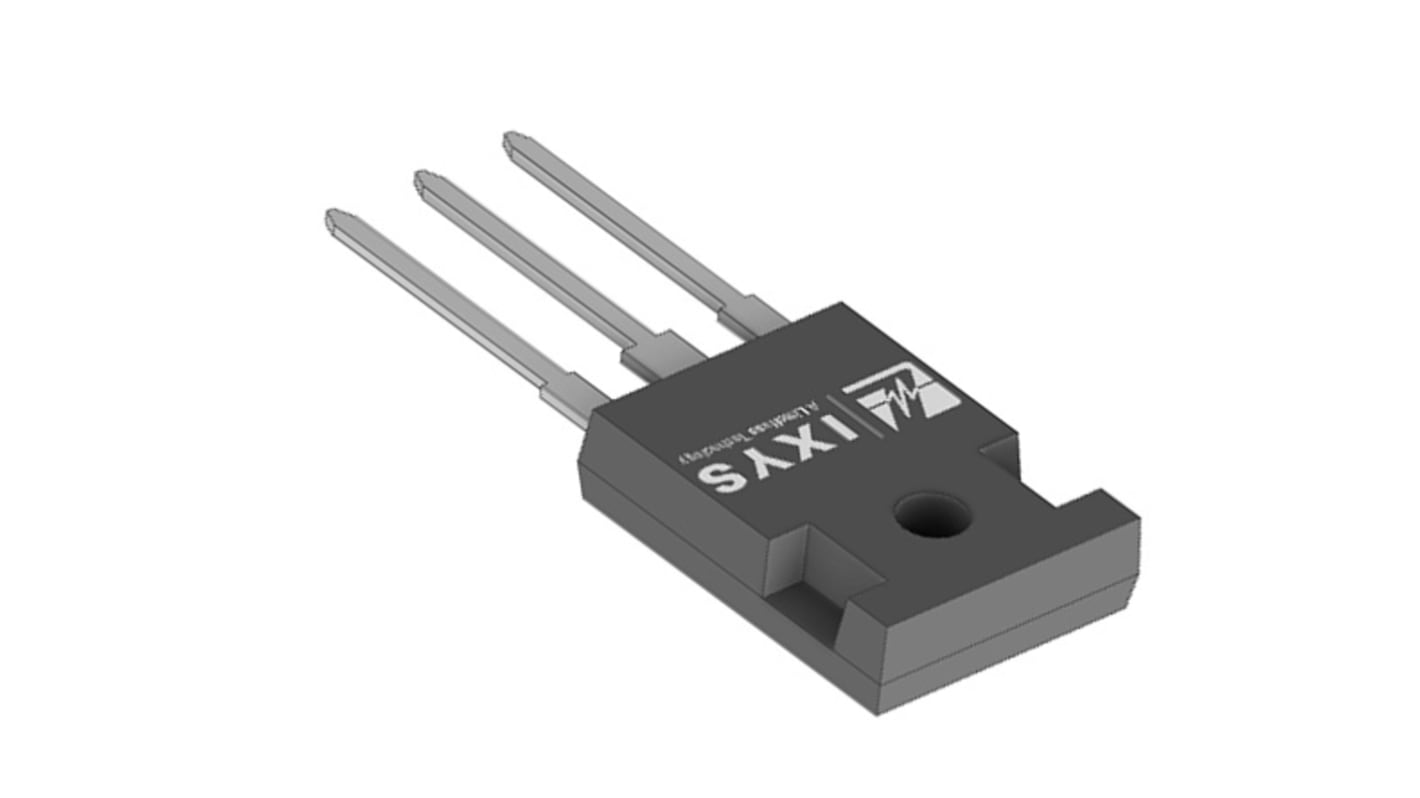

Littelfuse X4 N-Channel MOSFET, 94 A, 200 V Enhancement, 3-Pin TO-247 IXTH94N20X4
- RS Stock No.:
- 229-1432
- Mfr. Part No.:
- IXTH94N20X4
- Brand:
- Littelfuse
Get a bulk buy discount
Add 120 more to save 3%
View bulk pricing optionsSubtotal (1 tube of 30 units)*
£201.66
(exc. VAT)
£241.98
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 18 June 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* | Saving |
|---|---|---|---|
| 30 - 90 | £6.722 | £201.66 | - |
| 120 - 480 | £6.513 | £195.39 | 3% |
| 510 + | £6.35 | £190.50 | 5% |
*price indicative
- RS Stock No.:
- 229-1432
- Mfr. Part No.:
- IXTH94N20X4
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Channel Type | N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 94A | |
| Maximum Drain Source Voltage Vds | 200V | |
| Package Type | TO-247 | |
| Series | X4 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 10.6mΩ | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 77nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 360W | |
| Maximum Gate Source Voltage Vgs | 30V | |
| Maximum Operating Temperature | 175°C | |
| Width | 5.21mm | |
| Length | 16.13mm | |
| Standards/Approvals | No | |
| Height | 21.34mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Channel Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 94A | ||
Maximum Drain Source Voltage Vds 200V | ||
Package Type TO-247 | ||
Series X4 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 10.6mΩ | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 77nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 360W | ||
Maximum Gate Source Voltage Vgs 30V | ||
Maximum Operating Temperature 175°C | ||
Width 5.21mm | ||
Length 16.13mm | ||
Standards/Approvals No | ||
Height 21.34mm | ||
Automotive Standard No | ||
The Littelfuse IXTH94N20X4 MOSFETs are designed with the latest Ultra Junction technology for high efficiency power applications. They are available in TO-247 and TO-268HV Packages. They offer lower RDS(on) simultaneously with reduced gate and output charges, which allows for more efficient switching at given frequency.
Low gate charge
Low RDS(on)
Low RthJC
Operating temperature is 175°C
High avalanche rating (900mJ - 1J)
