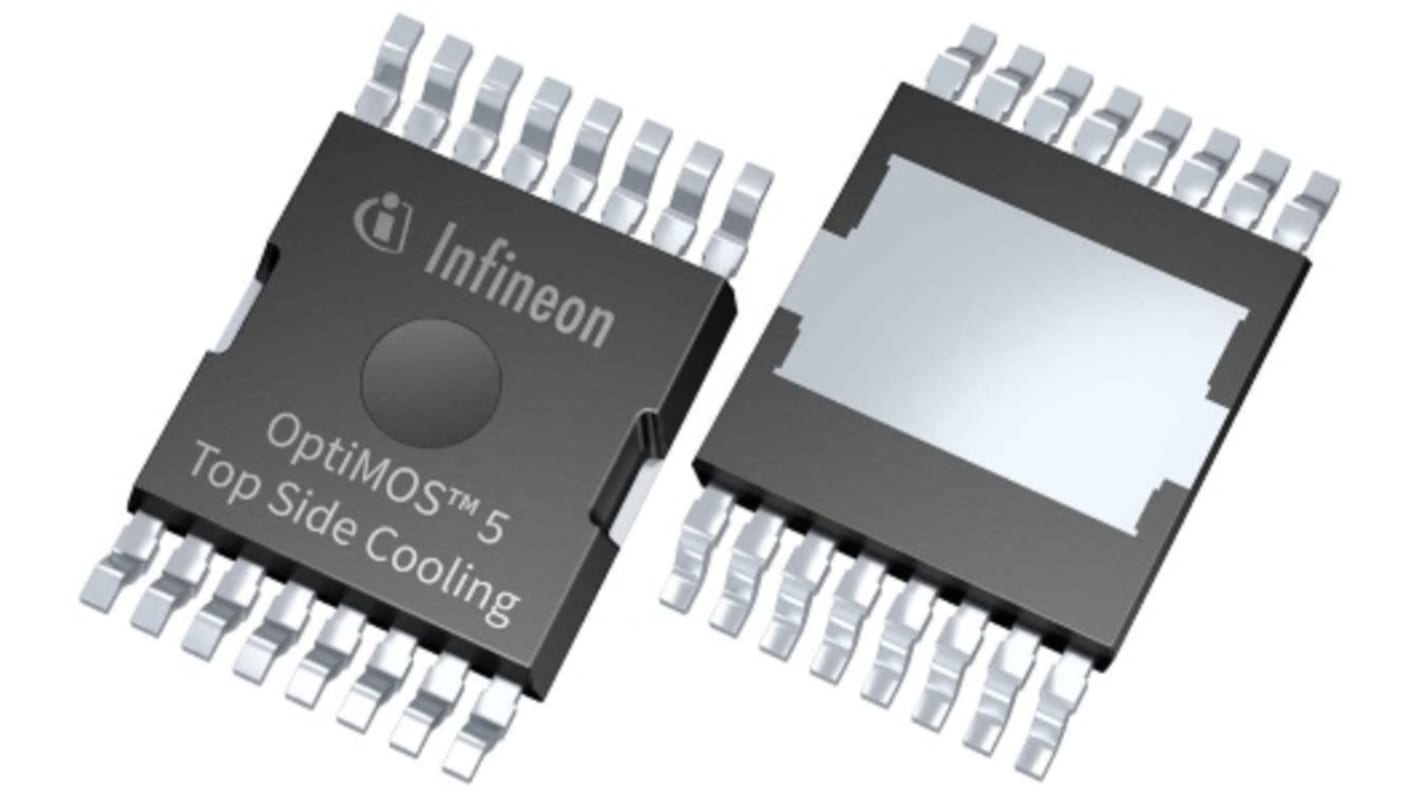

Infineon OptiMOS™ 5 N-Channel MOSFET, 350 A, 100 V, 16-Pin PG HDSOP-16 (TOLT) IAUS300N10S5N015TATMA1
- RS Stock No.:
- 228-6530
- Mfr. Part No.:
- IAUS300N10S5N015TATMA1
- Brand:
- Infineon
Subtotal (1 reel of 1800 units)*
£4,536.00
(exc. VAT)
£5,436.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,800 unit(s) ready to ship
- Plus 999,997,200 unit(s) shipping from 12 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1800 + | £2.52 | £4,536.00 |
*price indicative
- RS Stock No.:
- 228-6530
- Mfr. Part No.:
- IAUS300N10S5N015TATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Channel Type | N | |
Maximum Continuous Drain Current | 350 A | |
Maximum Drain Source Voltage | 100 V | |
Package Type | PG HDSOP-16 (TOLT) | |
Series | OptiMOS™ 5 | |
Mounting Type | Surface Mount | |
Pin Count | 16 | |
Maximum Gate Threshold Voltage | 3.8V | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 350 A | ||
Maximum Drain Source Voltage 100 V | ||
Package Type PG HDSOP-16 (TOLT) | ||
Series OptiMOS™ 5 | ||
Mounting Type Surface Mount | ||
Pin Count 16 | ||
Maximum Gate Threshold Voltage 3.8V | ||
Number of Elements per Chip 1 | ||
100V, N-Ch, 1.5 mΩ max, Automotive MOSFET, TOLT, OptiMOS™-5
The IAUS300N10S5N015T is a 1.5 mΩ, topside-cooled 100 V MOSFET coming in the TOLT package with Infineons leading OptiMOS™-5 technology. Next to others the device is designed for 48V applications and is primarily used in the 48V inverter, the HV-LV DC-DC converter as well as other 48V auxiliary applications.
Summary of Features
- OptiMOSTM 5 – power MOSFET for automotive applications
- N-channel – Enhancement mode – Normal Level
- AEC Q101 qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Ultra low RDS(on)
- Green Product (RoHS compliant)
- 100% Avalanche tested
