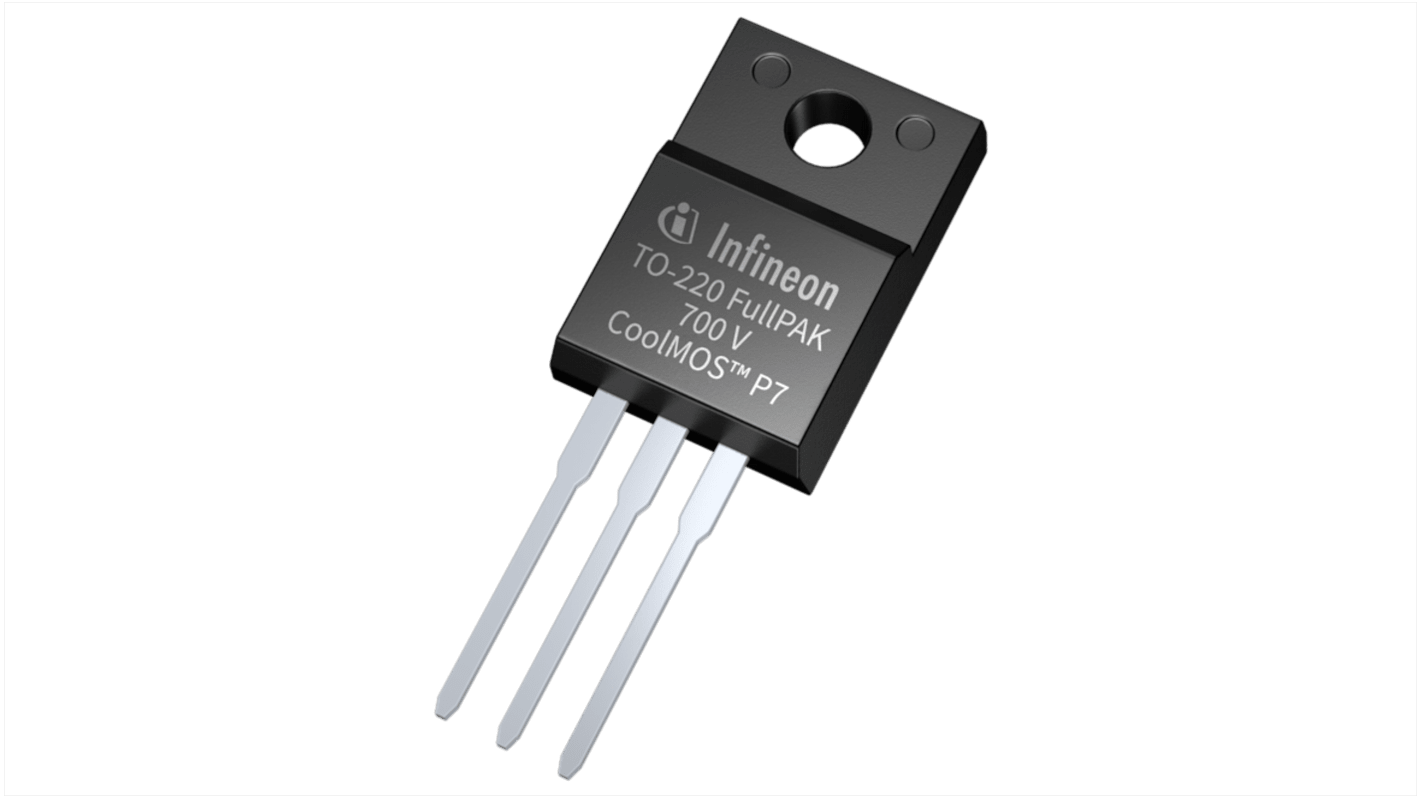

Infineon CoolMOS™ Silicon N-Channel MOSFET, 6 A, 700 V, 3-Pin TO-220 FP IPA70R900P7SXKSA1
- RS Stock No.:
- 222-4644
- Mfr. Part No.:
- IPA70R900P7SXKSA1
- Brand:
- Infineon
Save 18% when you buy 750 units
Subtotal (1 pack of 15 units)*
£8.715
(exc. VAT)
£10.455
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 360 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 15 - 60 | £0.581 | £8.72 |
| 75 - 135 | £0.551 | £8.27 |
| 150 - 360 | £0.529 | £7.94 |
| 375 - 735 | £0.505 | £7.58 |
| 750 + | £0.471 | £7.07 |
*price indicative
- RS Stock No.:
- 222-4644
- Mfr. Part No.:
- IPA70R900P7SXKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 6 A | |
| Maximum Drain Source Voltage | 700 V | |
| Package Type | TO-220 FP | |
| Series | CoolMOS™ | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 0.9 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3.5V | |
| Number of Elements per Chip | 1 | |
| Transistor Material | Silicon | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 6 A | ||
Maximum Drain Source Voltage 700 V | ||
Package Type TO-220 FP | ||
Series CoolMOS™ | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 0.9 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.5V | ||
Number of Elements per Chip 1 | ||
Transistor Material Silicon | ||
The Infineon design of Cool MOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the super junction (SJ) principle and pioneered by Infineon Technologies. The latest Cool MOS™ P7 is an optimized platform tailored to target cost sensitive applications in consumer markets such as charger, adapter, lighting, TV, etc.
Extremely low losses due to very low FOM RDS(on)*Qg and RDS(on)*Eoss
Product validation acc. JEDEC Standard
Low switching losses (Eoss)
Integrated ESD protection diode
Product validation acc. JEDEC Standard
Low switching losses (Eoss)
Integrated ESD protection diode
