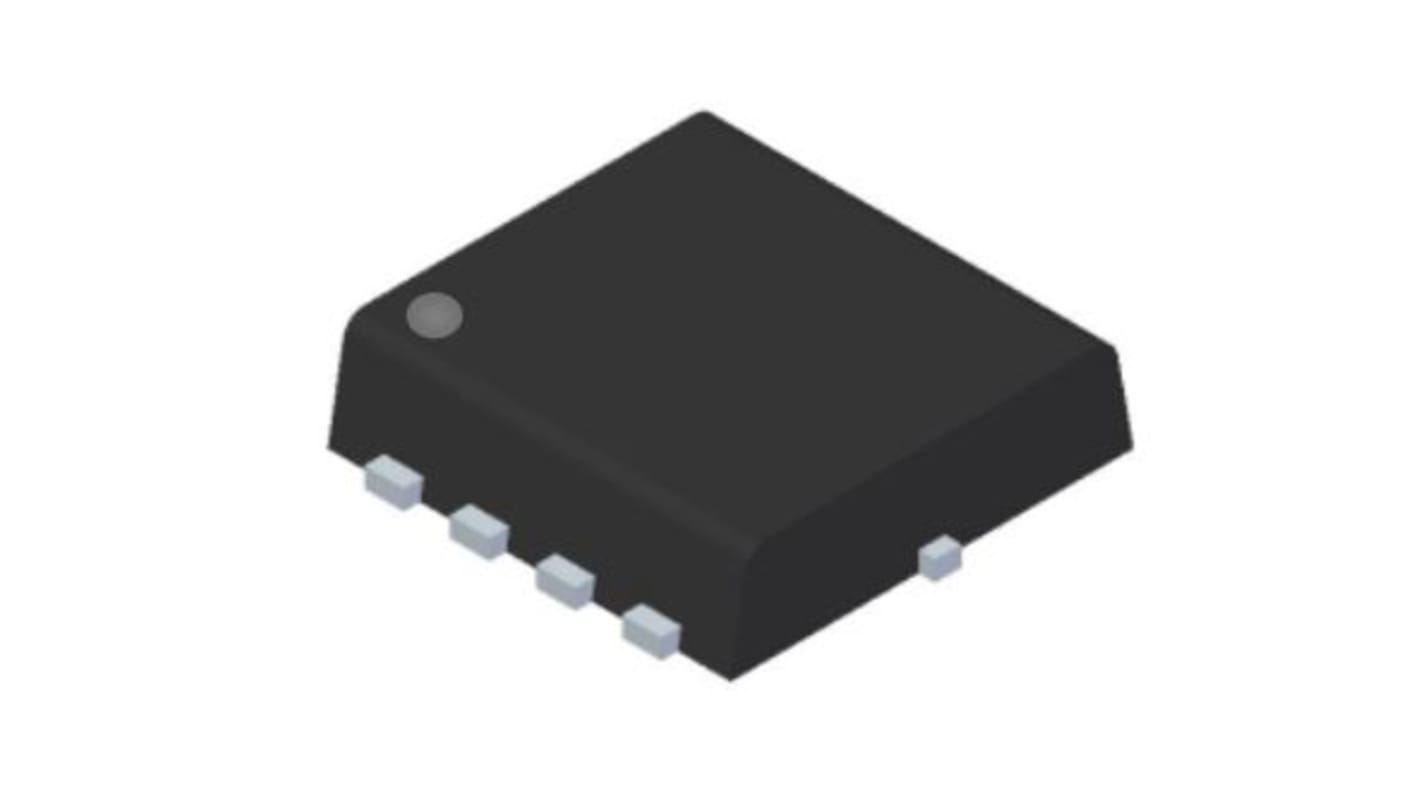

Diodes Inc DMT Plastic N-Channel MOSFET, 26.5 A, 40 V, 8-Pin PowerDI3333-8 DMT4014LDV-7
- RS Stock No.:
- 222-2872
- Mfr. Part No.:
- DMT4014LDV-7
- Brand:
- DiodesZetex
Subtotal (1 reel of 2000 units)*
£514.00
(exc. VAT)
£616.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.257 | £514.00 |
*price indicative
- RS Stock No.:
- 222-2872
- Mfr. Part No.:
- DMT4014LDV-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 26.5 A | |
| Maximum Drain Source Voltage | 40 V | |
| Package Type | PowerDI3333-8 | |
| Series | DMT | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 0.019 O | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3V | |
| Transistor Material | Plastic | |
Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Channel Type N | ||
Maximum Continuous Drain Current 26.5 A | ||
Maximum Drain Source Voltage 40 V | ||
Package Type PowerDI3333-8 | ||
Series DMT | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 0.019 O | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3V | ||
Transistor Material Plastic | ||
The DiodesZetex N-channel enhancement mode MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Low RDS(ON) — Ensures On-State Losses Are Minimized
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
