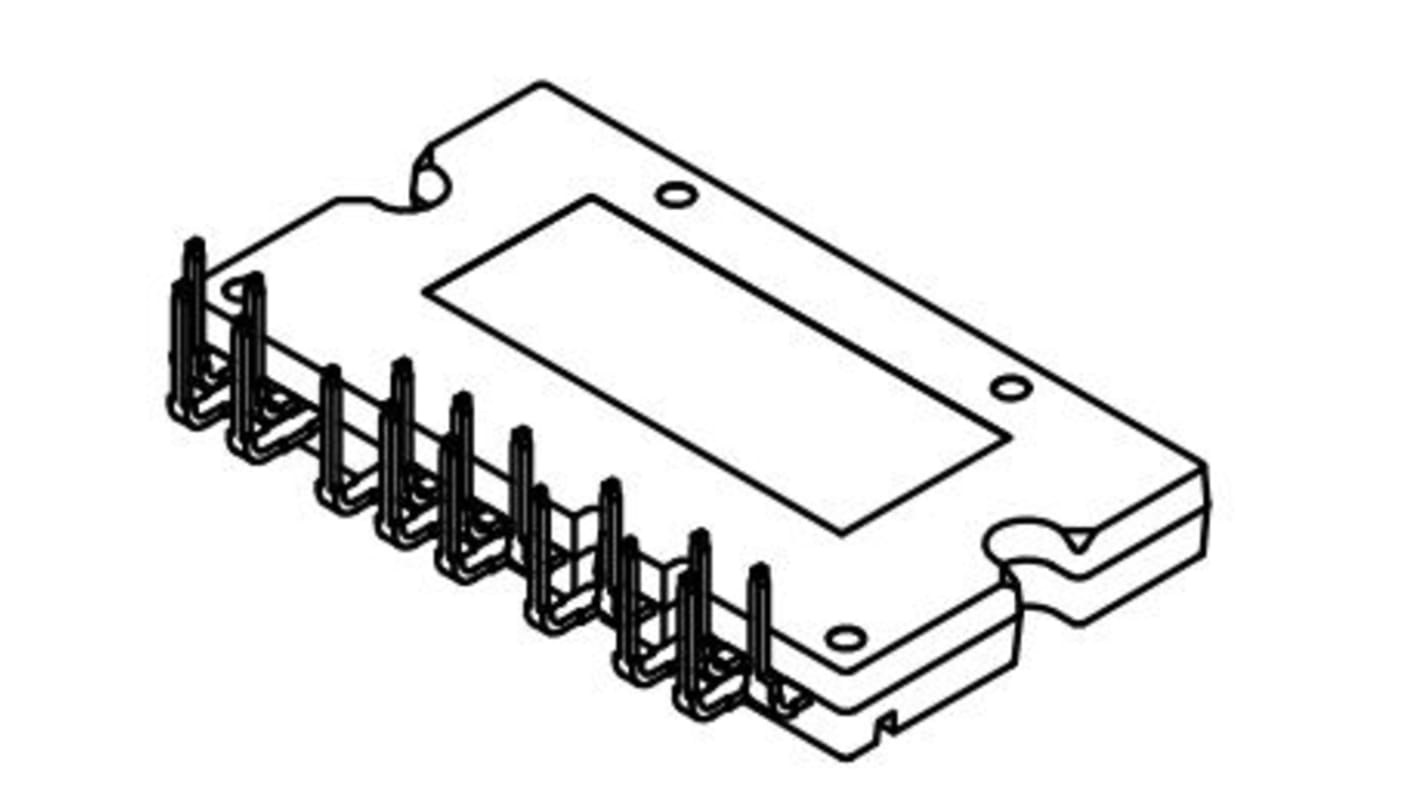

onsemi NXV65HR Quad MOSFET, 26 A, 650 V, 16-Pin APMCA-A16 NXV65HR82DS2

View all MOSFETs

Subtotal (1 tube of 72 units)*

£1,323.00

(exc. VAT)

£1,587.60

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 72 unit(s), ready to ship
Units
Per unit
Per Tube*
72 +£18.375£1,323.00

*price indicative

RS Stock No.:
221-6763
Mfr. Part No.:
NXV65HR82DS2
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Maximum Continuous Drain Current

26 A

Maximum Drain Source Voltage

650 V

Package Type

APMCA-A16

Series

NXV65HR

Mounting Type

Through Hole

Pin Count

16

Maximum Drain Source Resistance

0.082 Ω

Maximum Gate Threshold Voltage

5V

Number of Elements per Chip

4

The ON Semiconductor on-board charger H-bridge in APM16 series for LLC and phase-shifted DC-DC converter. It enable design of small, efficient and reliable system for reduced vehicle fuel consumption and CO2 emissions. It has 82mΩ superFET3 H-bridge on Al²O³ DBC substrate with 5 kV isolation in a compact APM16 transfer molded module.

5 kV/1 s electrically isolated substrate for easy assembly
Compact design for low total module resistance
Module serialization for full traceability
