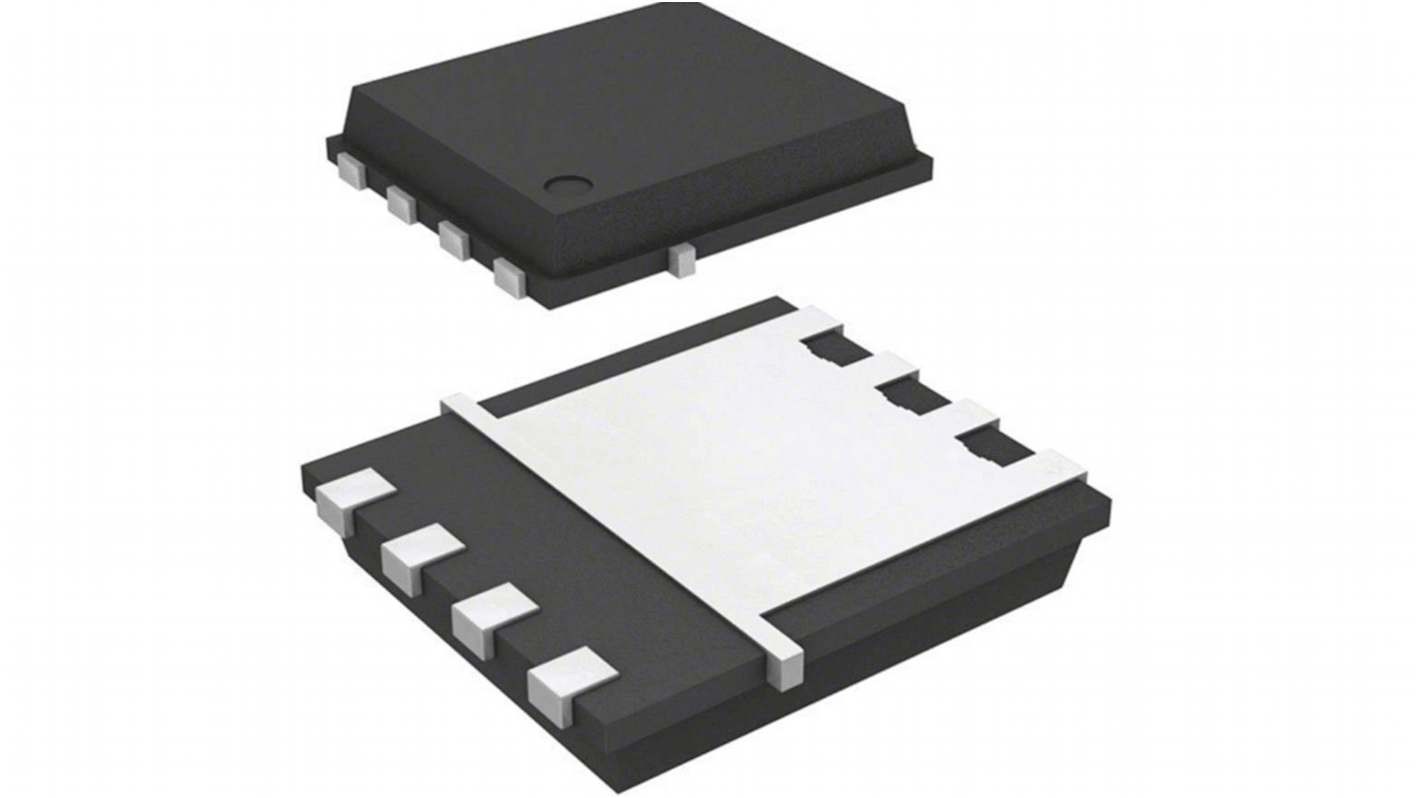

onsemi NTTFS N-Channel MOSFET, 37.2 A, 150 V Enhancement, 8-Pin WDFN NTTFS022N15MC
- RS Stock No.:
- 221-6750
- Mfr. Part No.:
- NTTFS022N15MC
- Brand:
- onsemi
Bulk discount available
View bulk pricing optionsSubtotal (10 units, in packs of 10)*
£16.82
(exc. VAT)
£20.18
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 October 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £1.682 | £16.82 |
| 100 - 240 | £1.45 | £14.50 |
| 250 + | £1.257 | £12.57 |
*price indicative
- RS Stock No.:
- 221-6750
- Mfr. Part No.:
- NTTFS022N15MC
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | MOSFET | |
| Channel Type | N | |
| Maximum Continuous Drain Current Id | 37.2A | |
| Maximum Drain Source Voltage Vds | 150V | |
| Package Type | WDFN | |
| Series | NTTFS | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 22mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 17nC | |
| Maximum Power Dissipation Pd | 71.4W | |
| Forward Voltage Vf | 1.2V | |
| Maximum Gate Source Voltage Vgs | 30V | |
| Maximum Operating Temperature | 175°C | |
| Length | 3.4mm | |
| Standards/Approvals | No | |
| Width | 800μm | |
| Height | 3.4mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type MOSFET | ||
Channel Type N | ||
Maximum Continuous Drain Current Id 37.2A | ||
Maximum Drain Source Voltage Vds 150V | ||
Package Type WDFN | ||
Series NTTFS | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 22mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 17nC | ||
Maximum Power Dissipation Pd 71.4W | ||
Forward Voltage Vf 1.2V | ||
Maximum Gate Source Voltage Vgs 30V | ||
Maximum Operating Temperature 175°C | ||
Length 3.4mm | ||
Standards/Approvals No | ||
Width 800μm | ||
Height 3.4mm | ||
Automotive Standard No | ||
The ON Semiconductor industrial power MOSFET in a 3.3x3.3mm flat lead package designed for compact and efficient designs and improves conduction loss.
Low RDS(on) to minimize conduction losses
Low capacitance to minimize driver losses
