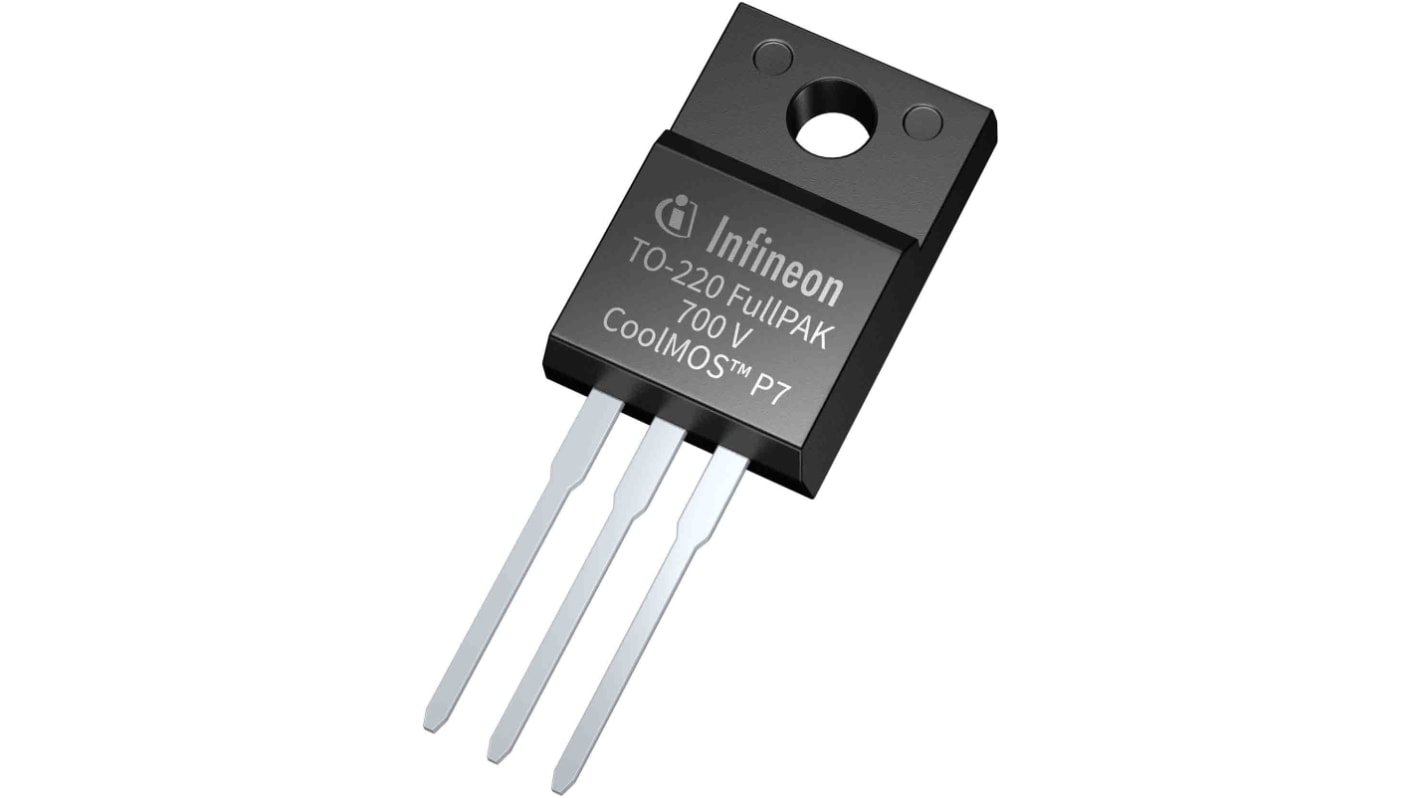

Infineon CoolMOS™ P7 N-Channel MOSFET, 8.5 A, 700 V, 3-Pin TO-220 FP IPA70R600P7SXKSA1
- RS Stock No.:
- 218-3013
- Mfr. Part No.:
- IPA70R600P7SXKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 20 units)*
£11.06
(exc. VAT)
£13.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 160 unit(s) ready to ship
- Plus 999,999,820 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
20 - 80 | £0.553 | £11.06 |
100 - 180 | £0.526 | £10.52 |
200 - 480 | £0.515 | £10.30 |
500 - 980 | £0.481 | £9.62 |
1000 + | £0.448 | £8.96 |
*price indicative
- RS Stock No.:
- 218-3013
- Mfr. Part No.:
- IPA70R600P7SXKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Channel Type | N | |
Maximum Continuous Drain Current | 8.5 A | |
Maximum Drain Source Voltage | 700 V | |
Package Type | TO-220 FP | |
Series | CoolMOS™ P7 | |
Mounting Type | Through Hole | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 0.6 Ω | |
Maximum Gate Threshold Voltage | 3.5V | |
Number of Elements per Chip | 1 | |
Transistor Material | Si | |
Select all | ||
---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 8.5 A | ||
Maximum Drain Source Voltage 700 V | ||
Package Type TO-220 FP | ||
Series CoolMOS™ P7 | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 0.6 Ω | ||
Maximum Gate Threshold Voltage 3.5V | ||
Number of Elements per Chip 1 | ||
Transistor Material Si | ||
The Infineon 700V CoolMOS™ P7 series N-channel power MOSFET. This CoolMOS™ P7 is an optimized platform tailored to target cost sensitive applications in consumer markets such as charger, adapter, lighting, TV, etc. The technology meets highest efficiency standards and supports high power density, enabling customers going towards very slim designs.
Excellent thermal behaviour
Integrated ESD protection diode
Low switching losses (Eoss)
Integrated ESD protection diode
Low switching losses (Eoss)
