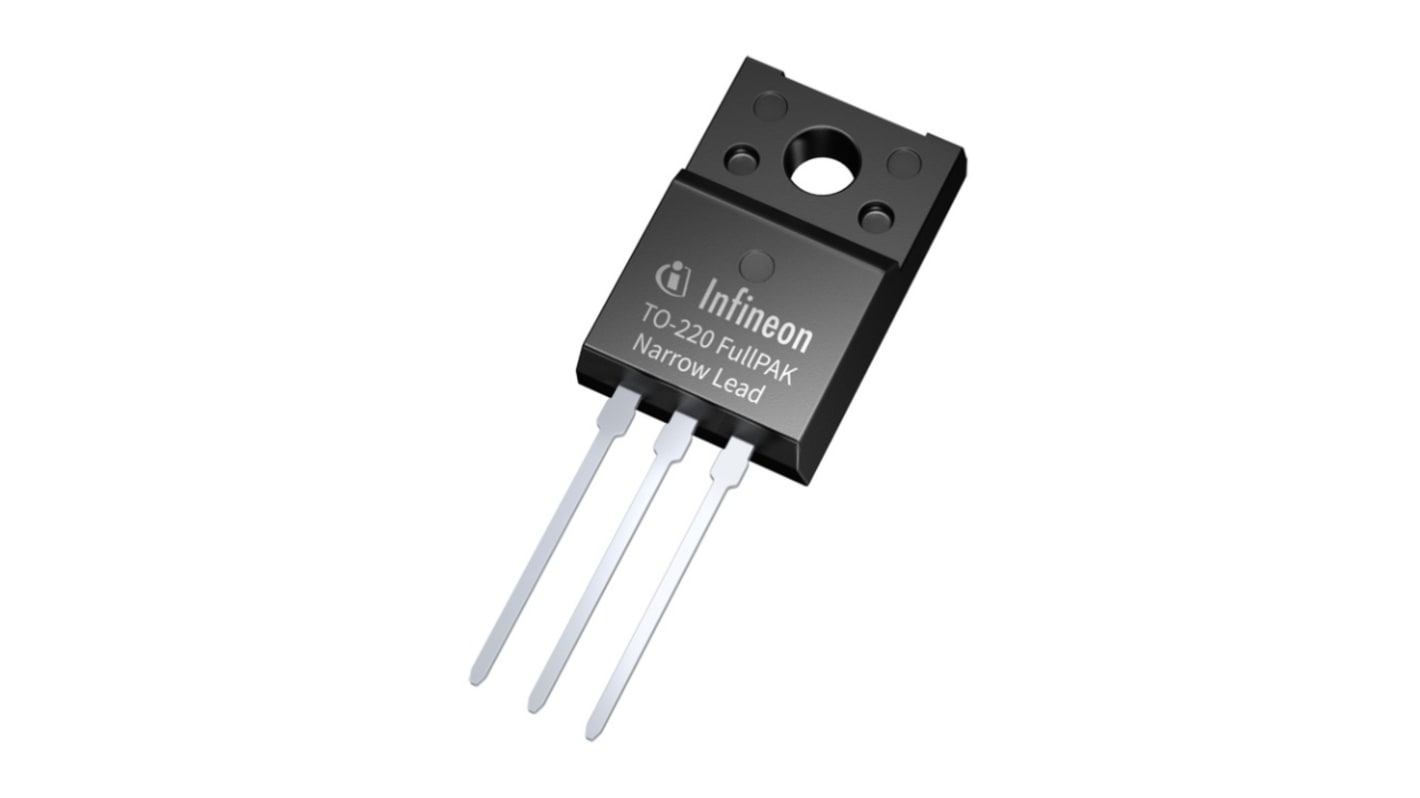

Infineon CoolMOS N-Channel MOSFET, 7.6 A, 500 V N, 3-Pin TO-220 IPAN50R500CEXKSA1
- RS Stock No.:
- 217-2493
- Mfr. Part No.:
- IPAN50R500CEXKSA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (50 units, in tubes of 50)*
£17.95
(exc. VAT)
£21.55
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 300 unit(s) shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £0.359 | £17.95 |
| 100 - 200 | £0.293 | £14.65 |
| 250 - 450 | £0.29 | £14.50 |
| 500 - 1200 | £0.286 | £14.30 |
| 1250 + | £0.283 | £14.15 |
*price indicative
- RS Stock No.:
- 217-2493
- Mfr. Part No.:
- IPAN50R500CEXKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | N | |
| Maximum Continuous Drain Current Id | 7.6A | |
| Maximum Drain Source Voltage Vds | 500V | |
| Series | CoolMOS | |
| Package Type | TO-220 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 500mΩ | |
| Channel Mode | N | |
| Maximum Power Dissipation Pd | 28W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20V | |
| Forward Voltage Vf | 850mV | |
| Typical Gate Charge Qg @ Vgs | 18.7nC | |
| Maximum Operating Temperature | 150°C | |
| Height | 29.85mm | |
| Width | 4.8mm | |
| Standards/Approvals | No | |
| Length | 16.1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type N | ||
Maximum Continuous Drain Current Id 7.6A | ||
Maximum Drain Source Voltage Vds 500V | ||
Series CoolMOS | ||
Package Type TO-220 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 500mΩ | ||
Channel Mode N | ||
Maximum Power Dissipation Pd 28W | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20V | ||
Forward Voltage Vf 850mV | ||
Typical Gate Charge Qg @ Vgs 18.7nC | ||
Maximum Operating Temperature 150°C | ||
Height 29.85mm | ||
Width 4.8mm | ||
Standards/Approvals No | ||
Length 16.1mm | ||
Automotive Standard No | ||
The Infineon 500V CoolMOS™ CE is a price-performance optimized platform enabling to target cost sensitive applications in consumer and lighting markets by still meeting highest efficiency standards. The new series provides all benefits of a fast switching superjunction MOSFET while not sacrificing ease of use and offering the best cost down performance ratio available on the market.
Reduced energy stored in output capacitance (E oss)
High body diode ruggedness
Reduced reverse recovery charge (Q rr )
Reduced gate charge (Q g )
