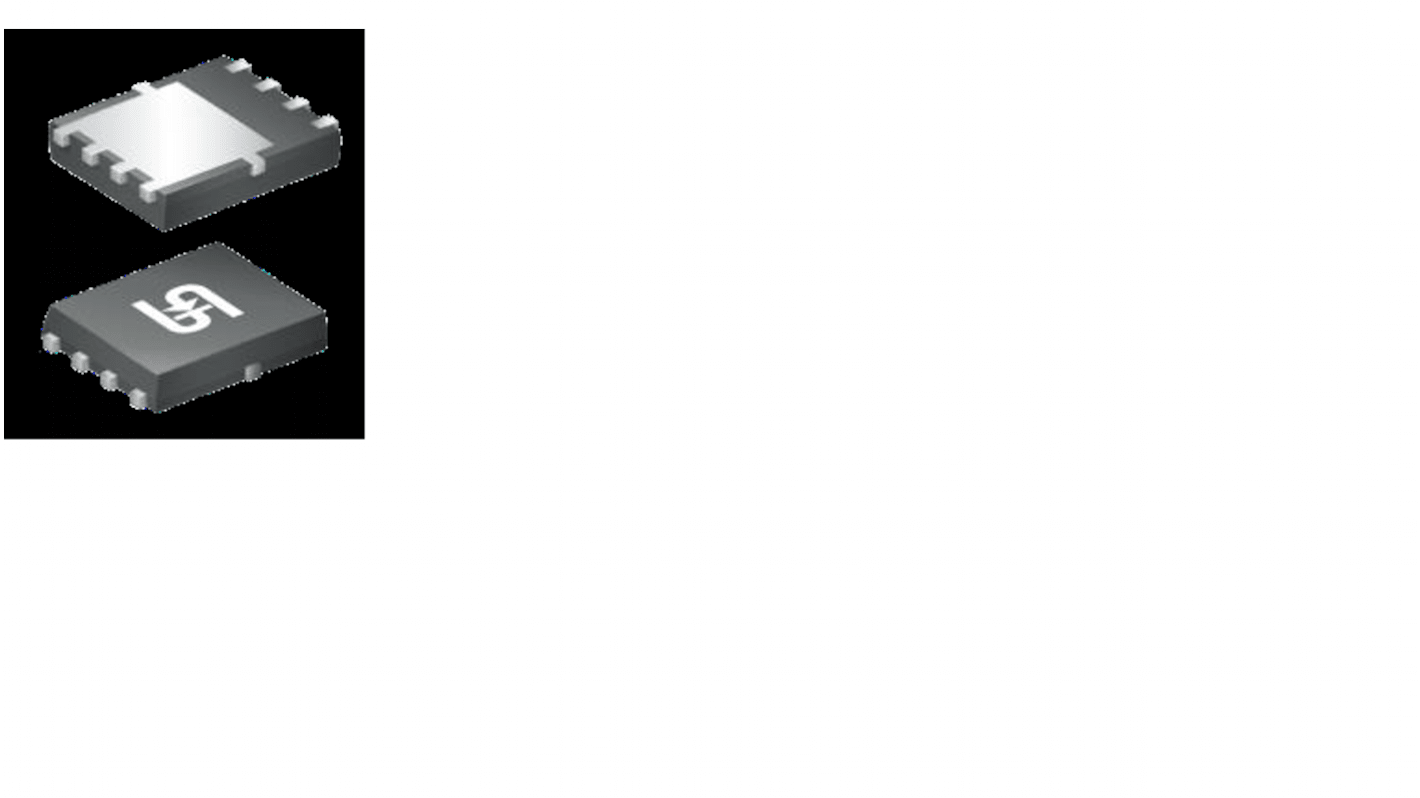

Taiwan Semiconductor TSM025 Type N-Channel MOSFET, 51 A, 60 V Enhancement, 8-Pin PDFN56 TSM130NB06LCR

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 25 units)*

£31.325

(exc. VAT)

£37.60

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 4,975 unit(s), ready to ship
Units
Per unit
Per Pack*
25 - 25£1.253£31.33
50 - 75£1.229£30.73
100 - 225£1.128£28.20
250 - 975£1.106£27.65
1000 +£1.026£25.65

*price indicative

Packaging Options:
RS Stock No.:
216-9689
Mfr. Part No.:
TSM130NB06LCR
Brand:
Taiwan Semiconductor
Find similar products by selecting one or more attributes.
Select all

Brand

Taiwan Semiconductor

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

51A

Maximum Drain Source Voltage Vds

60V

Package Type

PDFN56

Series

TSM025

Mount Type

Surface

Pin Count

8

Maximum Drain Source Resistance Rds

13mΩ

Channel Mode

Enhancement

Maximum Gate Source Voltage Vgs

20 V

Forward Voltage Vf

1V

Typical Gate Charge Qg @ Vgs

37nC

Minimum Operating Temperature

-55°C

Maximum Power Dissipation Pd

83W

Maximum Operating Temperature

175°C

Standards/Approvals

No

Length

6.2mm

Height

1.1mm

Width

5.2 mm

Automotive Standard

No

The Taiwan semiconductor single N channel power MOSFET transistors, stands for ’Metal Oxide Semiconductor Field-Effect Transistors’. MOSFETs are transistor devices which are controlled by a capacitor. The "Field-Effect" means that they are controlled by voltage. The aim of a MOSFET is to control the flow of the current passing through from the source to the drain terminals.

Low RDS(ON) to minimize conductive losses Low gate charge for fast power switching 100% UIS and Rg tested
