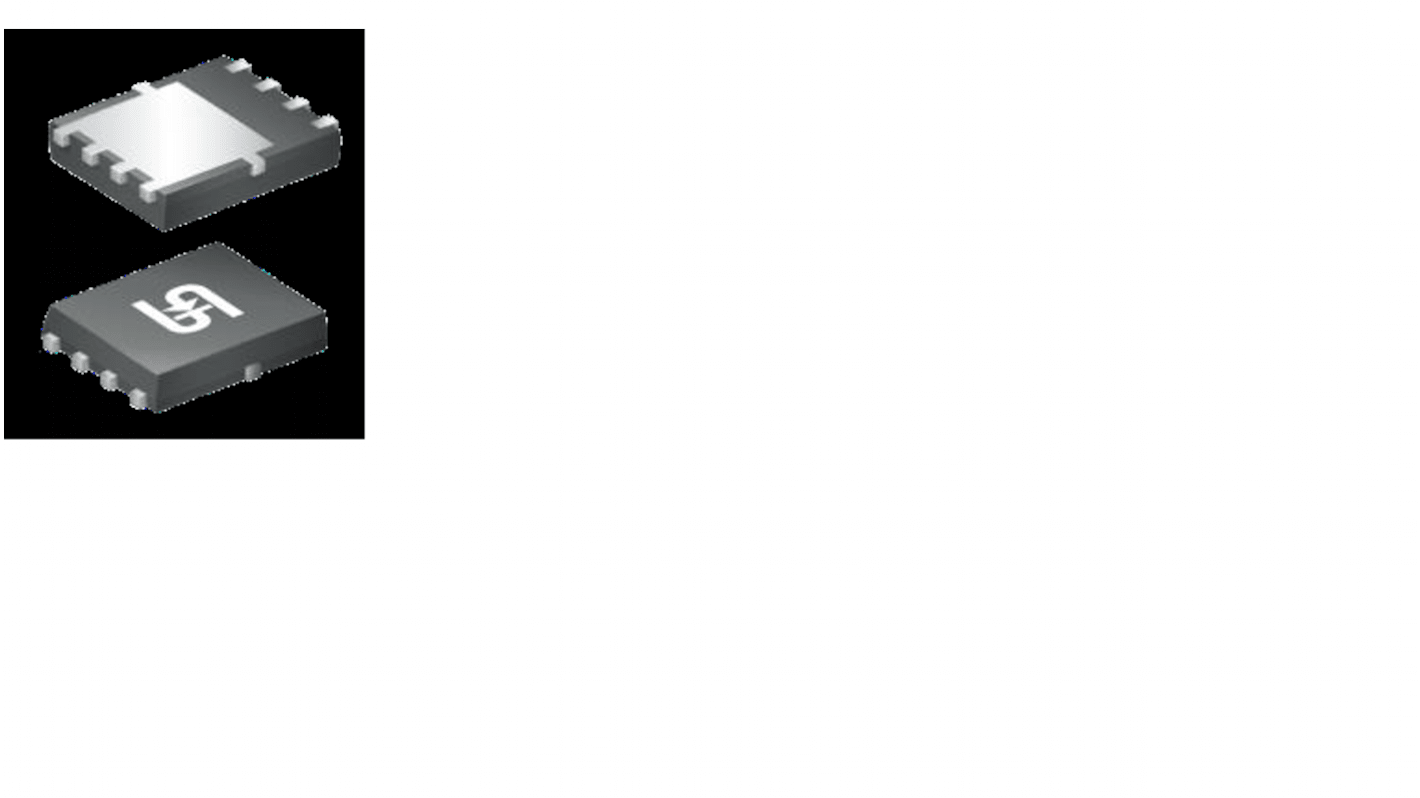

Taiwan Semiconductor TSM025 Type N-Channel MOSFET, 124 A, 30 V Enhancement, 8-Pin PDFN56
- RS Stock No.:
- 216-9655
- Mfr. Part No.:
- TSM036N03PQ56
- Brand:
- Taiwan Semiconductor
Subtotal (1 reel of 2500 units)*
£1,192.50
(exc. VAT)
£1,430.00
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 2,500 unit(s), ready to ship
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.477 | £1,192.50 |
*price indicative
- RS Stock No.:
- 216-9655
- Mfr. Part No.:
- TSM036N03PQ56
- Brand:
- Taiwan Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Taiwan Semiconductor | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 124A | |
| Maximum Drain Source Voltage Vds | 30V | |
| Series | TSM025 | |
| Package Type | PDFN56 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 3.6mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 83W | |
| Typical Gate Charge Qg @ Vgs | 50nC | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | IEC 61249-2-21, WEEE 2002/96/EC, RoHS 2011/65/EU | |
| Length | 6mm | |
| Height | 1.05mm | |
| Width | 3.78 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Taiwan Semiconductor | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 124A | ||
Maximum Drain Source Voltage Vds 30V | ||
Series TSM025 | ||
Package Type PDFN56 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 3.6mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 83W | ||
Typical Gate Charge Qg @ Vgs 50nC | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals IEC 61249-2-21, WEEE 2002/96/EC, RoHS 2011/65/EU | ||
Length 6mm | ||
Height 1.05mm | ||
Width 3.78 mm | ||
Automotive Standard No | ||
The Taiwan semiconductor single N channel power MOSFET transistors, stands for ’Metal Oxide Semiconductor Field-Effect Transistors’. MOSFETs are transistor devices which are controlled by a capacitor. The "Field-Effect" means that they are controlled by voltage. The aim of a MOSFET is to control the flow of the current passing through from the source to the drain terminals.
Low RDS(ON) to minimize conductive losses Low gate charge for fast power switching 100% UIS and Rg tested
