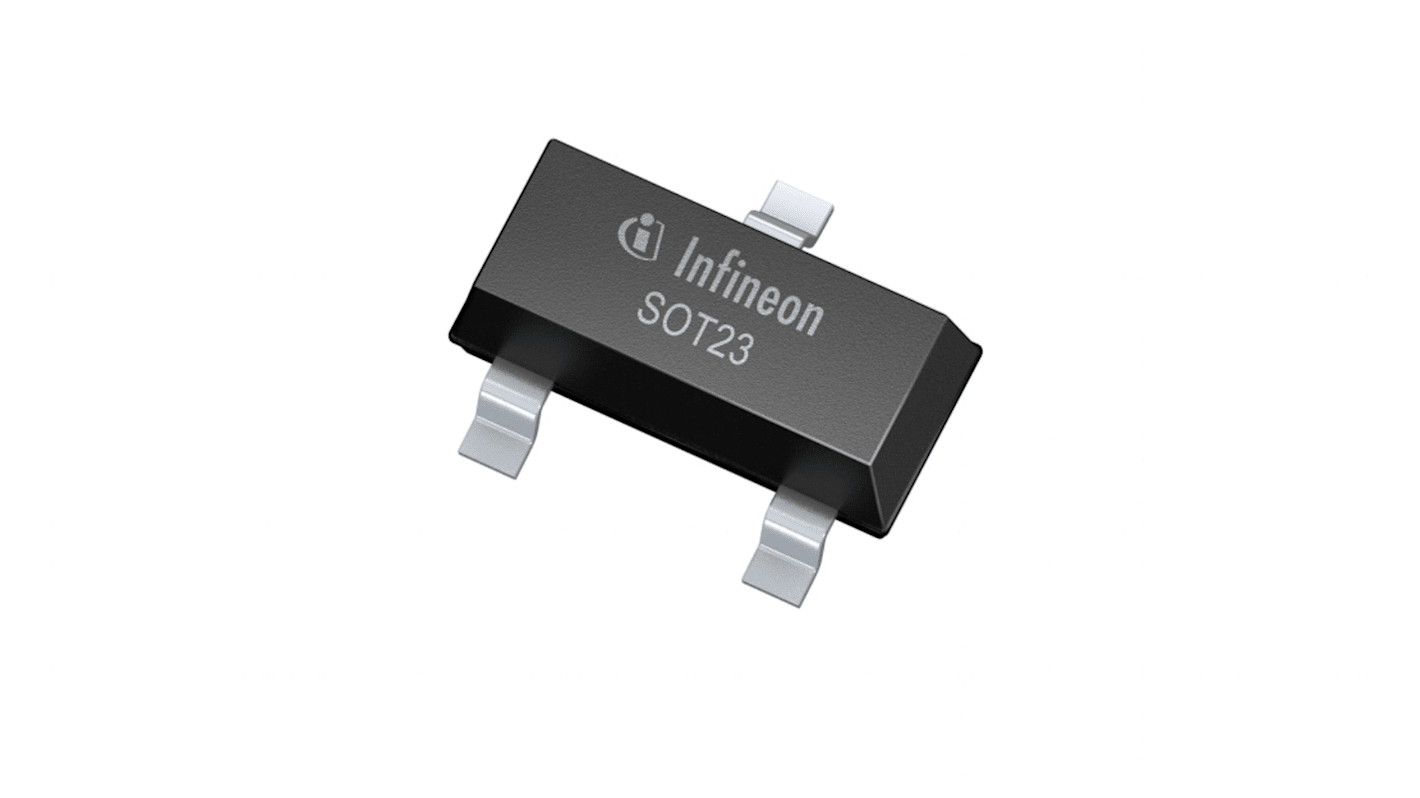

Infineon SIPMOS Type N-Channel MOSFET, 200 mA, 60 V Enhancement, 3-Pin SOT-23
- RS Stock No.:
- 214-4336
- Mfr. Part No.:
- BSS7728NH6327XTSA2
- Brand:
- Infineon
Bulk discount available
Subtotal (1 reel of 3000 units)*
£138.00
(exc. VAT)
£165.00
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 72,000 unit(s), ready to ship
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | £0.046 | £138.00 |
| 6000 - 12000 | £0.043 | £129.00 |
| 15000 + | £0.042 | £126.00 |
*price indicative
- RS Stock No.:
- 214-4336
- Mfr. Part No.:
- BSS7728NH6327XTSA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 200mA | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | SOT-23 | |
| Series | SIPMOS | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 5Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Typical Gate Charge Qg @ Vgs | 1nC | |
| Maximum Power Dissipation Pd | 0.36W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Width | 1.4 mm | |
| Length | 3.04mm | |
| Height | 1.12mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 200mA | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type SOT-23 | ||
Series SIPMOS | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 5Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Typical Gate Charge Qg @ Vgs 1nC | ||
Maximum Power Dissipation Pd 0.36W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Width 1.4 mm | ||
Length 3.04mm | ||
Height 1.12mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
This Infineon SIPMOS Small signal MOSFETis ideally suited for space-constrained automotive and/or non-automotive applications. They can be found in almost all applications e.g. battery protection, battery charging, LED lighting and so on.
It is Halogen-free according to IEC61249-2-21
