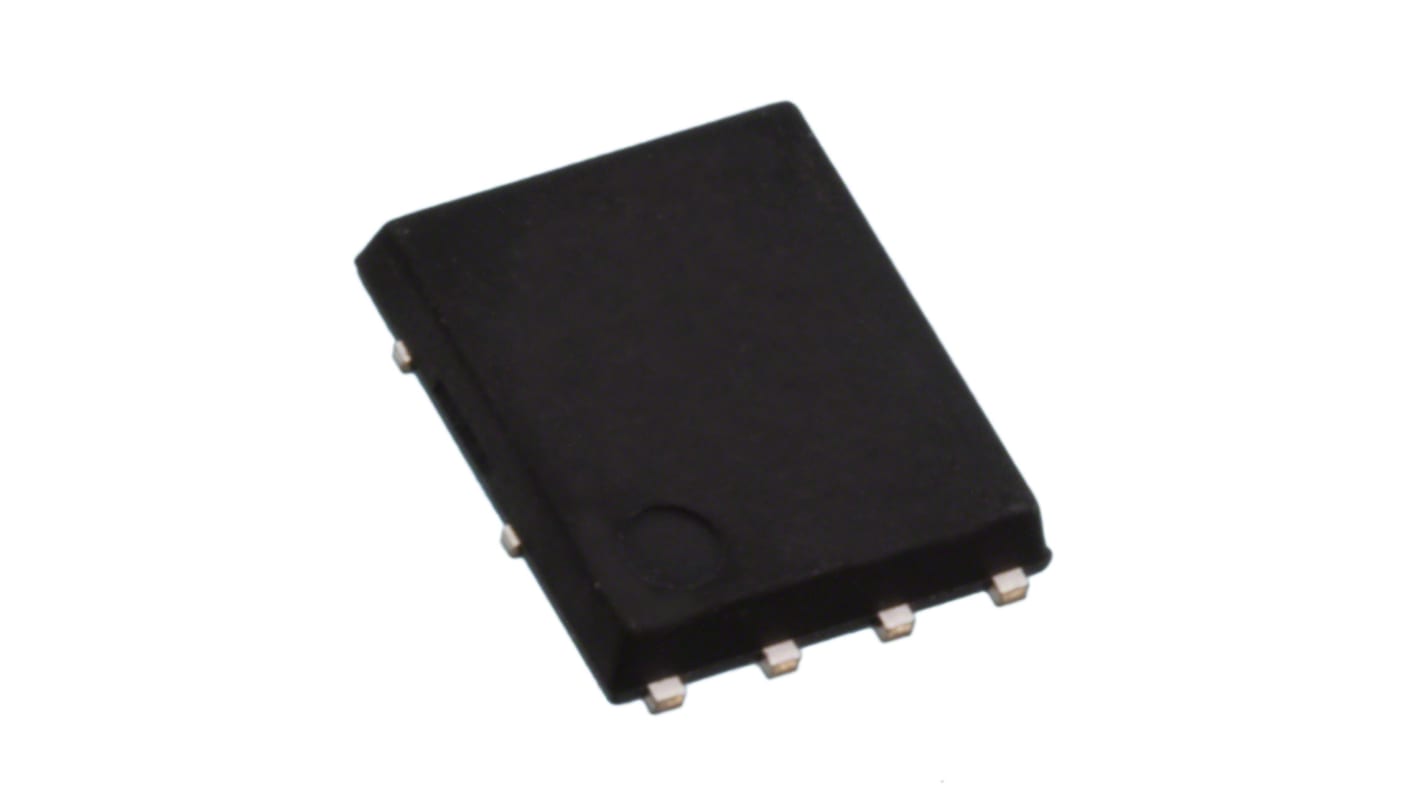

DiodesZetex DMTH10H4M6SPS Type N-Channel MOSFET, 100 A, 100 V Enhancement, 8-Pin PowerDI5060 DMTH10H4M6SPS-13
- RS Stock No.:
- 213-9230
- Mfr. Part No.:
- DMTH10H4M6SPS-13
- Brand:
- DiodesZetex
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£7.26
(exc. VAT)
£8.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,465 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.452 | £7.26 |
| 50 - 95 | £1.244 | £6.22 |
| 100 - 245 | £1.088 | £5.44 |
| 250 - 995 | £1.066 | £5.33 |
| 1000 + | £0.872 | £4.36 |
*price indicative
- RS Stock No.:
- 213-9230
- Mfr. Part No.:
- DMTH10H4M6SPS-13
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 100A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Package Type | PowerDI5060 | |
| Series | DMTH10H4M6SPS | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 4.6mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 136W | |
| Forward Voltage Vf | 1.2V | |
| Maximum Operating Temperature | 175°C | |
| Length | 6.15mm | |
| Standards/Approvals | No | |
| Height | 1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 100A | ||
Maximum Drain Source Voltage Vds 100V | ||
Package Type PowerDI5060 | ||
Series DMTH10H4M6SPS | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 4.6mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 136W | ||
Forward Voltage Vf 1.2V | ||
Maximum Operating Temperature 175°C | ||
Length 6.15mm | ||
Standards/Approvals No | ||
Height 1mm | ||
Automotive Standard No | ||
The DiodesZetex DMTH10H4M6SPS series is a N-channel MOSFET designed to minimize the on-state resistance, maintain superior switching performance which makes it ideal for high efficiency power management applications.
Low input capacitance
Fast switching speed
