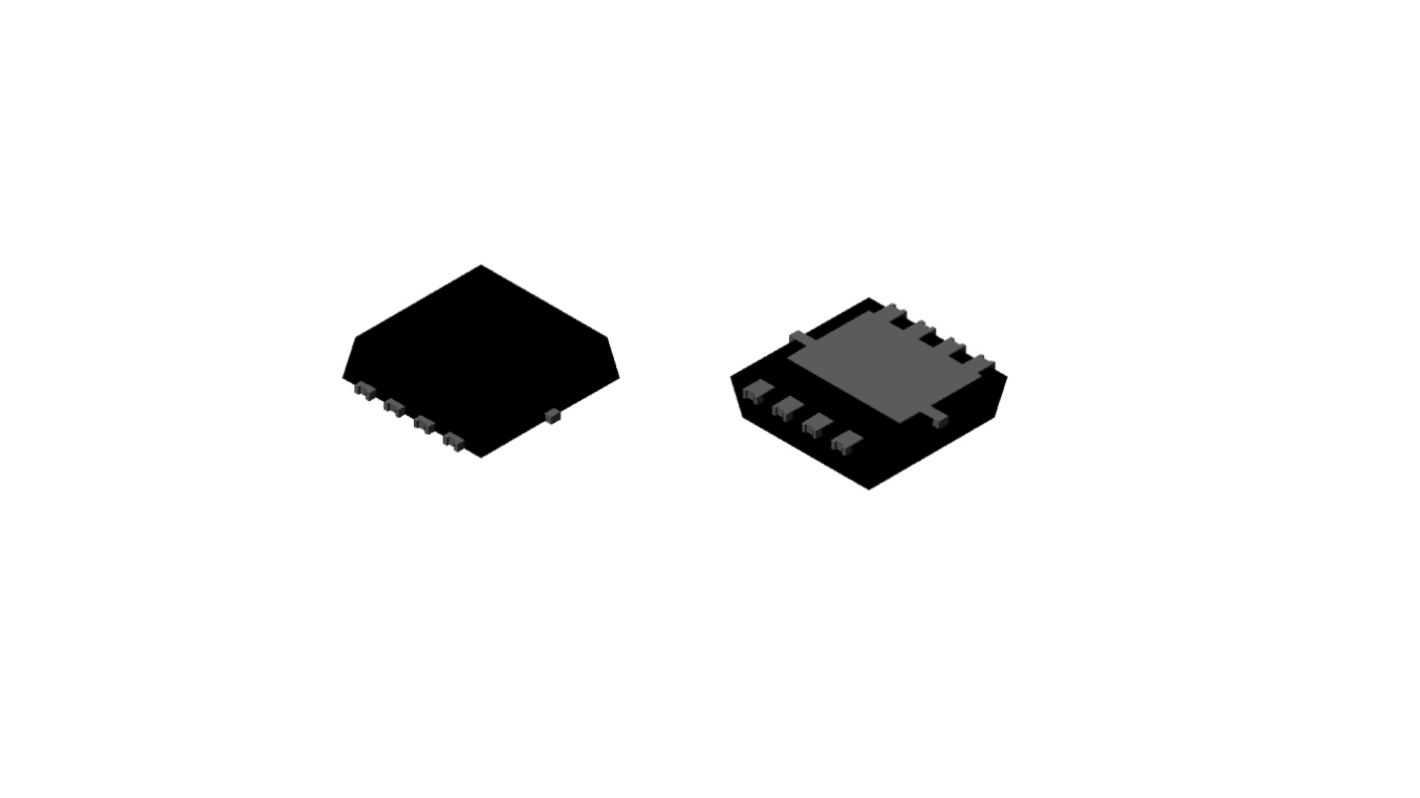

Diodes Inc DMN10H220LFVW N-Channel MOSFET, 11 A, 100 V, 8-Pin PowerDI3333-8 DMN10H220LFVW-7
- RS Stock No.:
- 213-9154
- Mfr. Part No.:
- DMN10H220LFVW-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 50 units)*
£11.95
(exc. VAT)
£14.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,450 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 50 | £0.239 | £11.95 |
| 100 - 200 | £0.209 | £10.45 |
| 250 - 450 | £0.205 | £10.25 |
| 500 - 950 | £0.186 | £9.30 |
| 1000 + | £0.167 | £8.35 |
*price indicative
- RS Stock No.:
- 213-9154
- Mfr. Part No.:
- DMN10H220LFVW-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 11 A | |
| Maximum Drain Source Voltage | 100 V | |
| Package Type | PowerDI3333-8 | |
| Series | DMN10H220LFVW | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 0.222 O | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2.5V | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Channel Type N | ||
Maximum Continuous Drain Current 11 A | ||
Maximum Drain Source Voltage 100 V | ||
Package Type PowerDI3333-8 | ||
Series DMN10H220LFVW | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 0.222 O | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.5V | ||
Number of Elements per Chip 1 | ||
The DiodesZetex DMN10H220LFVW series MOSFET is designed to minimize the on-state resistance, maintain superior switching performance which makes it ideal for high efficiency power management applications.
Low input capacitance
Fast switching speed
Fast switching speed
