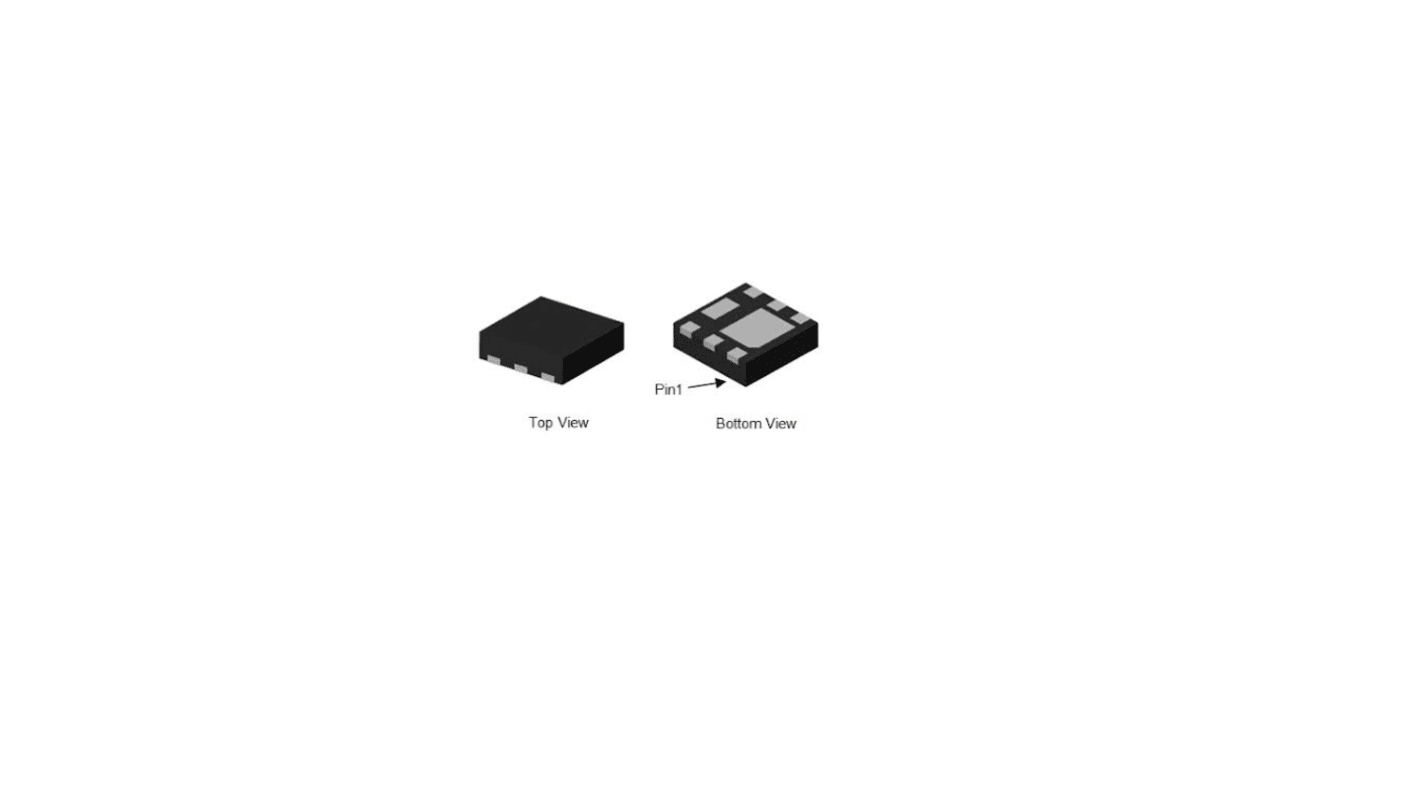

DiodesZetex DMN10H220LFDF Type N-Channel MOSFET, 2.2 A, 100 V Enhancement, 6-Pin UDFN

View all MOSFETs

Subtotal (1 reel of 3000 units)*

£219.00

(exc. VAT)

£264.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 04 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.073£219.00

*price indicative

RS Stock No.:
213-9151
Mfr. Part No.:
DMN10H220LFDF-7
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

2.2A

Maximum Drain Source Voltage Vds

100V

Package Type

UDFN

Series

DMN10H220LFDF

Mount Type

Surface

Pin Count

6

Maximum Drain Source Resistance Rds

225mΩ

Channel Mode

Enhancement

Forward Voltage Vf

1.3V

Maximum Power Dissipation Pd

1.1W

Minimum Operating Temperature

-55°C

Maximum Gate Source Voltage Vgs

20 V

Typical Gate Charge Qg @ Vgs

6.7nC

Maximum Operating Temperature

150°C

Length

2.05mm

Width

2.05 mm

Standards/Approvals

No

Height

0.63mm

Automotive Standard

AEC-Q101

The DiodesZetex DMN10H220LFDF series MOSFET is designed to minimize the on-state resistance, maintain superior switching performance which makes it ideal for high efficiency power management applications.

Low input capacitance

Fast switching speed
