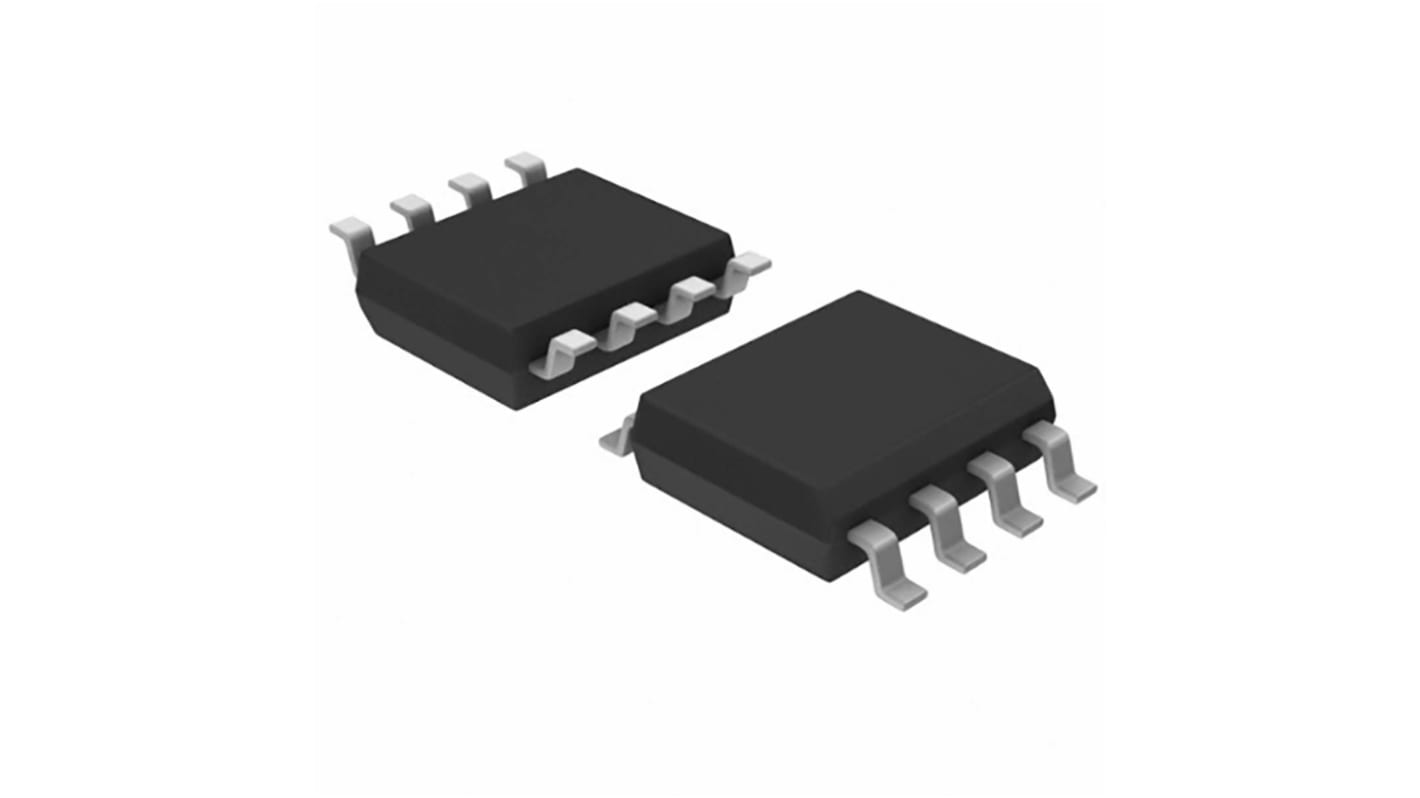

Diodes Inc DMN6022 N-Channel MOSFET, 6.9 A, 60 V, 8-Pin SO-8 DMN6022SSS-13
- RS Stock No.:
- 206-0090
- Mfr. Part No.:
- DMN6022SSS-13
- Brand:
- DiodesZetex
Subtotal (1 reel of 2500 units)*
£497.50
(exc. VAT)
£597.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.199 | £497.50 |
*price indicative
- RS Stock No.:
- 206-0090
- Mfr. Part No.:
- DMN6022SSS-13
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 6.9 A | |
| Maximum Drain Source Voltage | 60 V | |
| Package Type | SO-8 | |
| Series | DMN6022 | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 0.034 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3V | |
| Transistor Material | Si | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Channel Type N | ||
Maximum Continuous Drain Current 6.9 A | ||
Maximum Drain Source Voltage 60 V | ||
Package Type SO-8 | ||
Series DMN6022 | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 0.034 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3V | ||
Transistor Material Si | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- CN
The DiodesZetex 60V N- channel enhancement mode MOSFET is designed to minimize the on-state resistance yet maintain superior switching performance, making it ideal for high-efficiency power management application. Its gate-source voltage is 20 V with 1.3 W thermal power dissipation.
Low on-resistance
Low input capacitance
Low input capacitance
