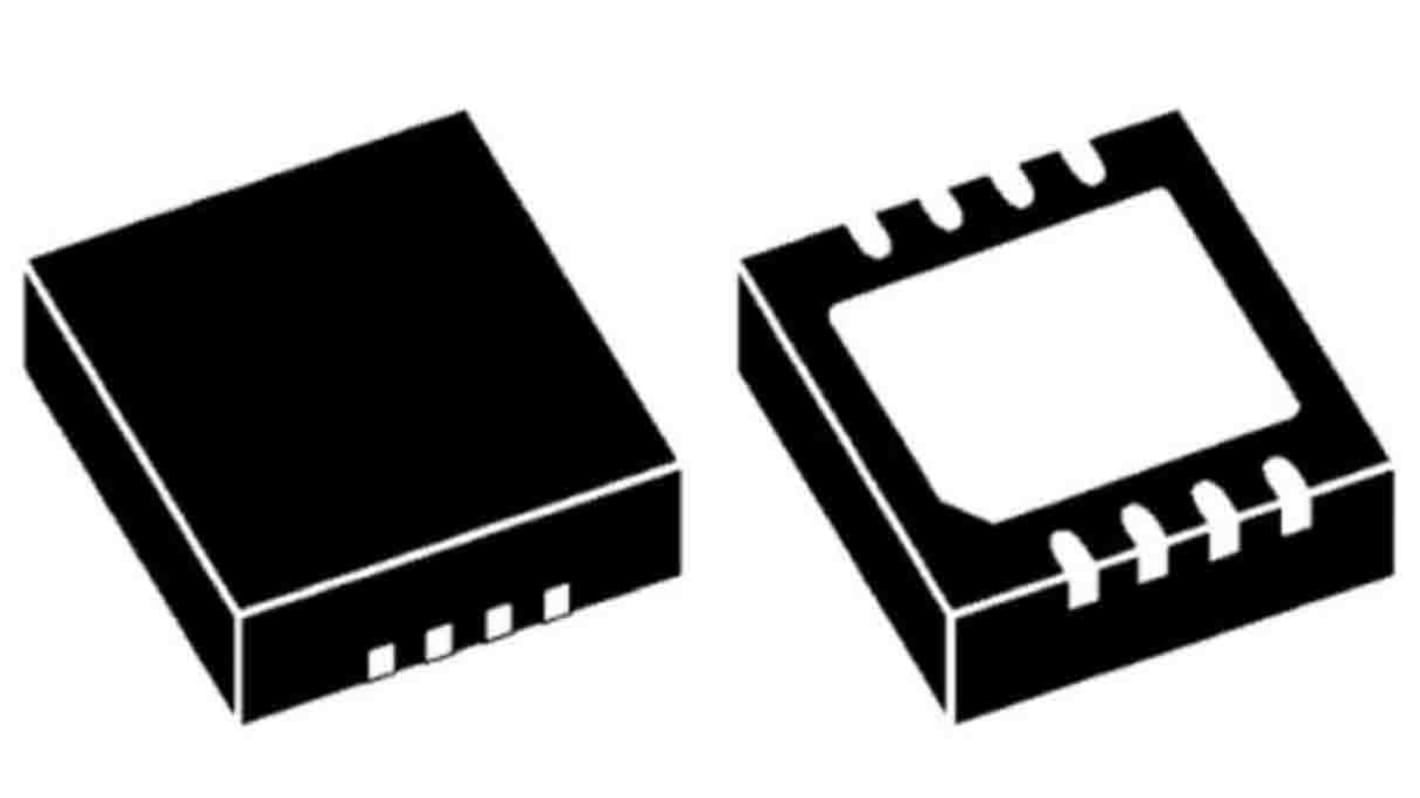

onsemi NTTF Type P-Channel MOSFET, 96 A, 30 V Depletion, 8-Pin PQFN NTTFS008P03P8Z
- RS Stock No.:
- 202-5723
- Mfr. Part No.:
- NTTFS008P03P8Z
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 25 units)*
£39.15
(exc. VAT)
£46.975
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 875 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £1.566 | £39.15 |
| 100 - 225 | £1.35 | £33.75 |
| 250 + | £1.17 | £29.25 |
*price indicative
- RS Stock No.:
- 202-5723
- Mfr. Part No.:
- NTTFS008P03P8Z
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type P | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 96A | |
| Maximum Drain Source Voltage Vds | 30V | |
| Package Type | PQFN | |
| Series | NTTF | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 3.8mΩ | |
| Channel Mode | Depletion | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 25 V | |
| Maximum Power Dissipation Pd | 50W | |
| Typical Gate Charge Qg @ Vgs | 134nC | |
| Maximum Operating Temperature | 150°C | |
| Length | 3.4mm | |
| Standards/Approvals | No | |
| Height | 3.4mm | |
| Width | 0.8 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type P | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 96A | ||
Maximum Drain Source Voltage Vds 30V | ||
Package Type PQFN | ||
Series NTTF | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 3.8mΩ | ||
Channel Mode Depletion | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 25 V | ||
Maximum Power Dissipation Pd 50W | ||
Typical Gate Charge Qg @ Vgs 134nC | ||
Maximum Operating Temperature 150°C | ||
Length 3.4mm | ||
Standards/Approvals No | ||
Height 3.4mm | ||
Width 0.8 mm | ||
Automotive Standard No | ||
The ON Semiconductor Single P-Channel MOSFET runs on -30 Volts and -96 ampere. It can be used on power load switch, Protection for reverse current, Over voltage and reverse negative voltage, Battery management applications.
Space saving
Excellent thermal conduction
Pb free
Halogen free
RoHS compliant
