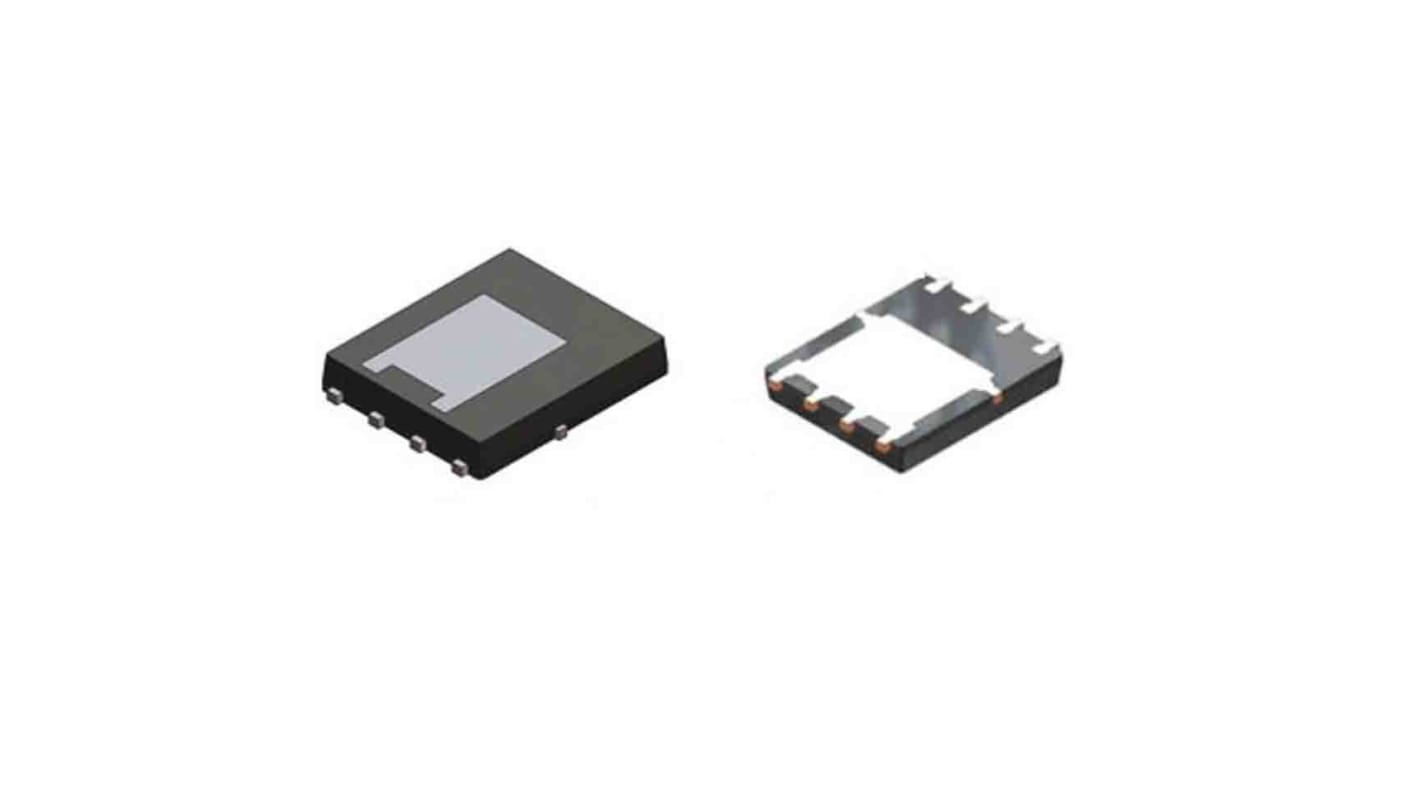

onsemi NTMFS Type N-Channel MOSFET, 136 A, 80 V Enhancement, 8-Pin DFN NTMFSC004N08MC
- RS Stock No.:
- 202-5712
- Mfr. Part No.:
- NTMFSC004N08MC
- Brand:
- onsemi
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£20.81
(exc. VAT)
£24.97
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 380 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £2.081 | £20.81 |
| 100 - 240 | £1.794 | £17.94 |
| 250 + | £1.556 | £15.56 |
*price indicative
- RS Stock No.:
- 202-5712
- Mfr. Part No.:
- NTMFSC004N08MC
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 136A | |
| Maximum Drain Source Voltage Vds | 80V | |
| Series | NTMFS | |
| Package Type | DFN | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 4mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 1.3V | |
| Typical Gate Charge Qg @ Vgs | 43.4nC | |
| Maximum Power Dissipation Pd | 127W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Height | 6.25mm | |
| Standards/Approvals | RoHS, MSL1 | |
| Length | 5.1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 136A | ||
Maximum Drain Source Voltage Vds 80V | ||
Series NTMFS | ||
Package Type DFN | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 4mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 1.3V | ||
Typical Gate Charge Qg @ Vgs 43.4nC | ||
Maximum Power Dissipation Pd 127W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Height 6.25mm | ||
Standards/Approvals RoHS, MSL1 | ||
Length 5.1mm | ||
Automotive Standard No | ||
The ON Semiconductor Power single N-Channel Power MOSFET runs with 136 Ampere and 80 Volts. It can be used in Orring FET/Load Switching, Synchronous Rectifier, DC-DC Conversion applications.
Advanced dual sided cooled packaging
Pb free
RoHS compliant
MSL1 robust packaging design
