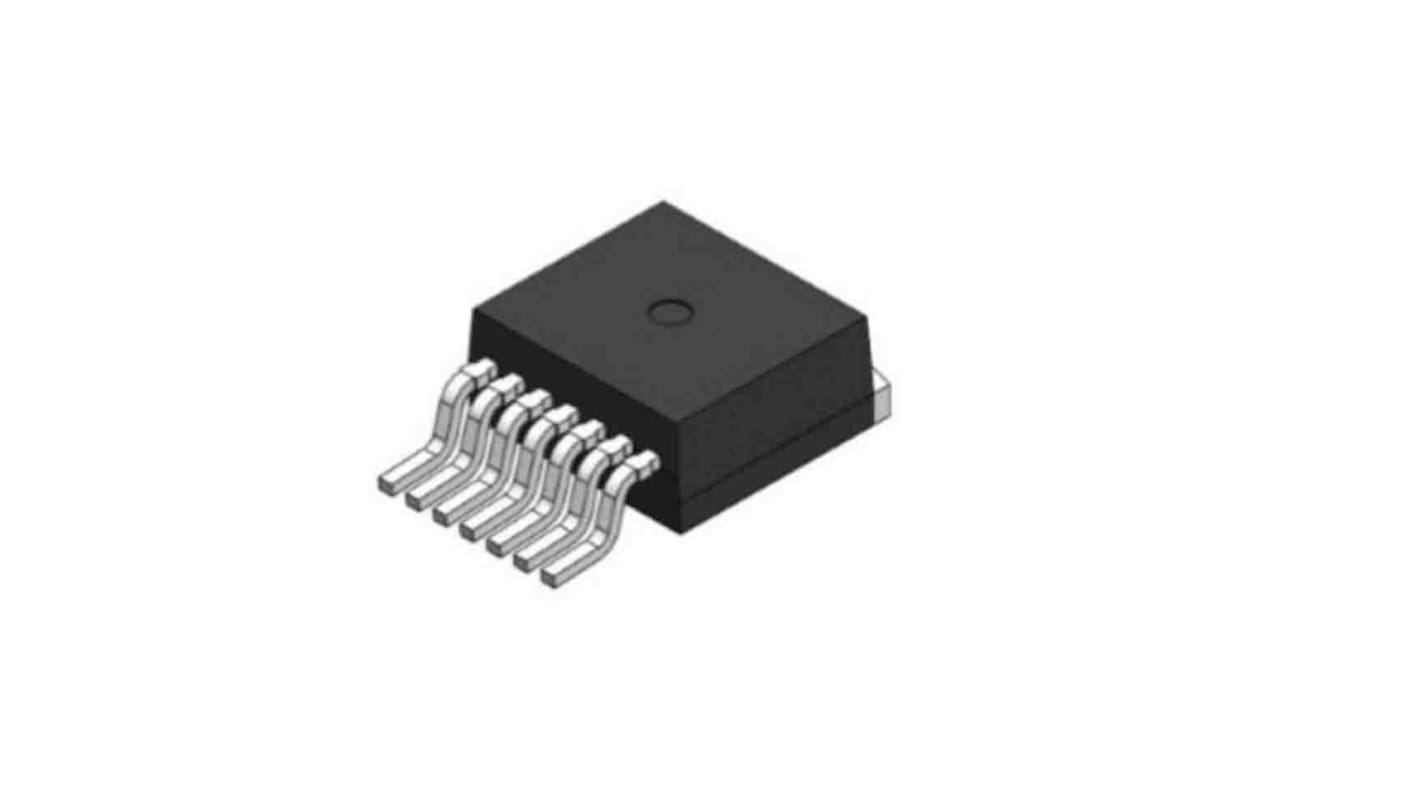

onsemi NTB Type N-Channel MOSFET, 60 A, 1200 V Enhancement, 7-Pin TO-263
- RS Stock No.:
- 202-5690P
- Mfr. Part No.:
- NTBG040N120SC1
- Brand:
- onsemi
Bulk discount available
View bulk pricing optionsSubtotal 50 units (supplied on a continuous strip)*
£657.50
(exc. VAT)
£789.00
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 725 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 + | £13.15 |
*price indicative
- RS Stock No.:
- 202-5690P
- Mfr. Part No.:
- NTBG040N120SC1
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 60A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Series | NTB | |
| Package Type | TO-263 | |
| Mount Type | Surface | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance Rds | 40mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 3.7V | |
| Typical Gate Charge Qg @ Vgs | 106nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 357W | |
| Maximum Operating Temperature | 175°C | |
| Height | 15.7mm | |
| Standards/Approvals | RoHS | |
| Length | 10.2mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 60A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Series NTB | ||
Package Type TO-263 | ||
Mount Type Surface | ||
Pin Count 7 | ||
Maximum Drain Source Resistance Rds 40mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 3.7V | ||
Typical Gate Charge Qg @ Vgs 106nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 357W | ||
Maximum Operating Temperature 175°C | ||
Height 15.7mm | ||
Standards/Approvals RoHS | ||
Length 10.2mm | ||
Automotive Standard No | ||
Silicon Carbide (SiC) MOSFET - EliteSiC, 40 mohm, 1200 V, M1, D2PAK−7L Silicon Carbide (SiC) MOSFET - EliteSiC, 40 mohm, 1200 V, M1, D2PAK-7L
The ON Semiconductor Silicon Carbide Power MOSFET runs with 60 Ampere and 1200 Volts. It can be used in uninterruptible power supply, DC or DC converter, Boost inverter.
40mO drain to source on resistance
Ultra low gate charge
100% avalanche tested
Pb free
RoHS compliant
