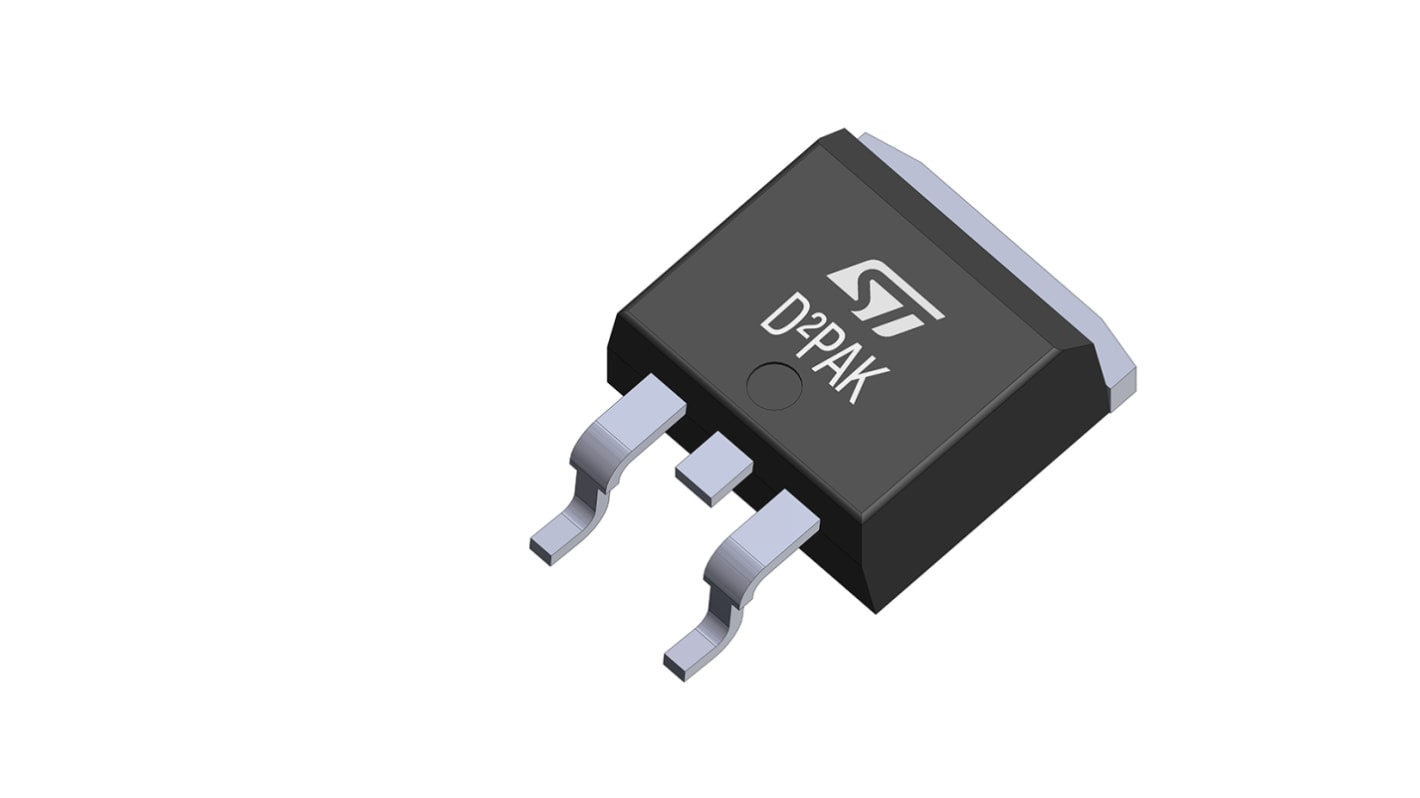

STMicroelectronics N-Channel MOSFET Transistor, 53 A, 3-Pin D2PAK STB45N30M5
- RS Stock No.:
- 192-4977
- Mfr. Part No.:
- STB45N30M5
- Brand:
- STMicroelectronics
Subtotal (1 pack of 2 units)*
£11.97
(exc. VAT)
£14.364
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 29 January 2026
Units | Per unit | Per Pack* |
---|---|---|
2 - 8 | £5.985 | £11.97 |
10 - 18 | £5.625 | £11.25 |
20 - 48 | £5.315 | £10.63 |
50 - 98 | £5.035 | £10.07 |
100 + | £4.785 | £9.57 |
*price indicative
- RS Stock No.:
- 192-4977
- Mfr. Part No.:
- STB45N30M5
- Brand:
- STMicroelectronics
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Channel Type | N | |
Maximum Continuous Drain Current | 53 A | |
Package Type | D2PAK (TO-263) | |
Mounting Type | Surface Mount | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 40 mΩ | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 5V | |
Minimum Gate Threshold Voltage | 3V | |
Maximum Power Dissipation | 250 W | |
Transistor Configuration | Single | |
Maximum Gate Source Voltage | ±25 V | |
Length | 10.4mm | |
Width | 9.35mm | |
Number of Elements per Chip | 1 | |
Maximum Operating Temperature | +150 °C | |
Typical Gate Charge @ Vgs | 95 nC @ 10 V | |
Forward Diode Voltage | 1.5V | |
Minimum Operating Temperature | -55 °C | |
Height | 4.37mm | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Channel Type N | ||
Maximum Continuous Drain Current 53 A | ||
Package Type D2PAK (TO-263) | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 40 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 5V | ||
Minimum Gate Threshold Voltage 3V | ||
Maximum Power Dissipation 250 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage ±25 V | ||
Length 10.4mm | ||
Width 9.35mm | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature +150 °C | ||
Typical Gate Charge @ Vgs 95 nC @ 10 V | ||
Forward Diode Voltage 1.5V | ||
Minimum Operating Temperature -55 °C | ||
Height 4.37mm | ||
- COO (Country of Origin):
- CN
Low gate charge and input capacitance
Excellent switching performance
