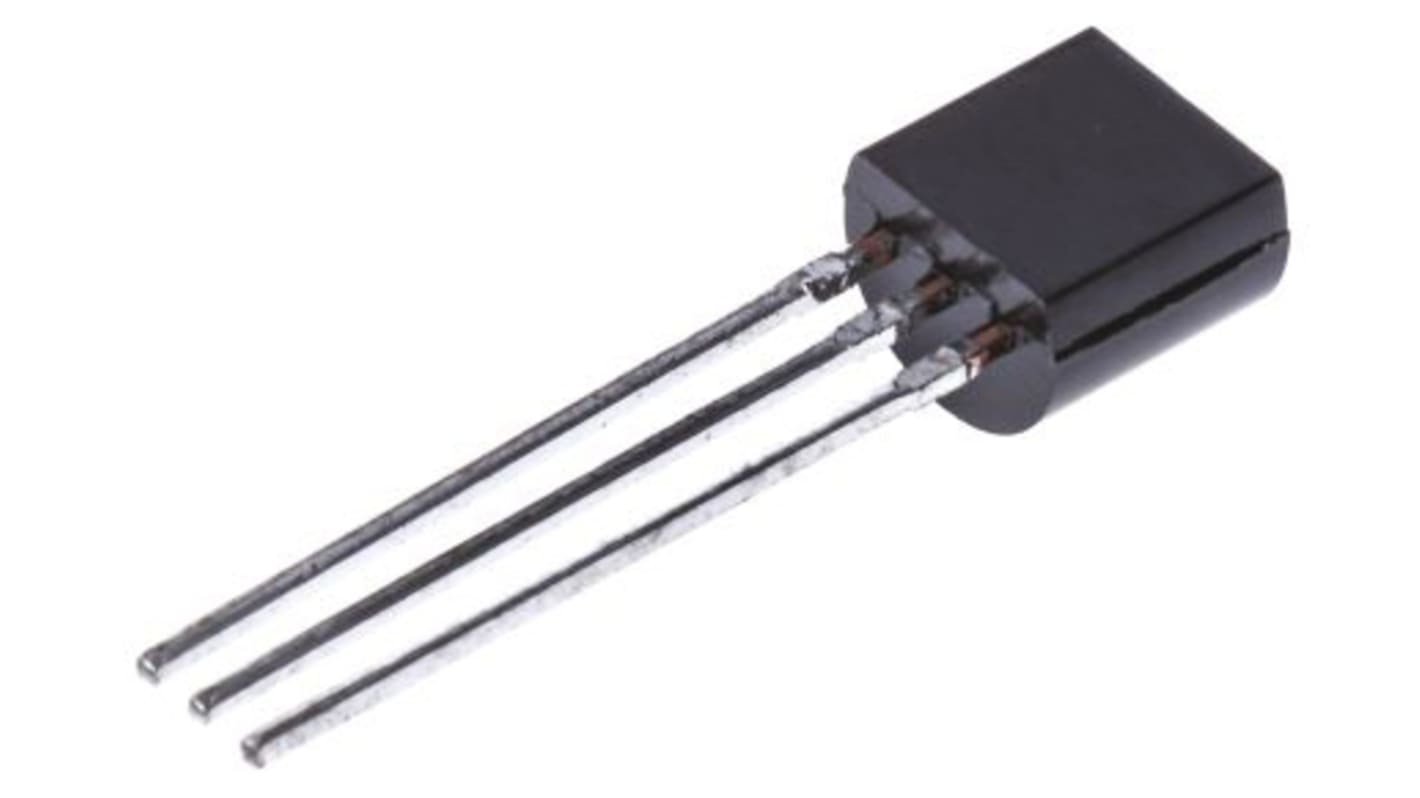

onsemi BS170 1 Type N-Channel MOSFET, 0.5 A, 60 V, 3-Pin TO-92
- RS Stock No.:
- 186-7140
- Mfr. Part No.:
- BS170-D27Z
- Brand:
- onsemi
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 2000 units)*
£188.00
(exc. VAT)
£226.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,000 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 - 2000 | £0.094 | £188.00 |
| 4000 - 8000 | £0.092 | £184.00 |
| 10000 - 14000 | £0.088 | £176.00 |
| 16000 - 18000 | £0.086 | £172.00 |
| 20000 + | £0.084 | £168.00 |
*price indicative
- RS Stock No.:
- 186-7140
- Mfr. Part No.:
- BS170-D27Z
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 0.5A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Series | BS170 | |
| Package Type | TO-92 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 5Ω | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 350mW | |
| Maximum Operating Temperature | 150°C | |
| Height | 5.2mm | |
| Length | 4.32mm | |
| Standards/Approvals | No | |
| Number of Elements per Chip | 1 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 0.5A | ||
Maximum Drain Source Voltage Vds 60V | ||
Series BS170 | ||
Package Type TO-92 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 5Ω | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 350mW | ||
Maximum Operating Temperature 150°C | ||
Height 5.2mm | ||
Length 4.32mm | ||
Standards/Approvals No | ||
Number of Elements per Chip 1 | ||
Automotive Standard No | ||
MOSFET, Small Signal, 500 mA, 60 V
Applications
This product is general usage and suitable for many different applications
