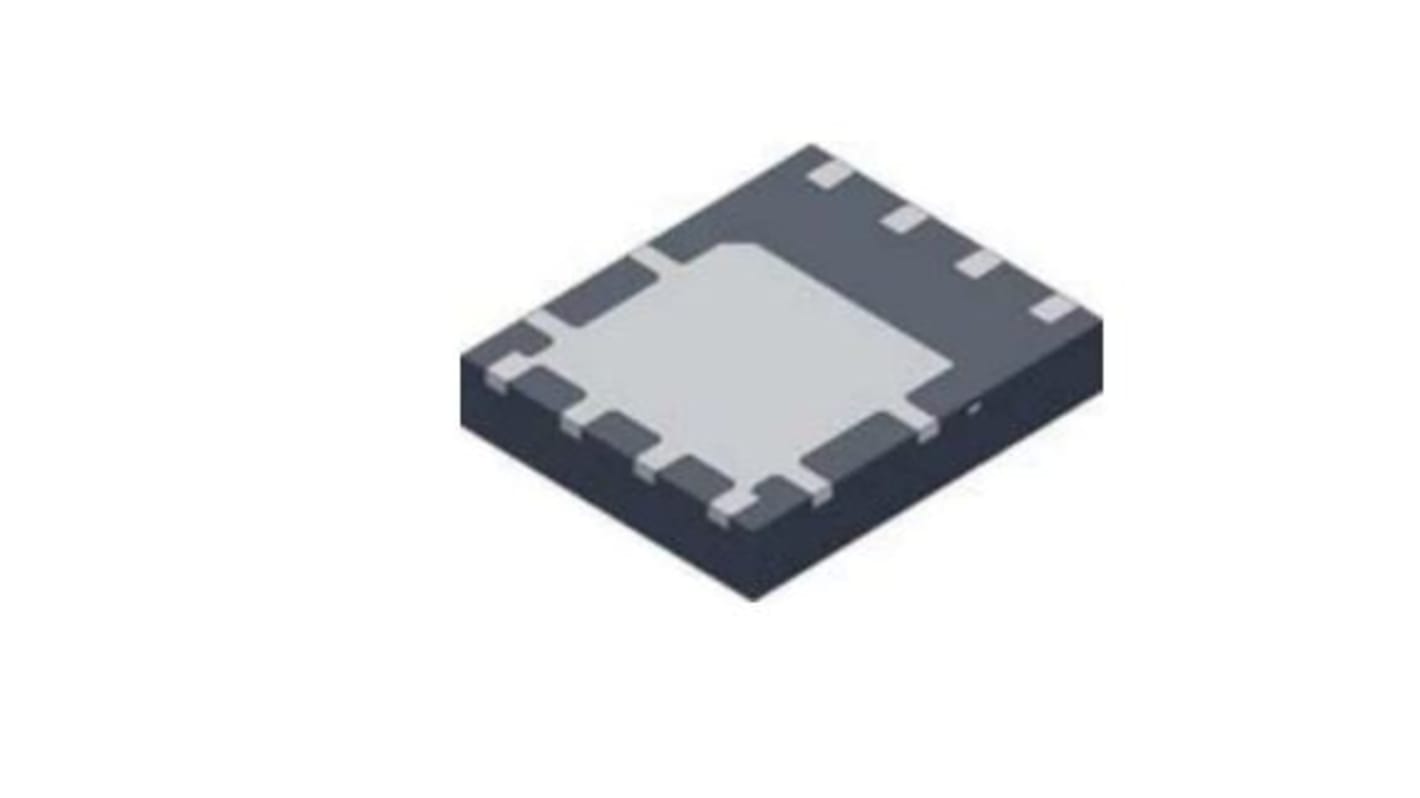

onsemi NTMTS001N06CL N-Channel MOSFET, 398.2 A, 60 V Enhancement, 8-Pin DFN NTMTS001N06CLTXG
- RS Stock No.:
- 186-1275
- Mfr. Part No.:
- NTMTS001N06CLTXG
- Brand:
- onsemi
Subtotal (1 reel of 3000 units)*
£3,789.00
(exc. VAT)
£4,548.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 October 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £1.263 | £3,789.00 |
*price indicative
- RS Stock No.:
- 186-1275
- Mfr. Part No.:
- NTMTS001N06CLTXG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 398.2A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Series | NTMTS001N06CL | |
| Package Type | DFN | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 1.05mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 5W | |
| Typical Gate Charge Qg @ Vgs | 165nC | |
| Forward Voltage Vf | 1.2V | |
| Maximum Gate Source Voltage Vgs | 20V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Width | 8mm | |
| Length | 8.1mm | |
| Height | 1.15mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 398.2A | ||
Maximum Drain Source Voltage Vds 60V | ||
Series NTMTS001N06CL | ||
Package Type DFN | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 1.05mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 5W | ||
Typical Gate Charge Qg @ Vgs 165nC | ||
Forward Voltage Vf 1.2V | ||
Maximum Gate Source Voltage Vgs 20V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Width 8mm | ||
Length 8.1mm | ||
Height 1.15mm | ||
Automotive Standard No | ||
Non Compliant
Small Footprint (8x8 mm) for Compact Design
Low RDS(on) to Minimize Conduction Losses
Low QG and Capacitance to Minimize Driver Losses
Power 88 Package, Industry Standard
These Devices are Pb−Free, Halogen Free/BFR Free
