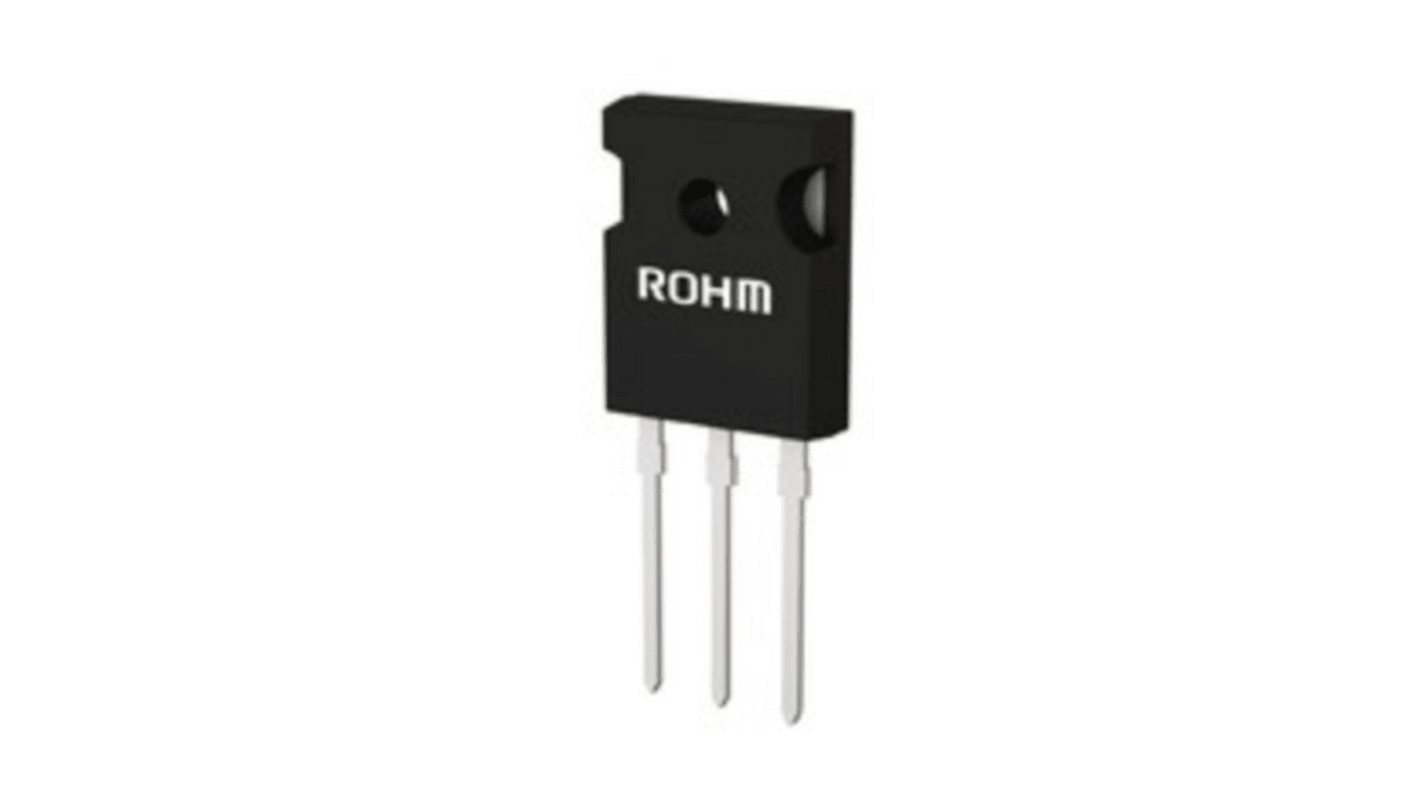

Name: ROHM R6520KNZ4 N-Channel MOSFET, 20 A, 650 V, 3-Pin TO-247 R6520KNZ4C13
Brand: ROHM
SKU: 183-5399
Price: 9.93 GBP
Availability: OutOfStock

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ROHM
	Channel Type	N
	Maximum Continuous Drain Current	20 A
	Maximum Drain Source Voltage	650 V
	Package Type	TO-247
	Series	R6520KNZ4
	Mounting Type	Through Hole
	Pin Count	3
	Maximum Drain Source Resistance	205 mΩ
	Channel Mode	Enhancement
	Maximum Gate Threshold Voltage	5V
	Minimum Gate Threshold Voltage	3V
	Maximum Power Dissipation	231 W
	Transistor Configuration	Single
	Maximum Gate Source Voltage	±30 V
	Length	16.24mm
	Maximum Operating Temperature	150 °C
	Number of Elements per Chip	1
	Width	5.22mm
	Typical Gate Charge @ Vgs	40 nC @ 10 V
	Minimum Operating Temperature	-55 °C
	Height	21.25mm

	Select all
	Brand ROHM
	Channel Type N
	Maximum Continuous Drain Current 20 A
	Maximum Drain Source Voltage 650 V
	Package Type TO-247
	Series R6520KNZ4
	Mounting Type Through Hole
	Pin Count 3
	Maximum Drain Source Resistance 205 mΩ
	Channel Mode Enhancement
	Maximum Gate Threshold Voltage 5V
	Minimum Gate Threshold Voltage 3V
	Maximum Power Dissipation 231 W
	Transistor Configuration Single
	Maximum Gate Source Voltage ±30 V
	Length 16.24mm
	Maximum Operating Temperature 150 °C
	Number of Elements per Chip 1
	Width 5.22mm
	Typical Gate Charge @ Vgs 40 nC @ 10 V
	Minimum Operating Temperature -55 °C
	Height 21.25mm

Datasheet R6520KNZ4C13

COO (Country of Origin):: TH

R6520KNZ4 is a power MOSFET for switching applications.

Low on-resistance
Fast switching speed
Parallel use is easy
Pb-free plating
