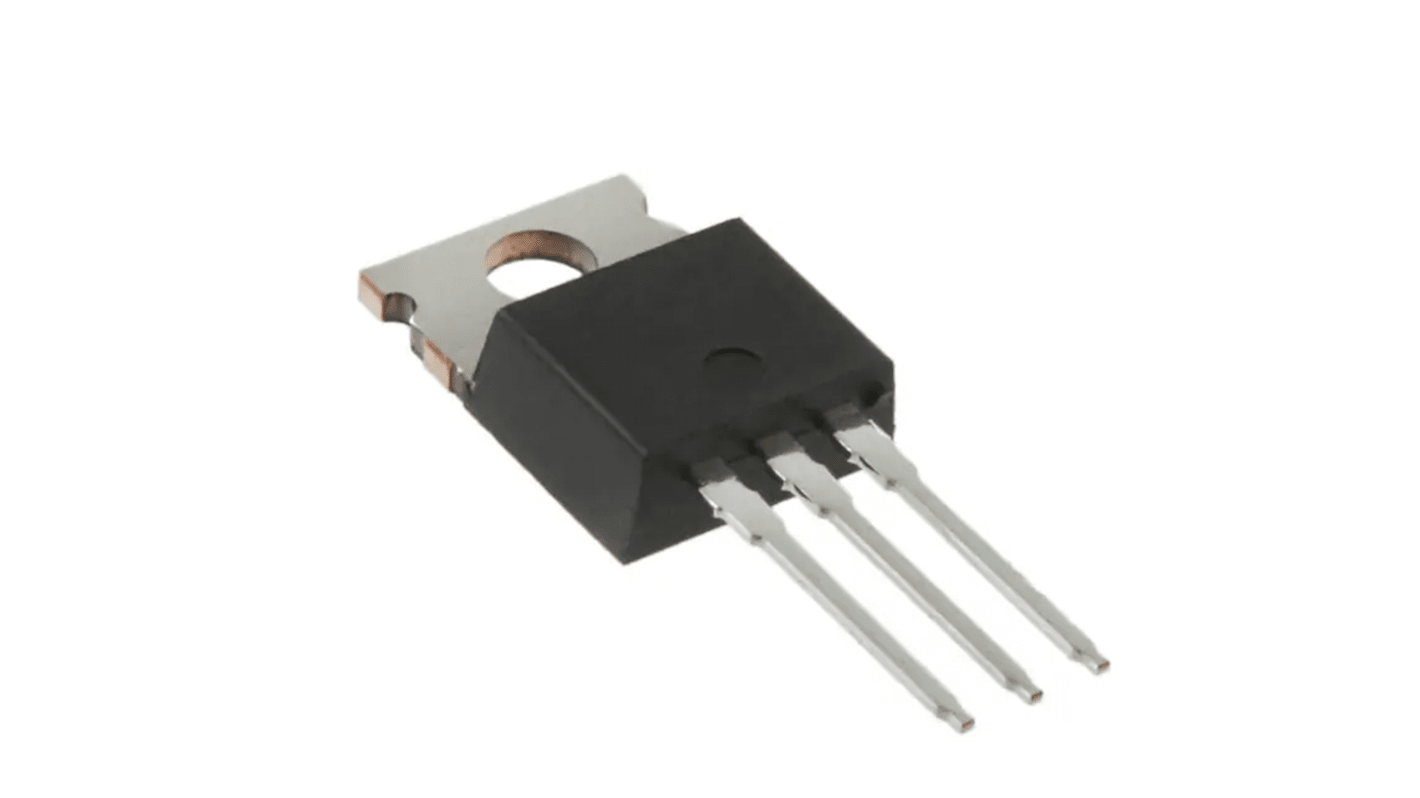

MOSFET Vishay IRL520PBF
RS Stock No.:
180-8358
Mfr. Part No.:
IRL520PBF
Brand:
Vishay
View all MOSFETs
Discontinued product
RS Stock No.:
180-8358
Mfr. Part No.:
IRL520PBF
Brand:
Vishay
Technical Reference
Legislation and Compliance
Product Details
Datasheet
RoHS Certificate of Compliance
Statement of conformity
COO (Country of Origin):
CN
The Vishay IRL520 is a N-channel power MOSFET having drain to source(Vds) voltage of 100V.The gate to source voltage(VGS) is 10V. It is having TO-220AB package. It offers drain to source resistance (RDS.) 0.27ohms at 5VGS.
Dynamic dV/dt rating
Repetitive avalanche rated
Logic level gate drive
