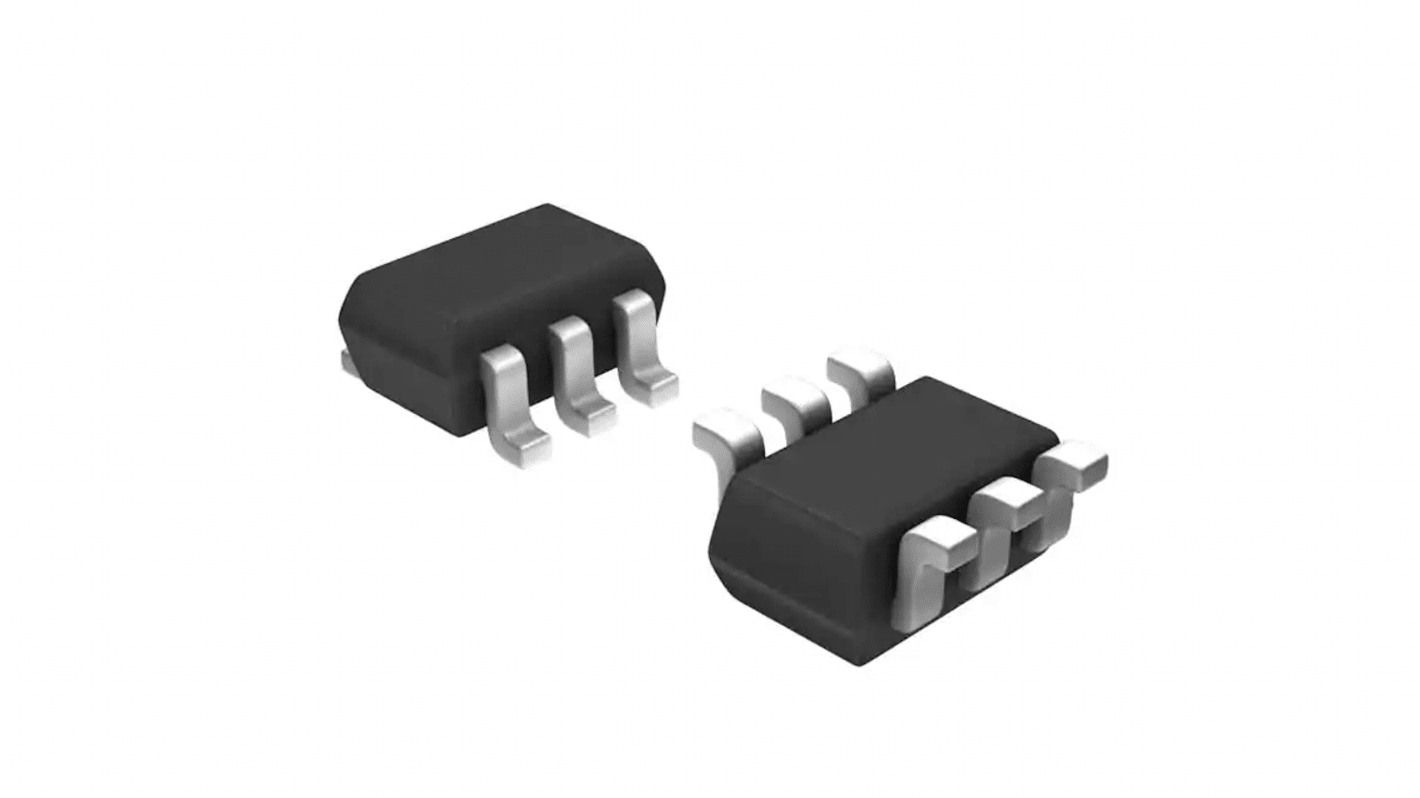

Vishay SiP32431 Type P-Channel MOSFET, 1.2 A, 5.5 V, 6-Pin SC-70 SIP32431DR3-T1GE3

RS Stock No.:: 180-7822
Mfr. Part No.:: SIP32431DR3-T1GE3
Brand:: Vishay

Vishay SiP32431 Type P-Channel MOSFET, 1.2 A, 5.5 V, 6-Pin SC-70 SIP32431DR3-T1GE3

Bulk discount available

Subtotal (1 pack of 25 units)*

£7.40

(exc. VAT)

£8.875

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 375 unit(s) shipping from 19 January 2026
Plus 2,925 unit(s) shipping from 26 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
25 - 225	£0.296	£7.40
250 - 600	£0.28	£7.00
625 - 1225	£0.251	£6.28
1250 - 2475	£0.18	£4.50
2500 +	£0.168	£4.20

*price indicative

RS Stock No.:: 180-7822
Mfr. Part No.:: SIP32431DR3-T1GE3
Brand:: Vishay

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Product Type	MOSFET
	Channel Type	Type P
	Maximum Continuous Drain Current Id	1.2A
	Maximum Drain Source Voltage Vds	5.5V
	Package Type	SC-70
	Series	SiP32431
	Mount Type	Surface
	Pin Count	6
	Maximum Drain Source Resistance Rds	147mΩ
	Minimum Operating Temperature	-40°C
	Maximum Power Dissipation Pd	250mW
	Maximum Operating Temperature	85°C
	Height	1.1mm
	Length	2.15mm
	Width	2.2 mm
	Standards/Approvals	No
	Automotive Standard	No

	Select all
	Brand Vishay
	Product Type MOSFET
	Channel Type Type P
	Maximum Continuous Drain Current Id 1.2A
	Maximum Drain Source Voltage Vds 5.5V
	Package Type SC-70
	Series SiP32431
	Mount Type Surface
	Pin Count 6
	Maximum Drain Source Resistance Rds 147mΩ
	Minimum Operating Temperature -40°C
	Maximum Power Dissipation Pd 250mW
	Maximum Operating Temperature 85°C
	Height 1.1mm
	Length 2.15mm
	Width 2.2 mm
	Standards/Approvals No
	Automotive Standard No

Datasheet

Vishay Load Switch

The Vishay TDFN4 P-channel slew rate controlled switch is a new age product with an ultra-low leakage, quiescent current slew rate control and reverse blocking capability. It has power dissipation of 250mW and drain-source resistance of 147mohm. It has an output current of 1.2A. The load switch features low input logic level to interface with low control voltage from microprocessors. The load switch follows logic high enable control. The compact package options, operation voltage range, and low operating current make it a good fit for battery power applications.

Features and Benefits

• 1.5V to 5.5V input voltage range

• Low on resistance RDS (on)

• No bias power rail required

• Operating temperature ranges between -40°C and 85°C

• Reverse blocking capability

• Slew rate controlled turn on time: 100μs

• Ultra low leakage and quiescent current: - VIN quiescent current = 0.01nA - VIN shutdown leakage = 0.20nA

Applications

• Battery powered devices

• Internet of things

• Portable Instruments

• Portable medical devices

• Security systems

• Smart meters

• Wearable

• Wireless sensor network

Certifications

• ANSI/ESD S20.20:2014

• BS EN 61340-5-1:2007
