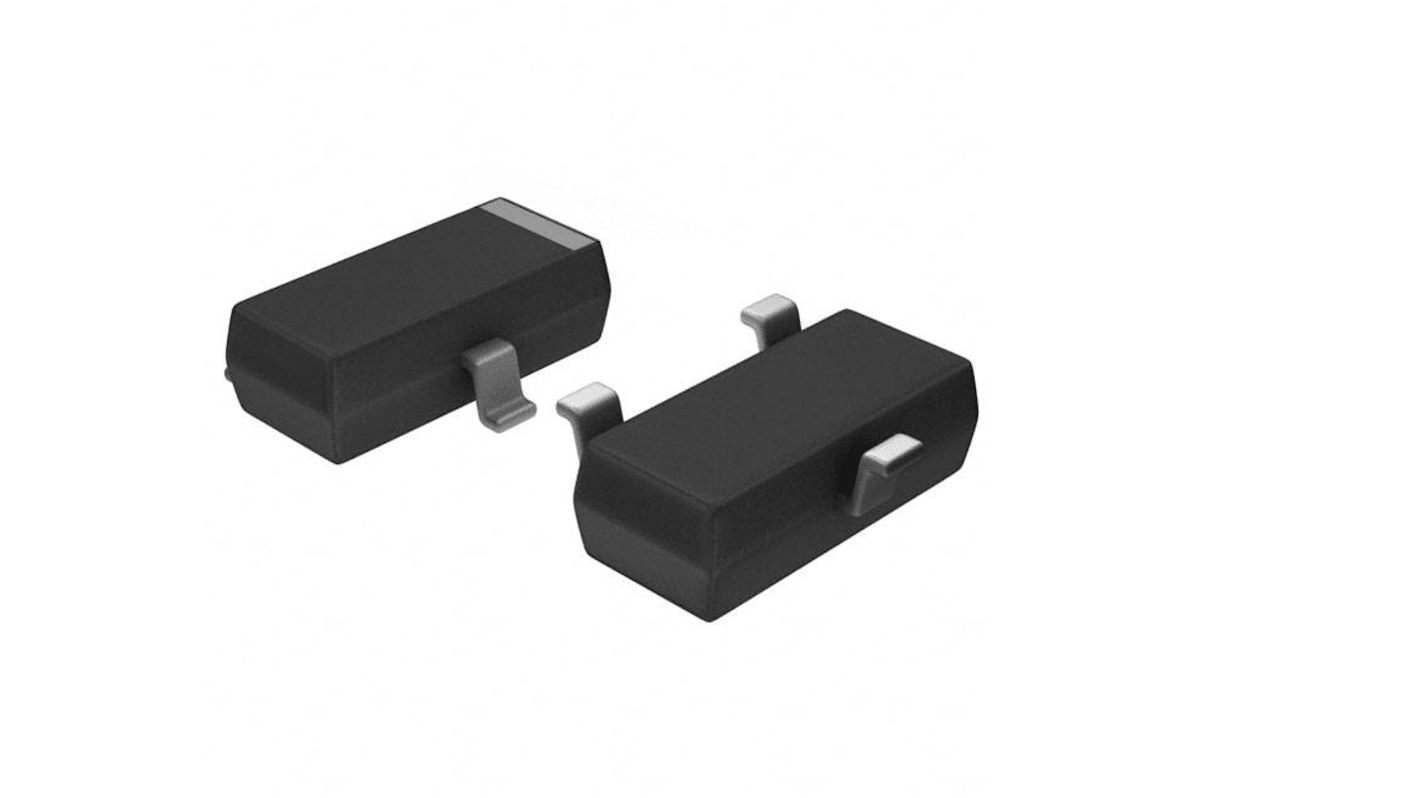

Vishay TrenchFET N-Channel MOSFET, 3.1 A, 100 V, 3-Pin SOT-23 SI2392ADS-T1-GE3
- RS Stock No.:
- 180-7811
- Mfr. Part No.:
- SI2392ADS-T1-GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 20 units)*
£6.74
(exc. VAT)
£8.08
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 2,020 unit(s), ready to ship
Units | Per unit | Per Pack* |
---|---|---|
20 - 180 | £0.337 | £6.74 |
200 - 480 | £0.253 | £5.06 |
500 - 980 | £0.219 | £4.38 |
1000 - 1980 | £0.203 | £4.06 |
2000 + | £0.158 | £3.16 |
*price indicative
- RS Stock No.:
- 180-7811
- Mfr. Part No.:
- SI2392ADS-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Channel Type | N | |
Maximum Continuous Drain Current | 3.1 A | |
Maximum Drain Source Voltage | 100 V | |
Series | TrenchFET | |
Package Type | SOT-23 | |
Mounting Type | Surface Mount | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 0.189 O | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 3V | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Vishay | ||
Channel Type N | ||
Maximum Continuous Drain Current 3.1 A | ||
Maximum Drain Source Voltage 100 V | ||
Series TrenchFET | ||
Package Type SOT-23 | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 0.189 O | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3V | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- CN
Vishay MOSFET
The Vishay surface mount N-channel MOSFET is a new age product with a drain-source resistance of 126mohm at a gate-source voltage of 10V. It has a maximum gate-source voltage of 20V and drain-source voltage of 100V. The MOSFET has a minimum and a maximum driving voltage of 4.5V and 10V respectively. It has continuous drain current of 3.1A and maximum power dissipation of 2.5W. It has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.
Features and Benefits
• Halogen free
• Lead (Pb) free
• Operating temperature ranges between -55°C and 150°C
• TrenchFET power MOSFET
• Lead (Pb) free
• Operating temperature ranges between -55°C and 150°C
• TrenchFET power MOSFET
Applications
• Boost converters
• DC/DC converters
• LED backlighting in LCD TVs
• Load switch
• Power management for mobile computing
• DC/DC converters
• LED backlighting in LCD TVs
• Load switch
• Power management for mobile computing
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• Rg tested
• UIS tested
• BS EN 61340-5-1:2007
• Rg tested
• UIS tested
