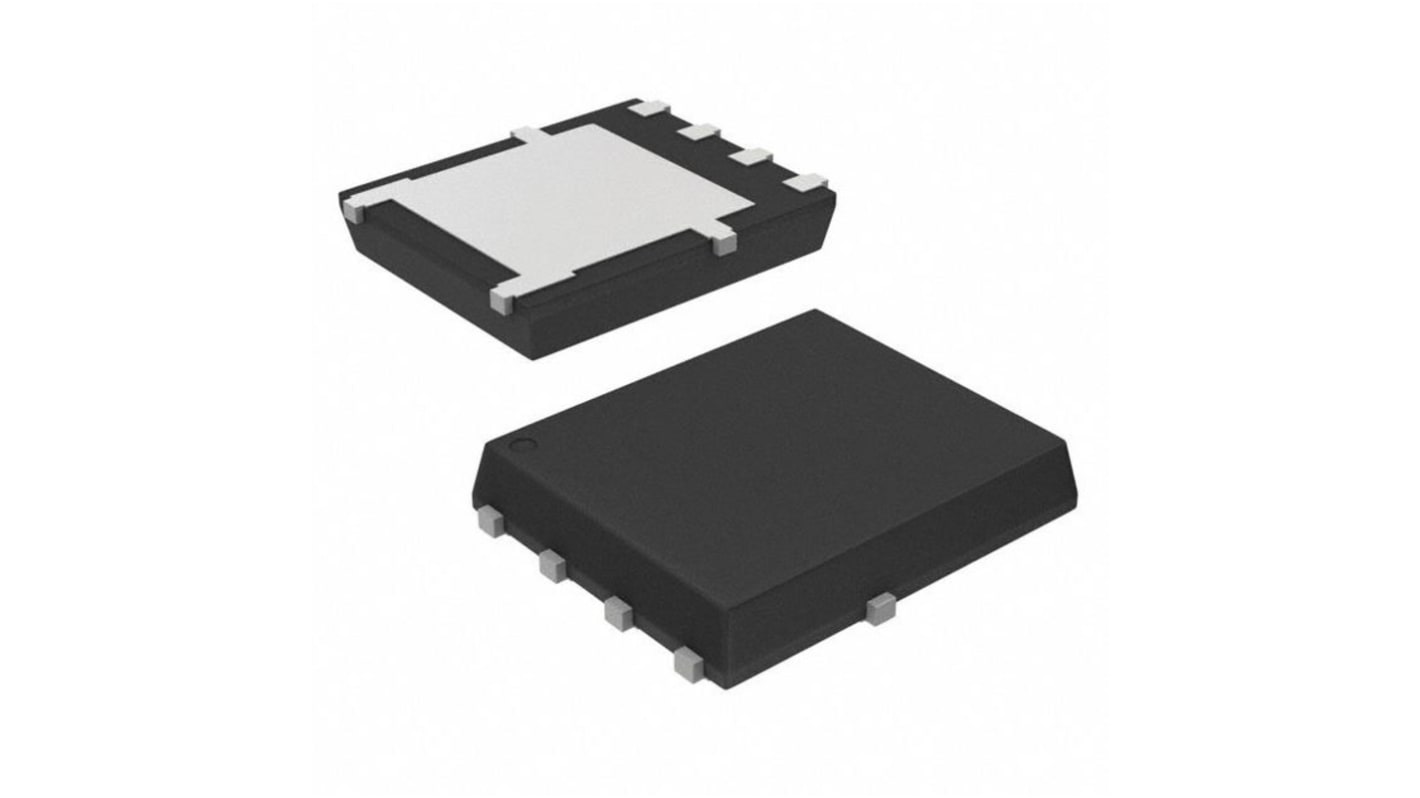

onsemi NTMFS6H818N Type N-Channel MOSFET, 123 A, 80 V Enhancement, 5-Pin DFN NTMFS6H818NT1G
- RS Stock No.:
- 178-4431
- Mfr. Part No.:
- NTMFS6H818NT1G
- Brand:
- onsemi
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 1500)
£0.694
(exc. VAT)
£0.833
(inc. VAT)
- RS Stock No.:
- 178-4431
- Mfr. Part No.:
- NTMFS6H818NT1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 123A | |
| Maximum Drain Source Voltage Vds | 80V | |
| Package Type | DFN | |
| Series | NTMFS6H818N | |
| Mount Type | Surface | |
| Pin Count | 5 | |
| Maximum Drain Source Resistance Rds | 3.7mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 1.2V | |
| Maximum Power Dissipation Pd | 3.8W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 46nC | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Length | 5.1mm | |
| Width | 6.1 mm | |
| Height | 1.05mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 123A | ||
Maximum Drain Source Voltage Vds 80V | ||
Package Type DFN | ||
Series NTMFS6H818N | ||
Mount Type Surface | ||
Pin Count 5 | ||
Maximum Drain Source Resistance Rds 3.7mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 1.2V | ||
Maximum Power Dissipation Pd 3.8W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 46nC | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Length 5.1mm | ||
Width 6.1 mm | ||
Height 1.05mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
Automotive Power MOSFET in a 5x6mm flat lead package designed for compact and efficient designs and including high thermal performance.
Features
Small Footprint (5x6 mm)
Low RDS(on)
Low QG and Capacitance
Benefits
Compact Design
Minimize Conduction Losses
Minimize Driver Losses
Applications
Switching power supplies
Power switches (High Side Driver, Low Side Driver, H-
Bridges etc.)
48V systems
Battery Management and Protection
End Products
Motor Control
DC/DC converter
Load Switch
Battery Packs and ESS
