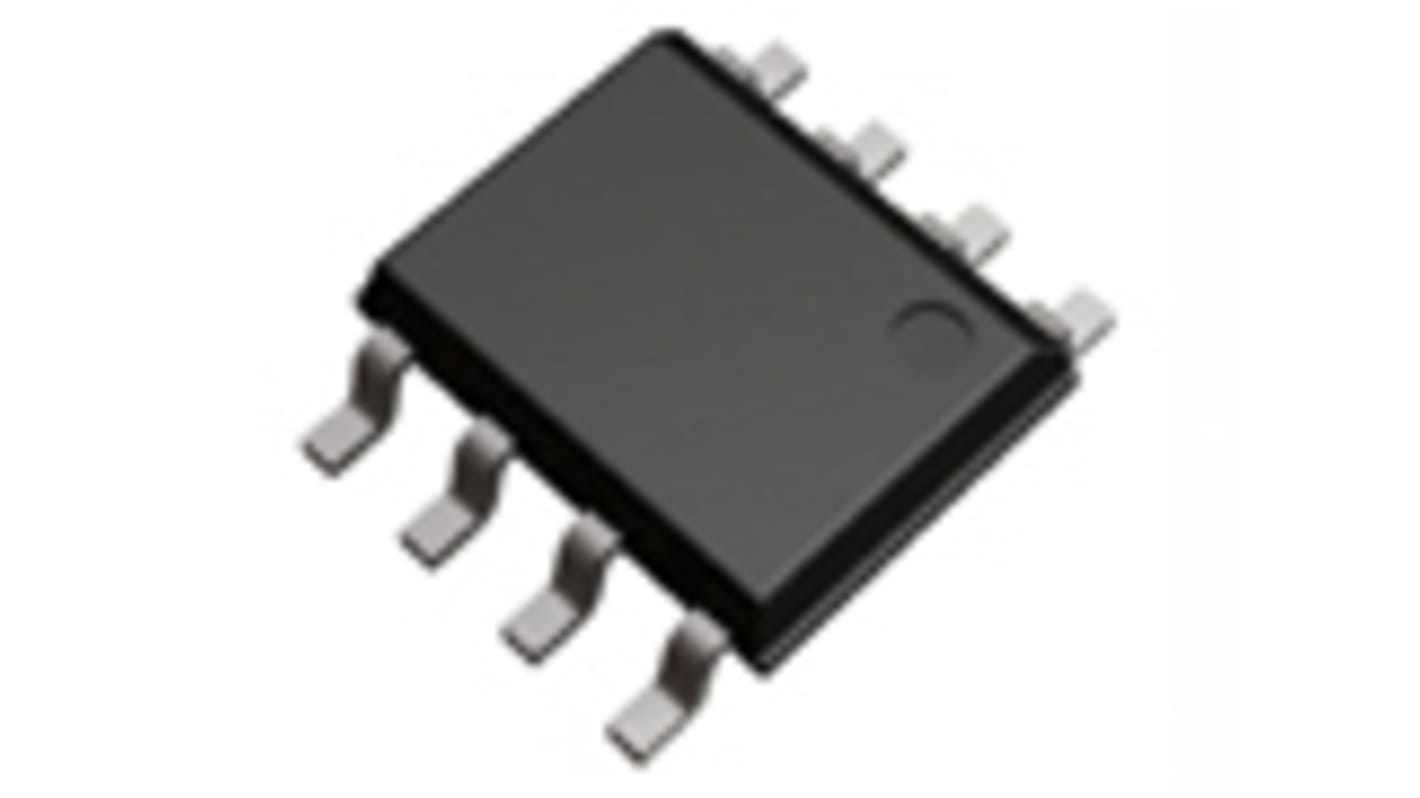

ROHM SH8MA4 Dual N/P-Channel MOSFET, 9 A, 30 V, 8-Pin SOP SH8MA4TB1
- RS Stock No.:
- 177-6205
- Mfr. Part No.:
- SH8MA4TB1
- Brand:
- ROHM
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 177-6205
- Mfr. Part No.:
- SH8MA4TB1
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Channel Type | N, P | |
| Maximum Continuous Drain Current | 9 A | |
| Maximum Drain Source Voltage | 30 V | |
| Series | SH8MA4 | |
| Package Type | SOP | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 21.4 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2V | |
| Minimum Gate Threshold Voltage | 1V | |
| Maximum Power Dissipation | 3 W | |
| Maximum Gate Source Voltage | ±20 V | |
| Number of Elements per Chip | 2 | |
| Maximum Operating Temperature | +150 °C | |
| Typical Gate Charge @ Vgs | 15.5 nC @ 10 V (Tr1), 19.6 nC @ 10 V (Tr2) | |
| Length | 5.2mm | |
| Width | 4mm | |
| Minimum Operating Temperature | -55 °C | |
| Height | 1.6mm | |
| Forward Diode Voltage | 1.2V | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Channel Type N, P | ||
Maximum Continuous Drain Current 9 A | ||
Maximum Drain Source Voltage 30 V | ||
Series SH8MA4 | ||
Package Type SOP | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 21.4 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2V | ||
Minimum Gate Threshold Voltage 1V | ||
Maximum Power Dissipation 3 W | ||
Maximum Gate Source Voltage ±20 V | ||
Number of Elements per Chip 2 | ||
Maximum Operating Temperature +150 °C | ||
Typical Gate Charge @ Vgs 15.5 nC @ 10 V (Tr1), 19.6 nC @ 10 V (Tr2) | ||
Length 5.2mm | ||
Width 4mm | ||
Minimum Operating Temperature -55 °C | ||
Height 1.6mm | ||
Forward Diode Voltage 1.2V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TH
SH8MA4TB1 is low on-resistance and small surface mount package MOSFET. It is suitable for switching.
Low on - resistance.
Small Surface Mount Package (SOP8).
Pb-free lead plating
Halogen Free.
Small Surface Mount Package (SOP8).
Pb-free lead plating
Halogen Free.
