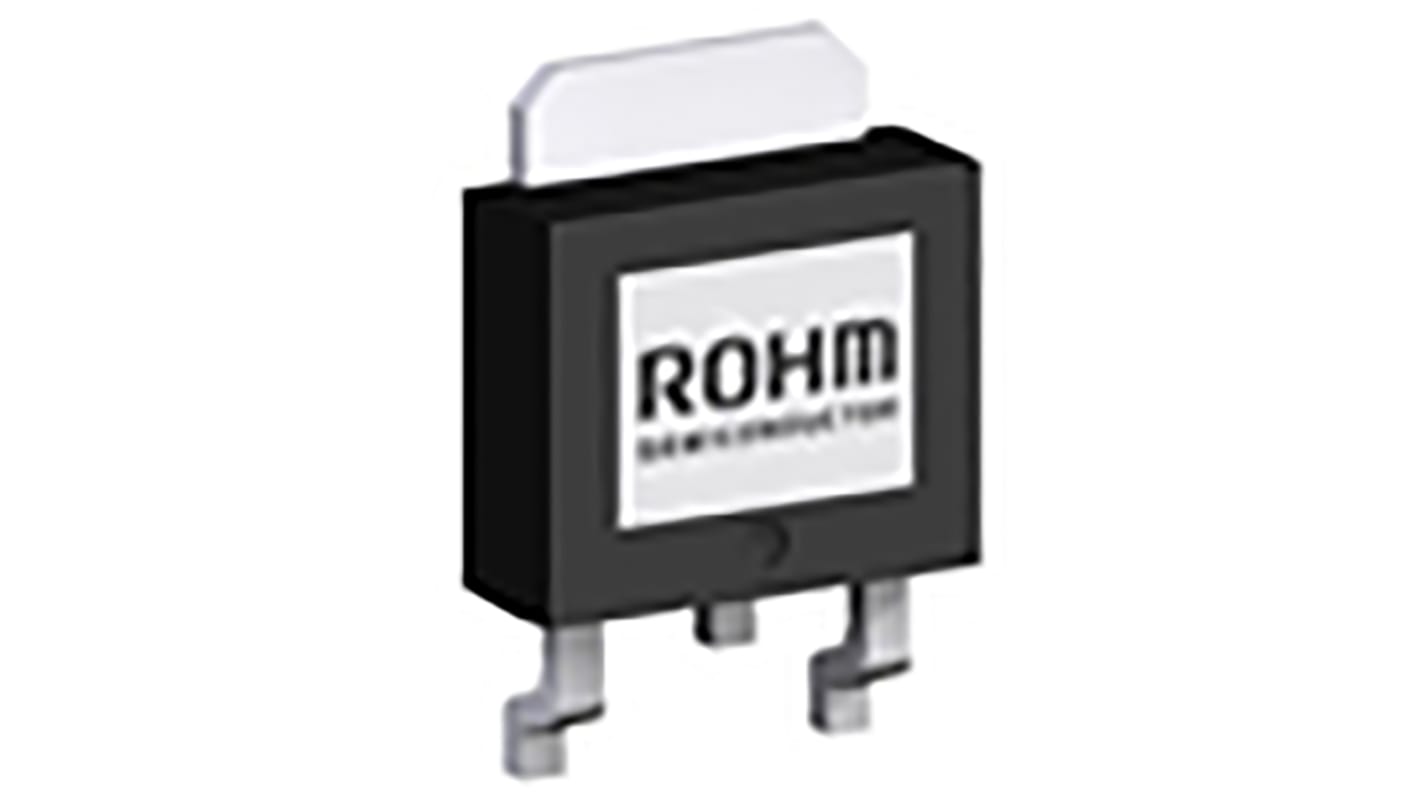

ROHM RD3G500GN N-Channel MOSFET, 50 A, 40 V, 3-Pin DPAK RD3G500GNTL

View all MOSFETs

Subtotal (1 reel of 2500 units)*

£1,042.50

(exc. VAT)

£1,250.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.417£1,042.50

*price indicative

RS Stock No.:
172-0384
Mfr. Part No.:
RD3G500GNTL
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Channel Type

N

Maximum Continuous Drain Current

50 A

Maximum Drain Source Voltage

40 V

Package Type

DPAK (TO-252)

Series

RD3G500GN

Mounting Type

Surface Mount

Pin Count

3

Maximum Drain Source Resistance

6.3 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

2.5V

Minimum Gate Threshold Voltage

1V

Maximum Power Dissipation

35 W

Transistor Configuration

Single

Maximum Gate Source Voltage

±20 V

Width

6.4mm

Number of Elements per Chip

1

Length

6.8mm

Typical Gate Charge @ Vgs

31 nC @ 10 V

Maximum Operating Temperature

+150 °C

Height

2.3mm

Forward Diode Voltage

1.2V

Minimum Operating Temperature

-55 °C

RD3G500GN is the low on - resistance MOSFET for switching application.

Low on - resistance
High power package (TO-252)
Pb-free lead plating
Halogen free
