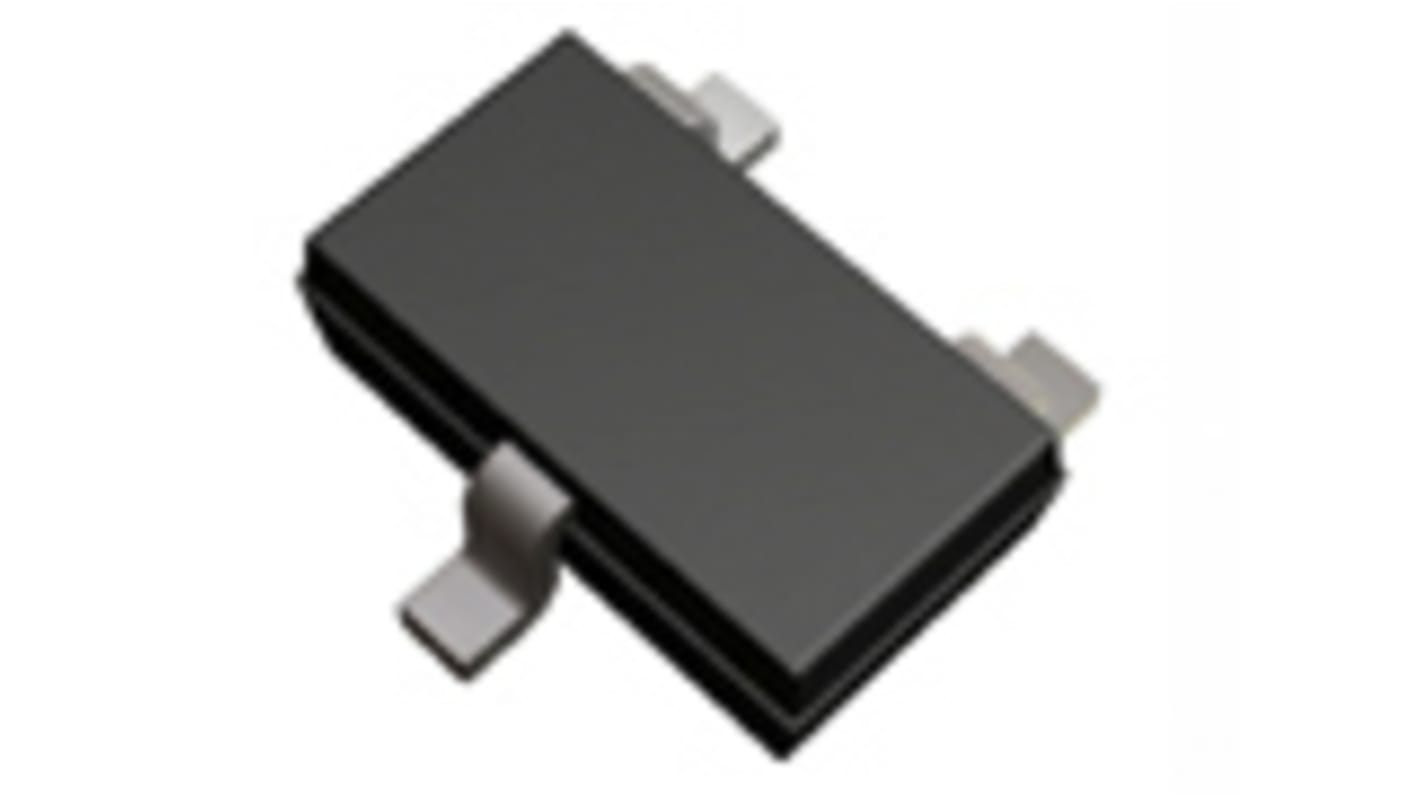

ROHM RQ5C035BC Type P-Channel MOSFET, 3.5 A, 20 V Enhancement, 3-Pin TSMT-3 RQ5C035BCTCL
- RS Stock No.:
- 171-9927
- Mfr. Part No.:
- RQ5C035BCTCL
- Brand:
- ROHM
Subtotal (1 pack of 100 units)*
£19.00
(exc. VAT)
£23.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2,800 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £0.19 | £19.00 |
*price indicative
- RS Stock No.:
- 171-9927
- Mfr. Part No.:
- RQ5C035BCTCL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | MOSFET | |
| Channel Type | Type P | |
| Maximum Continuous Drain Current Id | 3.5A | |
| Maximum Drain Source Voltage Vds | 20V | |
| Series | RQ5C035BC | |
| Package Type | TSMT-3 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 135mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 6.5nC | |
| Forward Voltage Vf | -1.2V | |
| Maximum Gate Source Voltage Vgs | 12 V | |
| Maximum Power Dissipation Pd | 1W | |
| Maximum Operating Temperature | 150°C | |
| Length | 3mm | |
| Standards/Approvals | No | |
| Width | 1.8 mm | |
| Height | 0.95mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type MOSFET | ||
Channel Type Type P | ||
Maximum Continuous Drain Current Id 3.5A | ||
Maximum Drain Source Voltage Vds 20V | ||
Series RQ5C035BC | ||
Package Type TSMT-3 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 135mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 6.5nC | ||
Forward Voltage Vf -1.2V | ||
Maximum Gate Source Voltage Vgs 12 V | ||
Maximum Power Dissipation Pd 1W | ||
Maximum Operating Temperature 150°C | ||
Length 3mm | ||
Standards/Approvals No | ||
Width 1.8 mm | ||
Height 0.95mm | ||
Automotive Standard No | ||
The small surface mount package RQ5C035BC is suitable for load switch.
Low on -resistance.
Small Surface Mount Package(TSMT3).
Pb-free lead plating.
Halogen Free.
