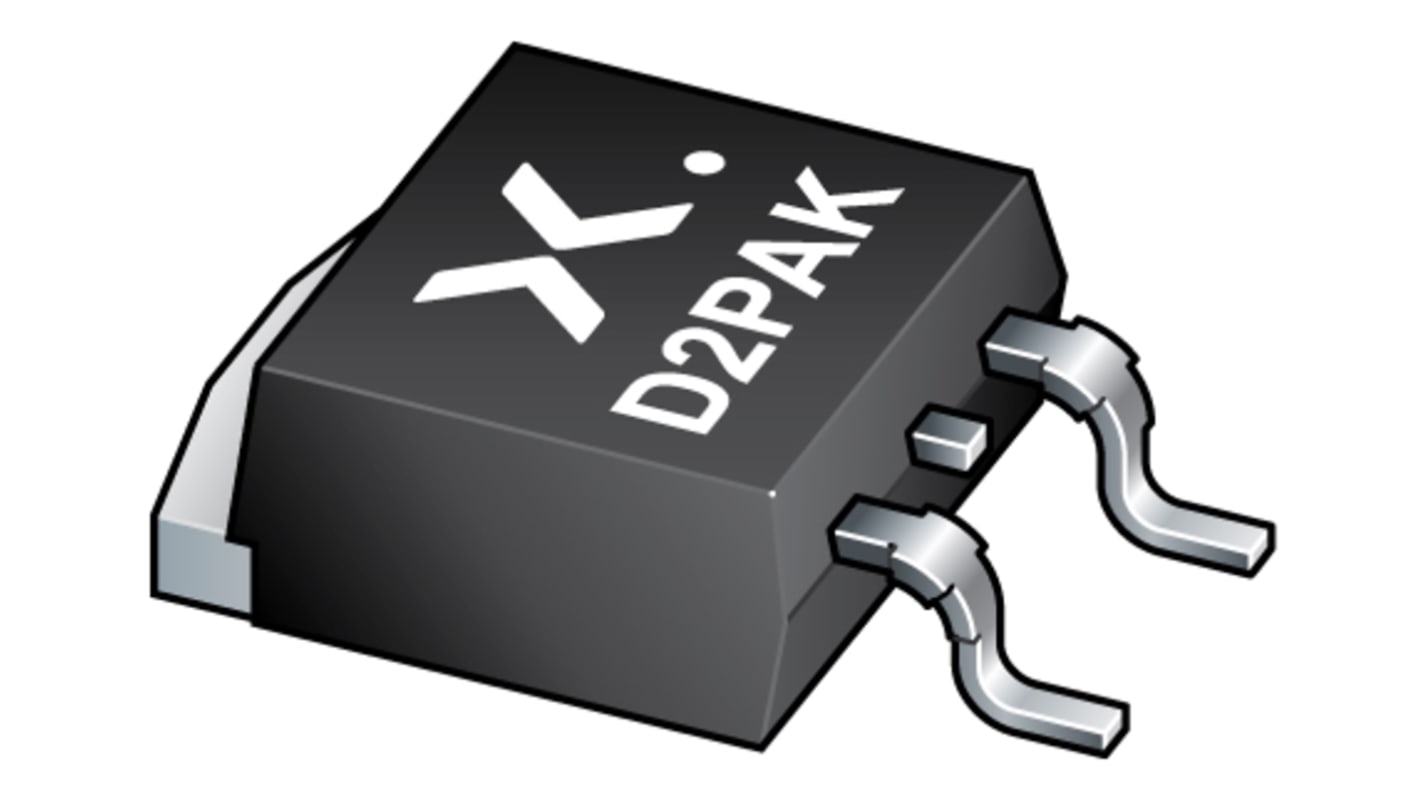

Nexperia BUK7610 N-Channel MOSFET, 122 A, 55 V, 3-Pin D2PAK BUK7610-55AL,118
- RS Stock No.:
- 170-4873
- Mfr. Part No.:
- BUK7610-55AL,118
- Brand:
- Nexperia
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 170-4873
- Mfr. Part No.:
- BUK7610-55AL,118
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 122 A | |
| Maximum Drain Source Voltage | 55 V | |
| Package Type | D2PAK (TO-263) | |
| Series | BUK7610 | |
| Mounting Type | Surface Mount | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 20 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 4.4V | |
| Minimum Gate Threshold Voltage | 1V | |
| Maximum Power Dissipation | 300 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | 20 V | |
| Width | 11mm | |
| Number of Elements per Chip | 1 | |
| Length | 10.3mm | |
| Typical Gate Charge @ Vgs | 124 nC @ 10 V | |
| Maximum Operating Temperature | +175 °C | |
| Automotive Standard | AEC-Q101 | |
| Height | 4.5mm | |
| Minimum Operating Temperature | -55 °C | |
Select all | ||
|---|---|---|
Brand Nexperia | ||
Channel Type N | ||
Maximum Continuous Drain Current 122 A | ||
Maximum Drain Source Voltage 55 V | ||
Package Type D2PAK (TO-263) | ||
Series BUK7610 | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 20 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 4.4V | ||
Minimum Gate Threshold Voltage 1V | ||
Maximum Power Dissipation 300 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage 20 V | ||
Width 11mm | ||
Number of Elements per Chip 1 | ||
Length 10.3mm | ||
Typical Gate Charge @ Vgs 124 nC @ 10 V | ||
Maximum Operating Temperature +175 °C | ||
Automotive Standard AEC-Q101 | ||
Height 4.5mm | ||
Minimum Operating Temperature -55 °C | ||
- COO (Country of Origin):
- PH
From driving a simple lamp to the sophisticated needs of power control in engine, body or chassis applications, Nexperia power semiconductors can provide the answer to many automotive system power problems.
Suitable for thermally demanding environments due to 175°C rating Focus MOSFET applications Electric Power Steering Engine management Integrated starter generator Transmission Control Automotive Lighting Braking (ABS) Climate control
Standard level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using TrenchMOS technology. This product has been designed for use in automotive critical applications.
Suitable for thermally demanding environments due to 175 °C rating
Suitable for use in control systems due to stable operation in linear mode
12 V and 24 V loads
Automotive systems
DC motor control
Repetitive clamped inductive switching
Suitable for use in control systems due to stable operation in linear mode
12 V and 24 V loads
Automotive systems
DC motor control
Repetitive clamped inductive switching
