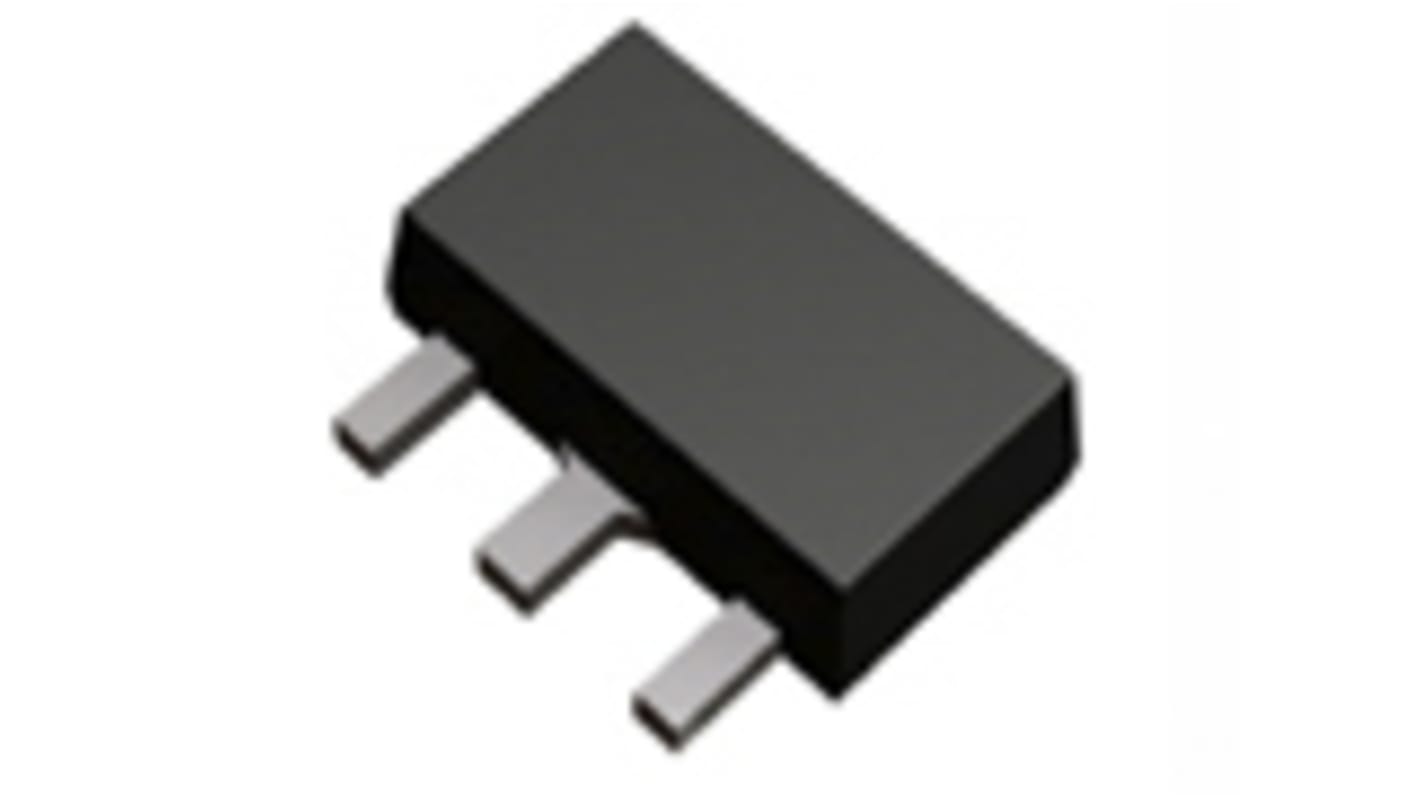

ROHM N-Channel MOSFET, 2 A, 60 V, 3-Pin SOT-89 RHP020N06T100
- RS Stock No.:
- 168-2093
- Mfr. Part No.:
- RHP020N06T100
- Brand:
- ROHM
Subtotal (1 pack of 20 units)*
£3.78
(exc. VAT)
£4.54
(inc. VAT)
FREE delivery for orders over £50.00
- Final 1,260 unit(s), ready to ship
Units | Per unit | Per Pack* |
---|---|---|
20 + | £0.189 | £3.78 |
*price indicative
- RS Stock No.:
- 168-2093
- Mfr. Part No.:
- RHP020N06T100
- Brand:
- ROHM
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Channel Type | N | |
Maximum Continuous Drain Current | 2 A | |
Maximum Drain Source Voltage | 60 V | |
Package Type | SOT-89 | |
Mounting Type | Surface Mount | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 340 mΩ | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 2.5V | |
Minimum Gate Threshold Voltage | 1V | |
Maximum Power Dissipation | 500 mW | |
Transistor Configuration | Single | |
Maximum Gate Source Voltage | ±20 V | |
Width | 2.7mm | |
Number of Elements per Chip | 1 | |
Typical Gate Charge @ Vgs | 7 nC @ 10 V | |
Maximum Operating Temperature | +150 °C | |
Length | 4.7mm | |
Height | 1.6mm | |
Minimum Operating Temperature | -55 °C | |
Forward Diode Voltage | 1.2V | |
Select all | ||
---|---|---|
Brand ROHM | ||
Channel Type N | ||
Maximum Continuous Drain Current 2 A | ||
Maximum Drain Source Voltage 60 V | ||
Package Type SOT-89 | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 340 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.5V | ||
Minimum Gate Threshold Voltage 1V | ||
Maximum Power Dissipation 500 mW | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage ±20 V | ||
Width 2.7mm | ||
Number of Elements per Chip 1 | ||
Typical Gate Charge @ Vgs 7 nC @ 10 V | ||
Maximum Operating Temperature +150 °C | ||
Length 4.7mm | ||
Height 1.6mm | ||
Minimum Operating Temperature -55 °C | ||
Forward Diode Voltage 1.2V | ||
Nch Middle-power MOSFET
Fast Switching Speed
Small Surface Mount Package
Pb Free
Applications:
Portable Data Terminal
Coin Processing Machines
Digital Multimeter: Handy Type
Motor Control: Brushless DC
PLC (Programmable Logic Controller)
AC Servo
Network Attached Storage
DVR/DVS
Motor Control: Stepper Motor
Motor Control: Brushed DC
POS (Point Of Sales System)
Electric Bike
Embedded PC
Smart Meter
Surveillance Camera
X-ray Inspection Machine for Security
Surveillance Camera for Network
Intercom / Baby Monitor
Machine Vision Camera for Industrial
Fingerprint Authentication Device
GFCI(Ground Fault Circuit Interrupter)
Digital Multimeter: Bench Type
Display for EMS
Solar Power Inverters
