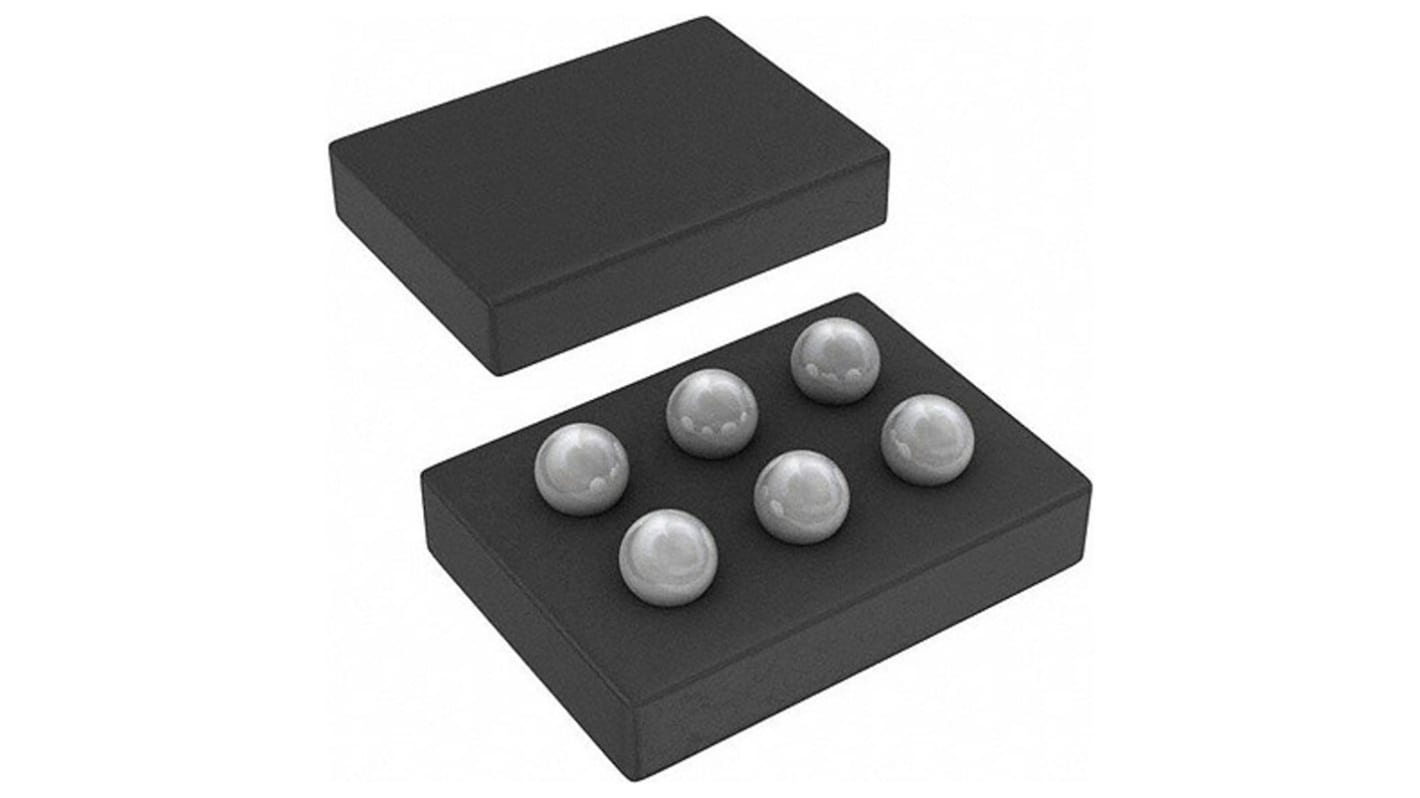

Texas Instruments NexFET P-Channel MOSFET, 3 A, 20 V, 6-Pin DSBGA CSD25304W1015T

View all MOSFETs

Subtotal (1 reel of 250 units)*

£61.00

(exc. VAT)

£73.25

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
Per Reel*
250 +£0.244£61.00

*price indicative

RS Stock No.:
162-9740
Mfr. Part No.:
CSD25304W1015T
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Channel Type

P

Maximum Continuous Drain Current

3 A

Maximum Drain Source Voltage

20 V

Series

NexFET

Package Type

DSBGA

Mounting Type

Surface Mount

Pin Count

6

Maximum Drain Source Resistance

92 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

1.15V

Minimum Gate Threshold Voltage

0.55V

Maximum Power Dissipation

750 mW

Transistor Configuration

Single

Maximum Gate Source Voltage

-8 V, +8 V

Transistor Material

Si

Typical Gate Charge @ Vgs

3.3 nC @ 4.5 V

Length

1mm

Width

1.5mm

Number of Elements per Chip

1

Maximum Operating Temperature

+150 °C

Forward Diode Voltage

1V

Minimum Operating Temperature

-55 °C

COO (Country of Origin):
PH
