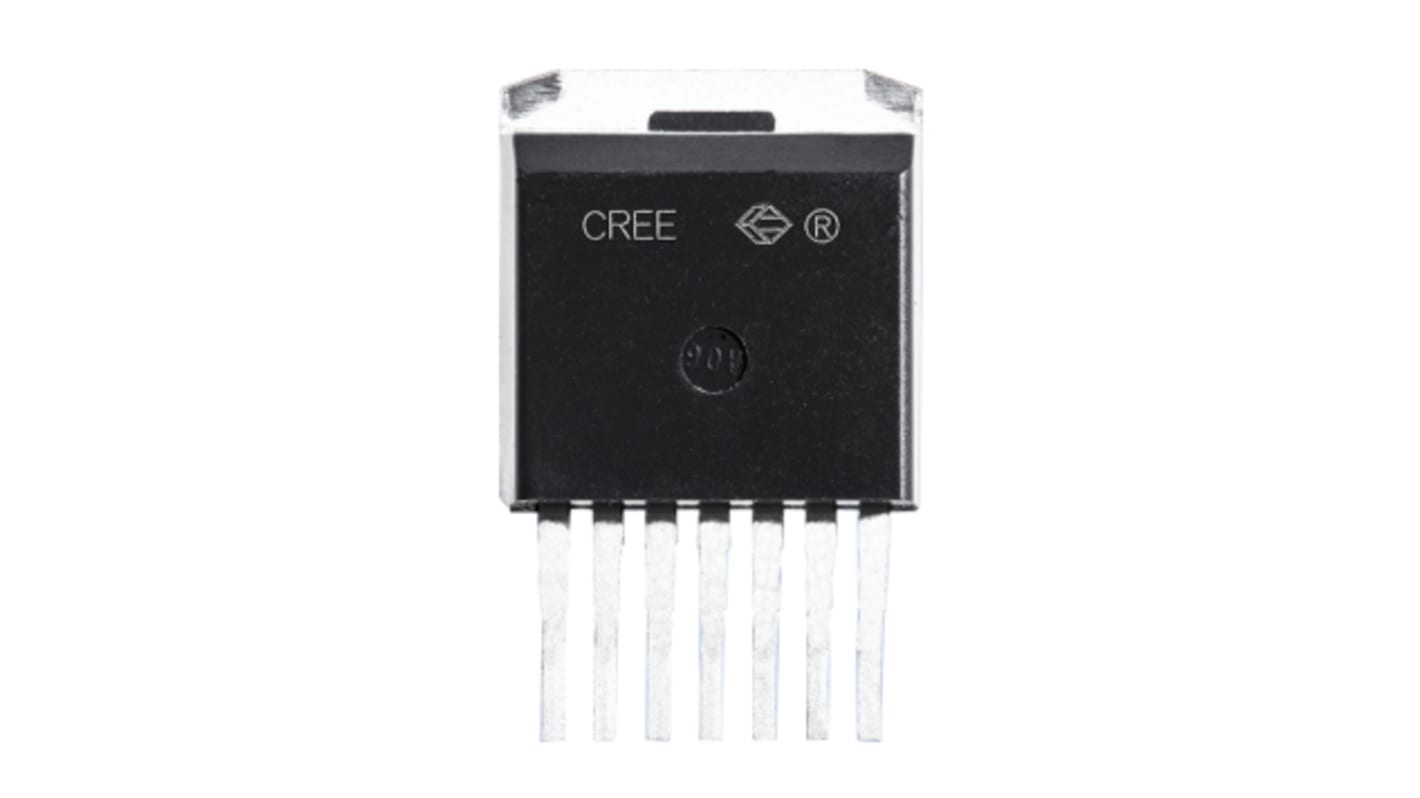

Wolfspeed C3M SiC N-Channel MOSFET, 22 A, 1000 V, 7-Pin D2PAK C3M0120100J
- RS Stock No.:
- 150-3965P
- Mfr. Part No.:
- C3M0120100J
- Brand:
- Wolfspeed
Subtotal 1 unit (supplied in a tube)*
£8.20
(exc. VAT)
£9.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 661 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.20 |
*price indicative
- RS Stock No.:
- 150-3965P
- Mfr. Part No.:
- C3M0120100J
- Brand:
- Wolfspeed
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wolfspeed | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 22 A | |
| Maximum Drain Source Voltage | 1000 V | |
| Series | C3M | |
| Package Type | TO-263-7 | |
| Mounting Type | Surface Mount | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance | 170 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3.5V | |
| Minimum Gate Threshold Voltage | 1.8V | |
| Maximum Power Dissipation | 83 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | +15 V, +9 V | |
| Width | 9.12mm | |
| Transistor Material | SiC | |
| Length | 10.23mm | |
| Maximum Operating Temperature | +150 °C | |
| Typical Gate Charge @ Vgs | 21.5 @ 4/+15 V | |
| Number of Elements per Chip | 1 | |
| Forward Diode Voltage | 4.8V | |
| Height | 4.32mm | |
| Minimum Operating Temperature | -55 °C | |
Select all | ||
|---|---|---|
Brand Wolfspeed | ||
Channel Type N | ||
Maximum Continuous Drain Current 22 A | ||
Maximum Drain Source Voltage 1000 V | ||
Series C3M | ||
Package Type TO-263-7 | ||
Mounting Type Surface Mount | ||
Pin Count 7 | ||
Maximum Drain Source Resistance 170 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.5V | ||
Minimum Gate Threshold Voltage 1.8V | ||
Maximum Power Dissipation 83 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage +15 V, +9 V | ||
Width 9.12mm | ||
Transistor Material SiC | ||
Length 10.23mm | ||
Maximum Operating Temperature +150 °C | ||
Typical Gate Charge @ Vgs 21.5 @ 4/+15 V | ||
Number of Elements per Chip 1 | ||
Forward Diode Voltage 4.8V | ||
Height 4.32mm | ||
Minimum Operating Temperature -55 °C | ||
