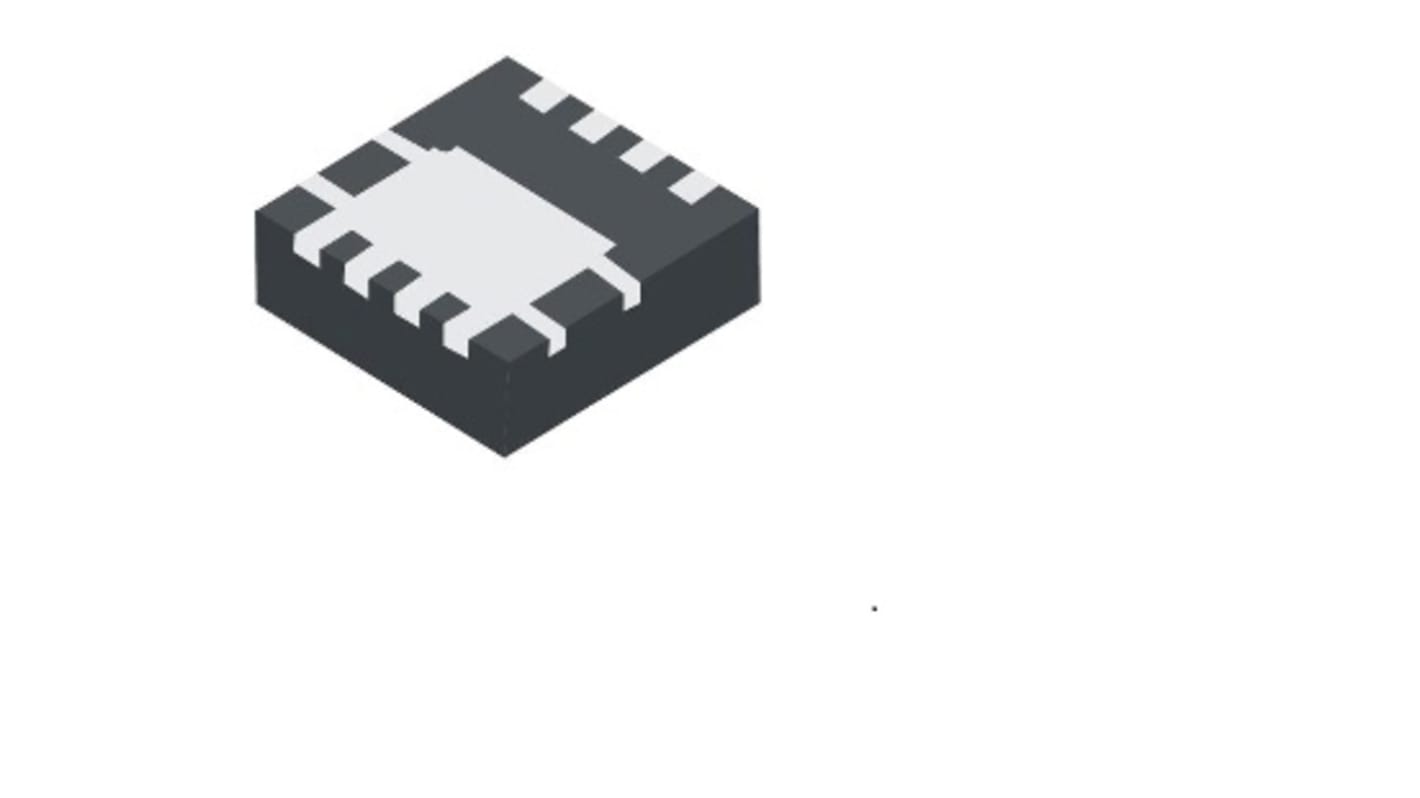

DiodesZetex DMP Type P-Channel MOSFET, 70 A, 30 V Enhancement, 8-Pin PowerDI3333 DMP3007SFG-13

View all MOSFETs

Subtotal (1 pack of 10 units)*

£4.75

(exc. VAT)

£5.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5,780 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£0.475£4.75

*price indicative

Packaging Options:
RS Stock No.:
146-4890
Mfr. Part No.:
DMP3007SFG-13
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Channel Type

Type P

Product Type

MOSFET

Maximum Continuous Drain Current Id

70A

Maximum Drain Source Voltage Vds

30V

Package Type

PowerDI3333

Series

DMP

Mount Type

Surface

Pin Count

8

Maximum Drain Source Resistance Rds

13mΩ

Channel Mode

Enhancement

Maximum Gate Source Voltage Vgs

25 V

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

64.2nC

Maximum Power Dissipation Pd

2.8W

Forward Voltage Vf

1.2V

Maximum Operating Temperature

150°C

Length

3.35mm

Width

3.35 mm

Height

0.78mm

Standards/Approvals

No

Automotive Standard

No

P-Channel MOSFET, 30V, Diodes Inc


MOSFET Transistors, Diodes Inc.
