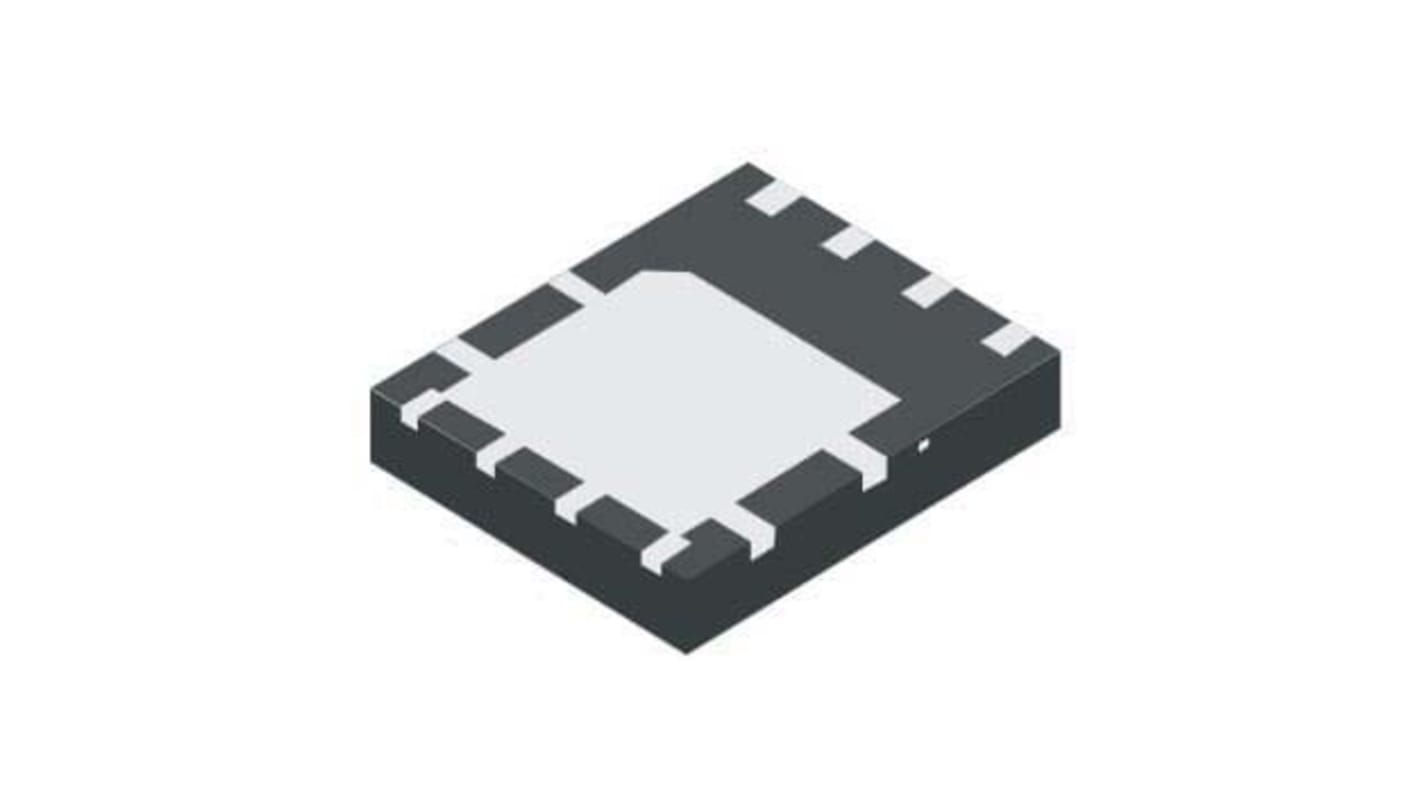

Diodes Inc DMP P-Channel MOSFET, 90 A, 30 V, 8-Pin DI5060 DMP3007SPS-13

Subtotal (1 reel of 2500 units)*

£712.50

(exc. VAT)

£855.00

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
2500 +	£0.285	£712.50

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Channel Type	P
	Maximum Continuous Drain Current	90 A
	Maximum Drain Source Voltage	30 V
	Package Type	DI5060
	Series	DMP
	Mounting Type	Surface Mount
	Pin Count	8
	Maximum Drain Source Resistance	16 mΩ
	Channel Mode	Enhancement
	Maximum Gate Threshold Voltage	3V
	Minimum Gate Threshold Voltage	1V
	Maximum Power Dissipation	2.7 W
	Transistor Configuration	Single
	Maximum Gate Source Voltage	±25 V
	Typical Gate Charge @ Vgs	64.2 nC @ 10 V
	Length	5.1mm
	Number of Elements per Chip	1
	Width	6mm
	Maximum Operating Temperature	+150 °C
	Height	1.1mm
	Forward Diode Voltage	1.2V
	Minimum Operating Temperature	-55 °C

	Select all
	Brand DiodesZetex
	Channel Type P
	Maximum Continuous Drain Current 90 A
	Maximum Drain Source Voltage 30 V
	Package Type DI5060
	Series DMP
	Mounting Type Surface Mount
	Pin Count 8
	Maximum Drain Source Resistance 16 mΩ
	Channel Mode Enhancement
	Maximum Gate Threshold Voltage 3V
	Minimum Gate Threshold Voltage 1V
	Maximum Power Dissipation 2.7 W
	Transistor Configuration Single
	Maximum Gate Source Voltage ±25 V
	Typical Gate Charge @ Vgs 64.2 nC @ 10 V
	Length 5.1mm
	Number of Elements per Chip 1
	Width 6mm
	Maximum Operating Temperature +150 °C
	Height 1.1mm
	Forward Diode Voltage 1.2V
	Minimum Operating Temperature -55 °C

MOSFET Transistors, Diodes Inc.
