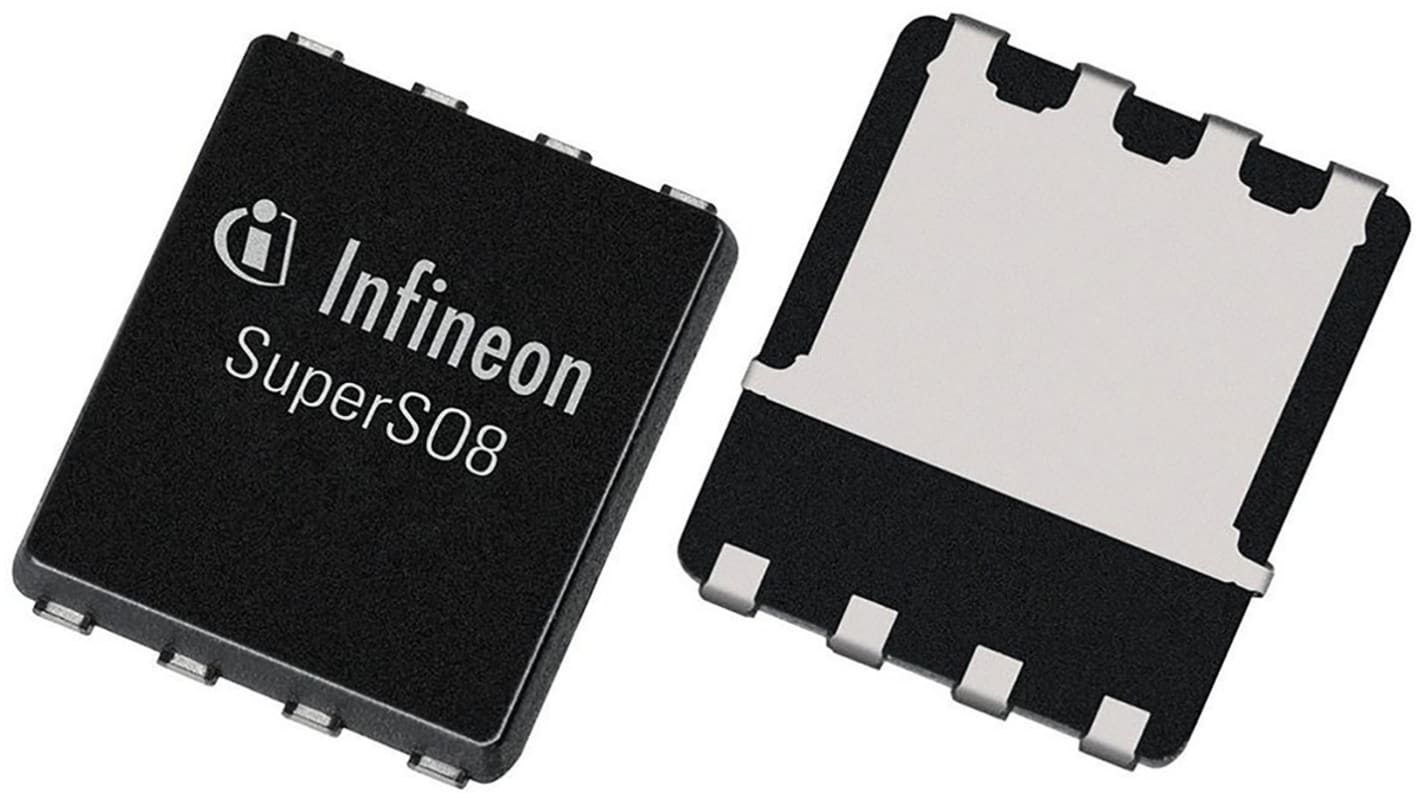

Infineon OptiMOS™ N-Channel MOSFET, 100 A, 30 V, 8-Pin TDSON BSC0901NSATMA1
- RS Stock No.:
- 133-9798
- Mfr. Part No.:
- BSC0901NSATMA1
- Brand:
- Infineon
Subtotal (1 pack of 5 units)*
£4.07
(exc. VAT)
£4.885
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 55 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.814 | £4.07 |
*price indicative
- RS Stock No.:
- 133-9798
- Mfr. Part No.:
- BSC0901NSATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 100 A | |
| Maximum Drain Source Voltage | 30 V | |
| Package Type | TDSON | |
| Series | OptiMOS™ | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 2.4 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2V | |
| Minimum Gate Threshold Voltage | 1.2V | |
| Maximum Power Dissipation | 69 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | +20 V | |
| Width | 6.35mm | |
| Number of Elements per Chip | 1 | |
| Typical Gate Charge @ Vgs | 44 nC @ 10 V | |
| Maximum Operating Temperature | +150 °C | |
| Length | 5.35mm | |
| Height | 1.1mm | |
| Minimum Operating Temperature | -55 °C | |
| Forward Diode Voltage | 1V | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 100 A | ||
Maximum Drain Source Voltage 30 V | ||
Package Type TDSON | ||
Series OptiMOS™ | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 2.4 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2V | ||
Minimum Gate Threshold Voltage 1.2V | ||
Maximum Power Dissipation 69 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage +20 V | ||
Width 6.35mm | ||
Number of Elements per Chip 1 | ||
Typical Gate Charge @ Vgs 44 nC @ 10 V | ||
Maximum Operating Temperature +150 °C | ||
Length 5.35mm | ||
Height 1.1mm | ||
Minimum Operating Temperature -55 °C | ||
Forward Diode Voltage 1V | ||
- COO (Country of Origin):
- MY
Infineon OptiMOS™3 Power MOSFETs, up to 40V
OptiMOS™ products are available in high performance packages to tackle the most challenging applications giving full flexibility in limited spaces. These Infineon products are designed to meet and exceed the energy efficiency and power density requirements of the sharpened next generation voltage regulation standards in computing applications.
Fast switching MOSFET for SMPS
Optimized technology for DC/DC converters
Qualified according to JEDEC1) for target applications
N-channel, logic level
Excellent gate charge x R DS(on) product (FOM)
Very low on-resistance R DS(on)
Pb-free plating
Optimized technology for DC/DC converters
Qualified according to JEDEC1) for target applications
N-channel, logic level
Excellent gate charge x R DS(on) product (FOM)
Very low on-resistance R DS(on)
Pb-free plating
MOSFET Transistors, Infineon
Infineon offers a large and comprehensive portfolio of MOSFET devices which includes the CoolMOS, OptiMOS and StrongIRFET families. They deliver best-in-class performance to bring more efficiency, power density and cost effectiveness. Designs requiring high quality and enhanced protection features benefit from AEC-Q101 industry standards Automotive qualified MOSFETs.
