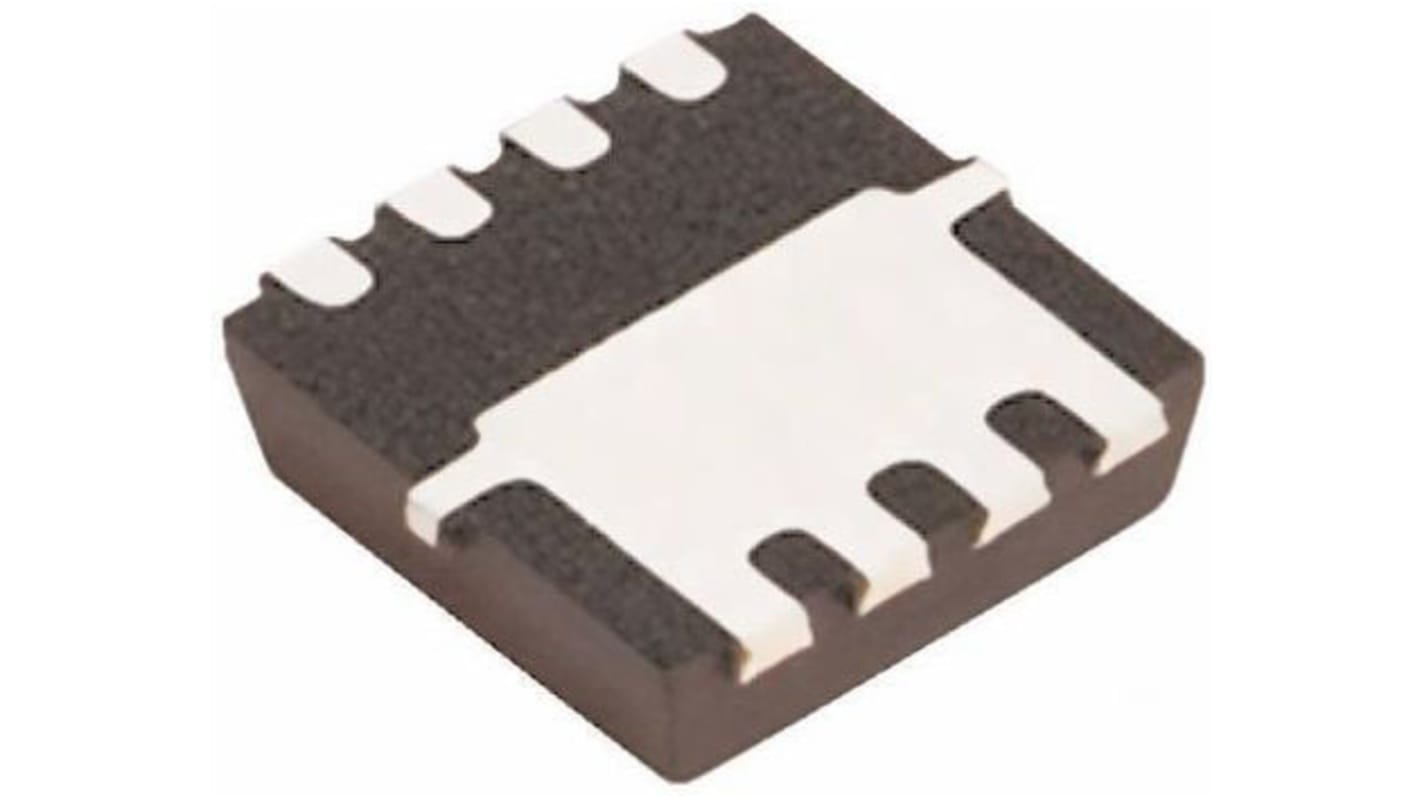

ROHM RQ3L050GN N-Channel MOSFET, 12 A, 60 V, 8-Pin HSMT RQ3L050GNTB
- RS Stock No.:
- 133-3297
- Mfr. Part No.:
- RQ3L050GNTB
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 133-3297
- Mfr. Part No.:
- RQ3L050GNTB
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Channel Type | N | |
Maximum Continuous Drain Current | 12 A | |
Maximum Drain Source Voltage | 60 V | |
Package Type | HSMT | |
Series | RQ3L050GN | |
Mounting Type | Surface Mount | |
Pin Count | 8 | |
Maximum Drain Source Resistance | 86 mΩ | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 2.5V | |
Minimum Gate Threshold Voltage | 1V | |
Maximum Power Dissipation | 14.8 W | |
Transistor Configuration | Single | |
Maximum Gate Source Voltage | -20 V, +20 V | |
Number of Elements per Chip | 1 | |
Width | 3.1mm | |
Length | 3.3mm | |
Typical Gate Charge @ Vgs | 5.3 nC @ 10 V | |
Maximum Operating Temperature | +150 °C | |
Height | 0.85mm | |
Forward Diode Voltage | 1.2V | |
Select all | ||
---|---|---|
Brand ROHM | ||
Channel Type N | ||
Maximum Continuous Drain Current 12 A | ||
Maximum Drain Source Voltage 60 V | ||
Package Type HSMT | ||
Series RQ3L050GN | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 86 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.5V | ||
Minimum Gate Threshold Voltage 1V | ||
Maximum Power Dissipation 14.8 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -20 V, +20 V | ||
Number of Elements per Chip 1 | ||
Width 3.1mm | ||
Length 3.3mm | ||
Typical Gate Charge @ Vgs 5.3 nC @ 10 V | ||
Maximum Operating Temperature +150 °C | ||
Height 0.85mm | ||
Forward Diode Voltage 1.2V | ||
N-Channel MOSFET Transistors, ROHM
MOSFET Transistors, ROHM Semiconductor
