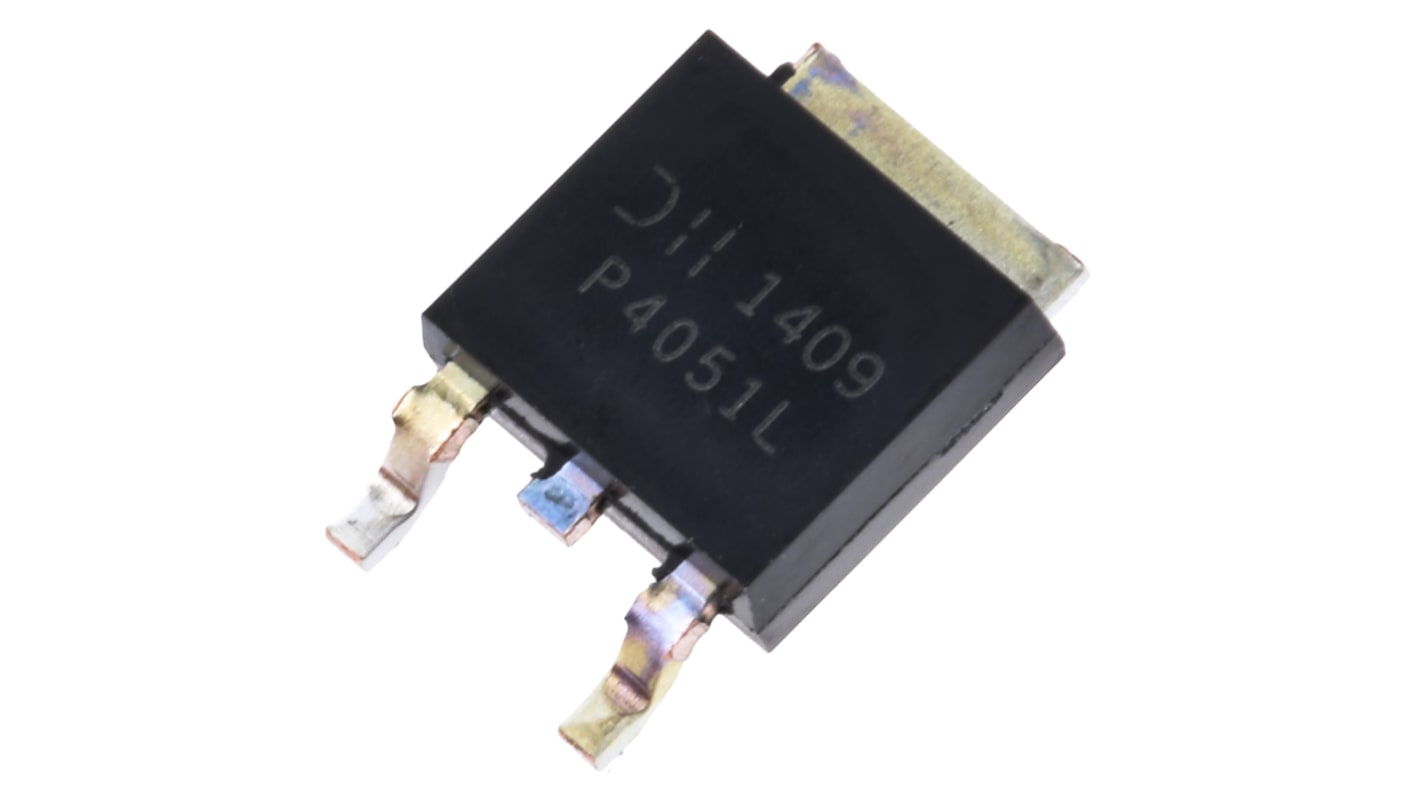

Diodes Inc P-Channel MOSFET, 10.5 A, 40 V, 3-Pin DPAK DMP4051LK3-13
- RS Stock No.:
- 121-9549
- Mfr. Part No.:
- DMP4051LK3-13
- Brand:
- DiodesZetex
Subtotal (1 reel of 2500 units)*
£387.50
(exc. VAT)
£465.00
(inc. VAT)
FREE delivery for orders over £50.00
- 2,500 unit(s) ready to ship
- Plus 999,995,000 unit(s) shipping from 15 January 2026
Units | Per unit | Per Reel* |
---|---|---|
2500 + | £0.155 | £387.50 |
*price indicative
- RS Stock No.:
- 121-9549
- Mfr. Part No.:
- DMP4051LK3-13
- Brand:
- DiodesZetex
Select all | Attribute | Value |
---|---|---|
Brand | DiodesZetex | |
Channel Type | P | |
Maximum Continuous Drain Current | 10.5 A | |
Maximum Drain Source Voltage | 40 V | |
Package Type | DPAK (TO-252) | |
Mounting Type | Surface Mount | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 85 mΩ | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 3V | |
Maximum Power Dissipation | 8.9 W | |
Transistor Configuration | Single | |
Maximum Gate Source Voltage | -20 V, +20 V | |
Number of Elements per Chip | 1 | |
Maximum Operating Temperature | +150 °C | |
Transistor Material | Si | |
Width | 6.2mm | |
Length | 6.7mm | |
Typical Gate Charge @ Vgs | 14 nC @ 10 V | |
Height | 2.39mm | |
Minimum Operating Temperature | -55 °C | |
Select all | ||
---|---|---|
Brand DiodesZetex | ||
Channel Type P | ||
Maximum Continuous Drain Current 10.5 A | ||
Maximum Drain Source Voltage 40 V | ||
Package Type DPAK (TO-252) | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 85 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3V | ||
Maximum Power Dissipation 8.9 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -20 V, +20 V | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature +150 °C | ||
Transistor Material Si | ||
Width 6.2mm | ||
Length 6.7mm | ||
Typical Gate Charge @ Vgs 14 nC @ 10 V | ||
Height 2.39mm | ||
Minimum Operating Temperature -55 °C | ||
- COO (Country of Origin):
- CN
P-Channel MOSFET, 40V to 90V, Diodes Inc
