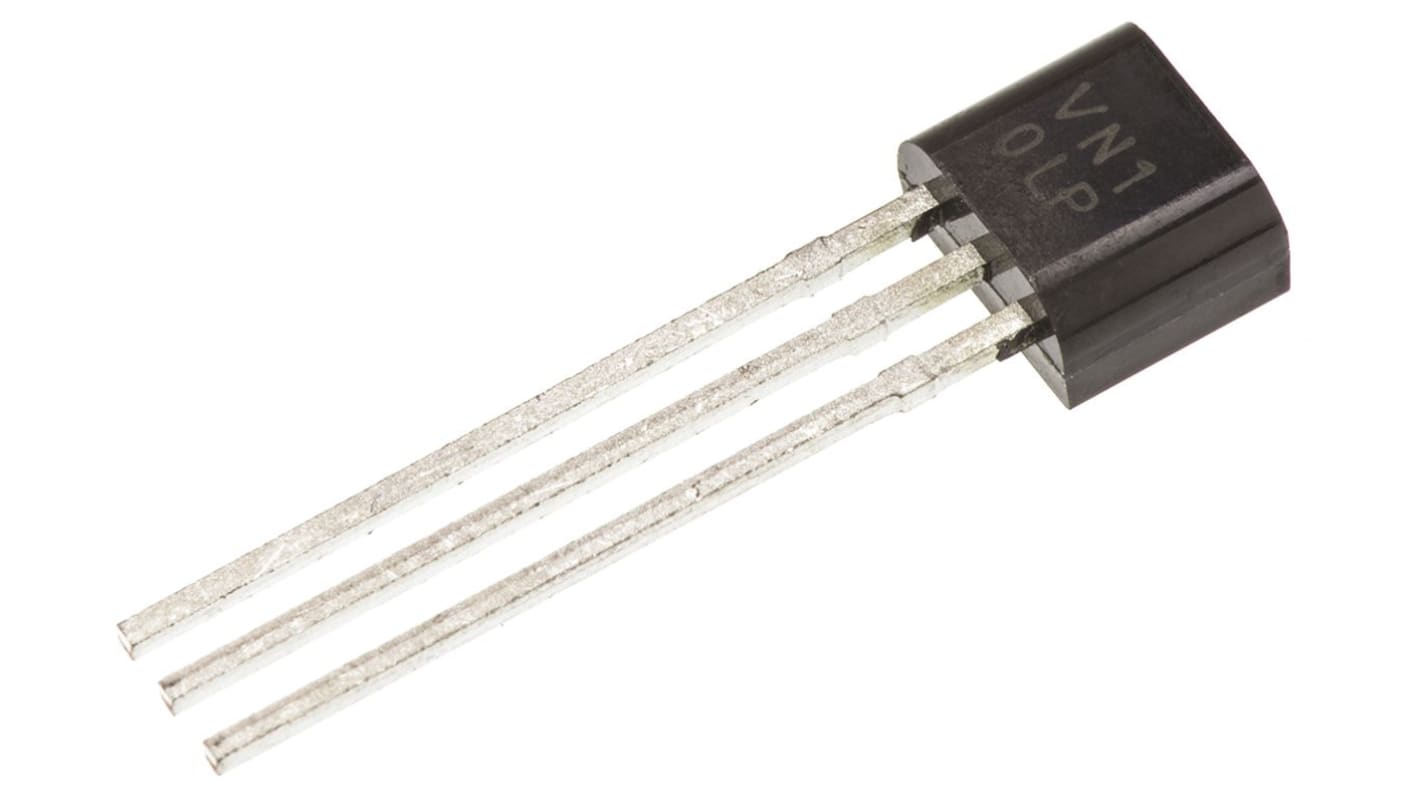

Diodes Inc N-Channel MOSFET, 270 mA, 60 V, 3-Pin E-Line VN10LP
- RS Stock No.:
- 841-277
- Mfr. Part No.:
- VN10LP
- Brand:
- DiodesZetex
Subtotal (1 pack of 5 units)*
£4.22
(exc. VAT)
£5.065
(inc. VAT)
FREE delivery for orders over £50.00
- 1,170 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
- Plus 21,340 unit(s) shipping from 08 October 2025
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £0.844 | £4.22 |
50 - 195 | £0.50 | £2.50 |
200 - 995 | £0.436 | £2.18 |
1000 - 1995 | £0.37 | £1.85 |
2000 + | £0.312 | £1.56 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£0.714
(exc. VAT)
£0.857
(inc. VAT)
- RS Stock No.:
- 841-277
- Mfr. Part No.:
- VN10LP
- Brand:
- DiodesZetex
Select all | Attribute | Value |
---|---|---|
Brand | DiodesZetex | |
Channel Type | N | |
Maximum Continuous Drain Current | 270 mA | |
Maximum Drain Source Voltage | 60 V | |
Package Type | E-Line | |
Mounting Type | Through Hole | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 5 Ω | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 2.5V | |
Maximum Power Dissipation | 625 mW | |
Transistor Configuration | Single | |
Maximum Gate Source Voltage | -20 V, +20 V | |
Length | 4.77mm | |
Number of Elements per Chip | 1 | |
Maximum Operating Temperature | +150 °C | |
Width | 2.41mm | |
Transistor Material | Si | |
Height | 4.01mm | |
Minimum Operating Temperature | -55 °C | |
Select all | ||
---|---|---|
Brand DiodesZetex | ||
Channel Type N | ||
Maximum Continuous Drain Current 270 mA | ||
Maximum Drain Source Voltage 60 V | ||
Package Type E-Line | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 5 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.5V | ||
Maximum Power Dissipation 625 mW | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -20 V, +20 V | ||
Length 4.77mm | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature +150 °C | ||
Width 2.41mm | ||
Transistor Material Si | ||
Height 4.01mm | ||
Minimum Operating Temperature -55 °C | ||
